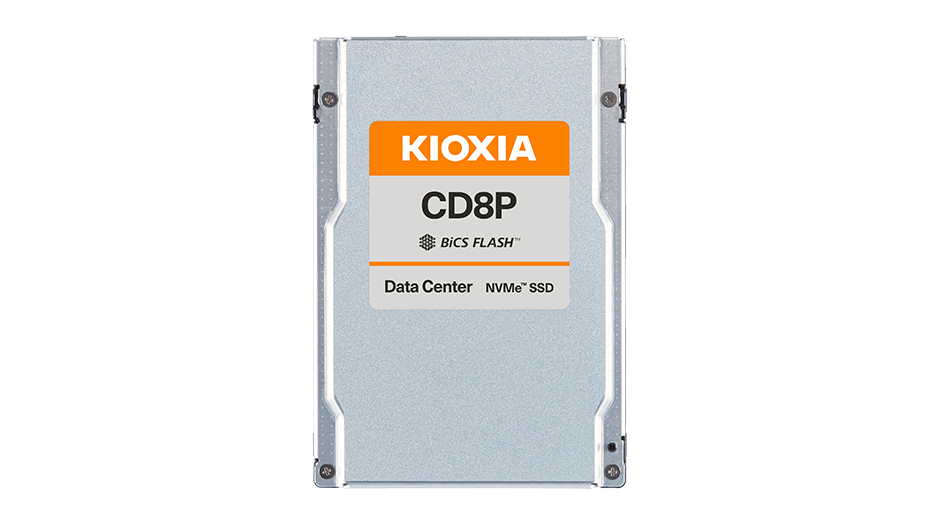

Kioxia KCD81PUG1T60 CD8P-V 1.6TB PCIe Gen 5 NVMe 2.5-inch SSD

The Kioxia KCD81PUG1T60 1.6TB is a 2.5-inch NVMe PCIe Gen5 x4 solid-state drive manufactured by Kioxia as part of their CD8P-V Series. This high-performance drive features KIOXIA BiCS FLASH Generation 5 TLC 3D memory, delivers sequential read and write speeds up to 12,000 MB/s and 3,500 MB/s with random performance up to 1,600,000 IOPS read and 300,000 IOPS write, and offers 3 DWPD endurance with 2,500,000 hours MTBF reliability and built-in Power Loss Protection.

Specifications

Model Number:  KCD81PUG1T60

Brand: Kioxia

Alt Part Number(s):  KCD81PUG1T60

Product Type:  Solid State Drive

Technical Description

Brand:  Kioxia

Model: KCD81PUG1T60

Series:  CD8P-V

Capacity: 1.6 TB

Form Factor: 2.5-inch (15 mm thickness)

Interface: PCIe Gen5 x4 / NVMe

Flash Memory: KIOXIA BiCS FLASH Generation 5 TLC 3D flash memory

Endurance Rating: 3 DWPD over a 5-year period

Security Variant: Non-SED / Standard security

Sequential Read: Up to 12,000 MB/s

Sequential Write: Up to 3,500 MB/s

Random Read: Up to 1,600,000 IOPS

Random Write: Up to 300,000 IOPS

Reliability: 2,500,000 hours MTBF/MTTF with built-in Power Loss Protection (PLP)
