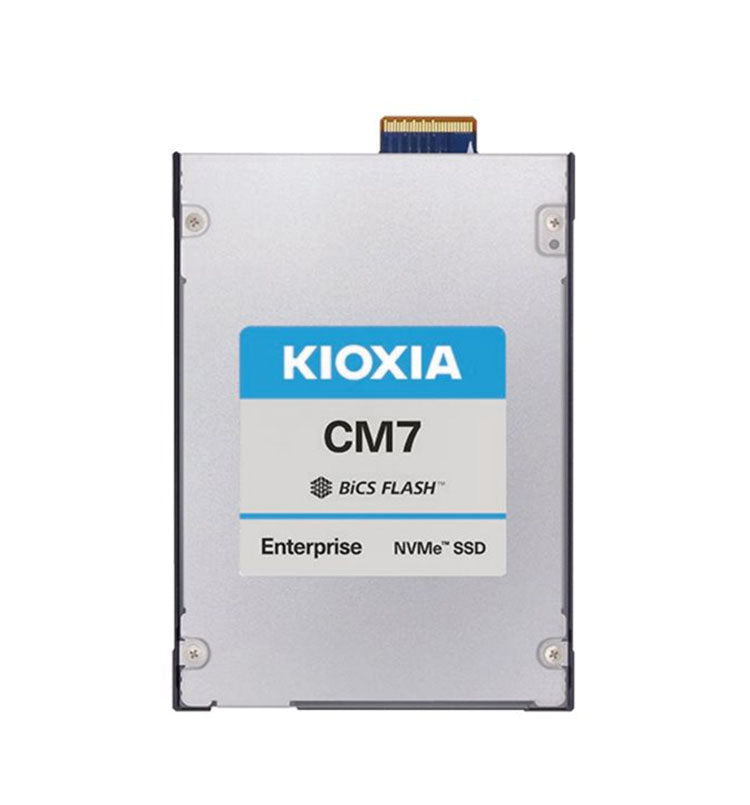

Kioxia CM7-V Series 1.6TB PCI Express 5.0 x4 E3.S Solid State Drive (SSD) - KCM7DVJE1T60

The Kioxia KCM7DVJE1T60 is the CM7-V series 1.6TB PCIe 5.0 x4 NVMe enterprise SSD in the E3.S form factor. Leveraging PCIe 5.0 bandwidth with Kioxia's BiCS FLASH 3D NAND, it delivers next-generation NVMe performance for mixed-use and write-intensive data center workloads requiring maximum throughput and low latency in the compact E3.S form factor designed for high-density storage servers.

Key Features

• 1.6TB enterprise NVMe SSD in E3.S form factor
• PCIe 5.0 x4 — next-generation NVMe bandwidth
• Kioxia BiCS FLASH 3D NAND — high-performance enterprise flash
• Mixed-use / write-intensive optimized
• E3.S form factor — high-density storage server compatible
• Kioxia enterprise SSD — proven data center reliability

Product Specifications

• Part Number: KCM7DVJE1T60
• Manufacturer: Kioxia
• OEM Status: Retail
• Model: CM7-V
• Capacity: 1.6TB
• Interface: PCIe 5.0 x4 NVMe
• Form Factor: E3.S
• NAND Type: BiCS FLASH 3D NAND
• Workload: Mixed-Use / Write-Intensive

Storage Specifications

• Capacity: 1.6TB
• Interface: PCIe 5.0 x4 NVMe
• Form Factor: E3.S (EDSFF)
• NAND: Kioxia BiCS FLASH 3D NAND

Performance Specifications

• Sequential Read: Up to 14,000 MB/s
• Sequential Write: Up to 7,000 MB/s
• MTBF: 2 million hours
• Endurance: Mixed-use / write-intensive

Use Cases

• Mixed-use and write-intensive data center NVMe storage
• AI/ML training and inference storage requiring PCIe 5.0 throughput
• High-density storage servers with E3.S drive bays
• Database and transactional workloads requiring low-latency NVMe

Compatibility

• E3.S NVMe backplanes with PCIe 5.0 x4 support
• High-density storage servers with E3.S drive bays
• Windows Server, Linux, and VMware ESXi with NVMe driver support

Frequently Asked Questions

What is E3.S form factor?

E3.S is an EDSFF (Enterprise and Data Center SSD Form Factor) standard — a compact, ruler-style SSD form factor designed for high-density storage servers. It requires an E3.S-compatible backplane and differs from U.2 and M.2 form factors.

Is PCIe 5.0 backward compatible with PCIe 4.0 slots?

Yes — PCIe 5.0 NVMe SSDs are backward compatible with PCIe 4.0 x4 slots, operating at PCIe 4.0 speeds. A PCIe 5.0 slot is required to achieve full PCIe 5.0 performance.

The Kioxia CM7-V KCM7DVJE1T60 delivers 1.6TB of PCIe 5.0 NVMe enterprise storage in the E3.S form factor — a next-generation, high-density enterprise SSD for mixed-use, AI/ML, and write-intensive data center workloads requiring maximum NVMe throughput.
