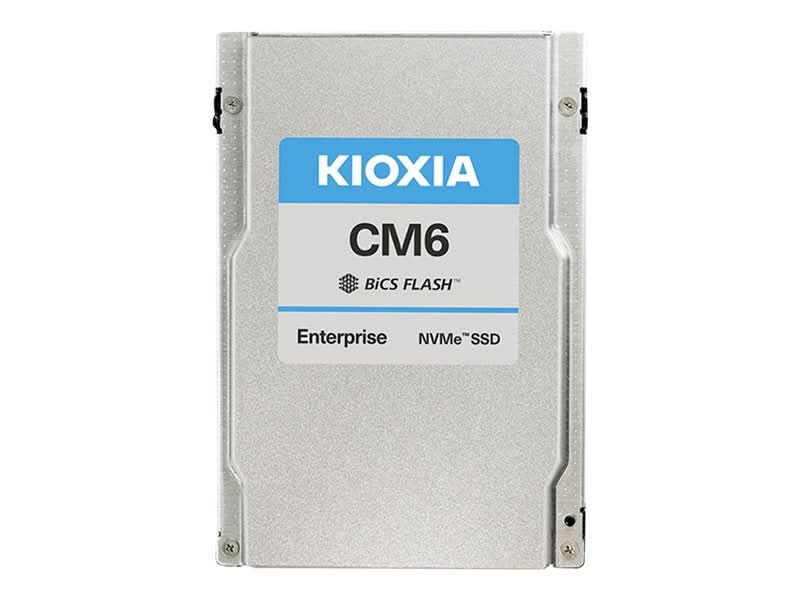

Kioxia KCM6DRUL3T84 CM6-R Series solid state drive provides 3.84 TB of enterprise storage with a PCIe 4.0 x4 NVMe 1.4 interface, a 2.5 inch U.3 compatible form factor, 96 layer BiCS FLASH 3D TLC, sequential read speeds up to 6,900 MB/s, and sequential write speeds up to 4,200 MB/s. It is designed for mission critical workloads with up to 1,400,000 random read IOPS, 1 DWPD endurance, TCG Enterprise self encrypting drive security, dual port connectivity, power loss protection, end to end data protection, and a 2.5 million hour MTBF.
Specifications
Model Number: KCM6DRUL3T84
Brand: Kioxia
Alt Part Number(s): KCM6DRUL3T84
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCM6DRUL3T84
Series: CM6-R
Capacity: 3.84 TB
Interface: PCIe 4.0 x4; NVMe 1.4
Form Factor: 2.5-inch; 15 mm Z-height; U.3 compatible
Flash Type: KIOXIA BiCS FLASH 3D TLC; 96-layer
Sequential Read: Up to 6,900 MB/s
Sequential Write: Up to 4,200 MB/s
Random Read: Up to 1,400,000 IOPS
Random Write: Up to 170,000 IOPS
Endurance: 1 DWPD (Drive Write Per Day for 5 years)
Total Bytes Written (TBW): 7,008 TB
Hardware Encryption: Self-Encrypting Drive (SED); TCG Enterprise
Features: Dual-port; Power Loss Protection (PLP); End-to-End Data Protection
MTBF: 2,500,000 hours
Power Consumption: Active: 19 W (Typical); Ready: 5 W (Typical)
