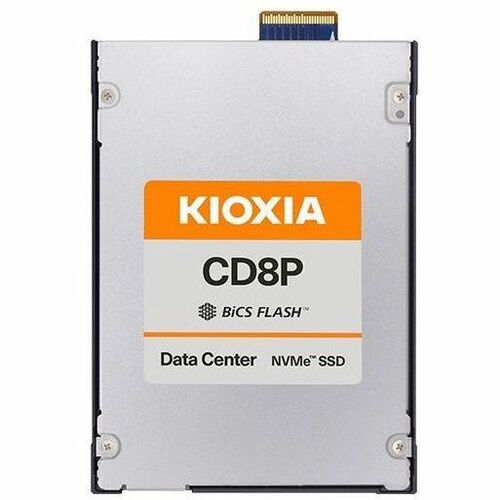

Kioxia CD8P-V KCD8DPUG1T60 1.6TB PCIe 5.0 NVMe 2.0 Solid State Drive

Kioxia KCD8DPUG1T60 CD8P-V solid state drive is a 1.6 TB 2.5-inch 15 mm PCIe 5.0 NVMe 2.0 SSD with BiCS FLASH TLC memory and a maximum interface speed of 128 GT/s using PCIe Gen5 x4. It delivers up to 12,000 MB/s sequential read, 3,500 MB/s sequential write, up to 1,600K IOPS random read, 300K IOPS random write, 23 W typical active power, 2,500,000 hours MTTF, and 3 DWPD endurance.

Specifications

Model Number:  KCD8DPUG1T60

Brand:  Kioxia

Alt Part Number(s):  KCD8DPUG1T60

Product Type:  Solid State Drive

Technical Description

Brand:   Kioxia

Model:  KCD8DPUG1T60

Series:   CD8P-V

Capacity: 1.6 TB

Form Factor: 2.5-inch; 15 mm

Interface: PCIe 5.0; NVMe 2.0

Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)

Flash Memory Type: BiCS FLASH TLC

Sequential Read Speed: Up to 12,000 MB/s

Sequential Write Speed: Up to 3,500 MB/s

Random Read Speed: Up to 1,600K IOPS

Random Write Speed: Up to 300K IOPS

Supply Voltage: 12 V ±10%; 3.3 V ±15%

Power Consumption (Active): 23 W (Typical)

Power Consumption (Ready): 5 W (Typical)

MTTF: 2,500,000 Hours

DWPD: 3

Thickness: 15 mm (+0 / -0.5 mm)

Width: 69.85 mm ±0.25 mm

Length: 100.45 mm Max

Weight: 130 g Max

Operating Temperature: 0°C to 73°C

Storage Temperature: -40°C to 85°C

Operating Humidity: 5% to 95% RH

Operating Vibration: 21.27 m/s² (2.17 Grms); 5 Hz to 800 Hz

Operating Shock: 9.8 km/s² (1,000 G); 0.5 ms
