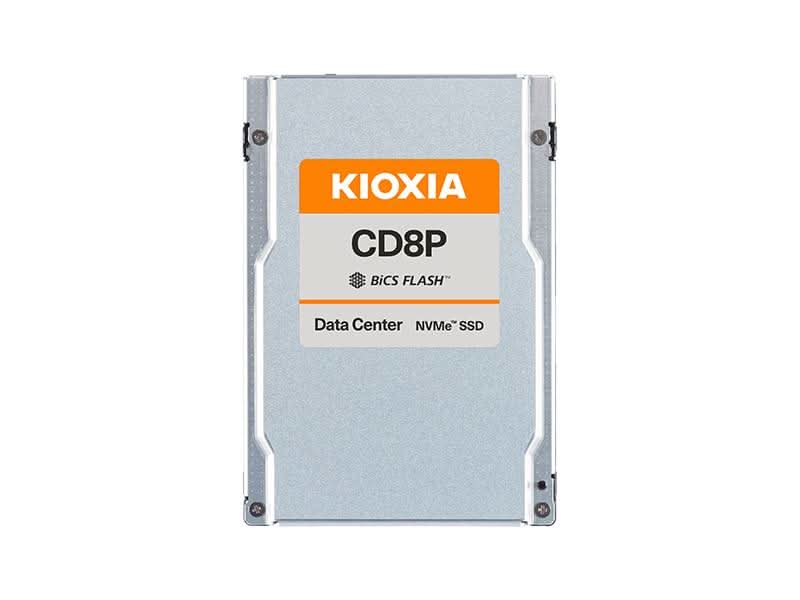

Kioxia CD8P-V KCD81PUG6T40 6.4TB PCIe 5.0 NVMe 2.5-Inch Solid State Drive

Kioxia KCD81PUG6T40 CD8P-V is a 6.4 TB enterprise solid state drive featuring a 2.5 inch form factor, PCIe 5.0 interface, NVMe 2.0 support, and BiCS FLASH TLC technology, delivering sequential read speeds up to 12,000 MB/s and write speeds up to 5,500 MB/s. It provides up to 2,000,000 random read IOPS and 400,000 random write IOPS, includes power loss protection and end to end data correction, supports 3 DWPD endurance, and offers a 2.5 million hour MTBF for demanding data center and enterprise storage environments.

Specifications

Model Number:  KCD81PUG6T40

Brand:  Kioxia

Alt Part Number(s):  KCD81PUG6T40

Product Type:  Solid State Drive

Technical Description

Brand:   Kioxia

Model:  KCD81PUG6T40

Series:  CD8P-V

Form Factor: 2.5"

Capacity: 6.4 TB

Flash Type: BiCS FLASH TLC

Interface: PCIe 5.0; NVMe 2.0

Max 4KB Random Read: 2,000,000 IOPS

Max 4KB Random Write: 400,000 IOPS

MTBF: 2,500,000 Hours

Device Type: Power Supply

Power Consumption Operational: 21 W

Power Voltage Required: 12V ±10%; 3.3V ±15%

Width: 69.85 mm

Depth: 100.45 mm

Height: 15 mm

Features: Power Loss Protection (PLP); End-to-End Data Correction

Min Operating Temperature: 0°C

Max Operating Temperature: 73°C

Max Sequential Read: 12,000 MB/s

Max Sequential Write: 5,500 MB/s

Endurance: 3 DWPD

Country of Origin: Japan

UNSPSC Code: 43201830
