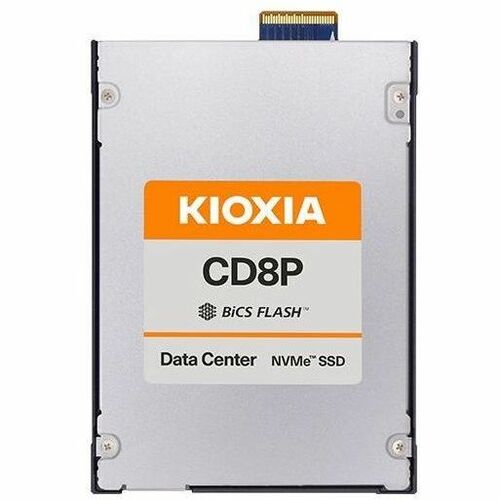

Kioxia CD8P-R KCD8DPUG30T7 30.72TB PCIe 5.0 NVMe 2.0 Solid State Drive

Kioxia KCD8DPUG30T7 CD8P-R Series Solid State Drive delivers 30.72 TB of BiCS FLASH TLC storage in a 2.5 inch 15 mm form factor with a PCIe 5.0 NVMe 2.0 interface and a maximum interface speed of 128 GT/s. It provides sequential read speeds up to 10,000 MB/s and sequential write speeds up to 4,900 MB/s with random performance of up to 1,600K IOPS read and 150K IOPS write, along with 1 DWPD endurance and a 2,500,000 hour MTTF for enterprise workloads.

Specifications

Model Number:  KCD8DPUG30T7

Brand:  Kioxia

Alt Part Number(s):  KCD8DPUG30T7

Product Type:  Solid State Drive

Technical Description

Brand:   Kioxia

Model:  KCD8DPUG30T7

Series:   CD8P-R

Capacity: 30.72 TB

Form Factor: 2.5-inch; 15 mm

Interface: PCIe 5.0; NVMe 2.0

Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)

Flash Memory Type: BiCS FLASH TLC

Sequential Read Speed: 10,000 MB/s

Sequential Write Speed: 4,900 MB/s

Random Read Speed: 1,600K IOPS

Random Write Speed: 150K IOPS

Supply Voltage: 12 V ±10%; 3.3 V ±15%

Power Consumption (Active): 24 W (Typical)

Power Consumption (Ready): 5.5 W (Typical)

MTTF: 2,500,000 Hours

DWPD: 1

Thickness: 15 mm (+0 / -0.5 mm)

Width: 69.85 mm ±0.25 mm

Length: 100.45 mm (Max)

Weight: 130 g (Max)

Operating Temperature: 0°C to 72°C

Non-Operating Temperature: -40°C to 85°C

Operating Humidity: 5% to 95% RH

Operating Vibration: 21.27 m/s² (2.17 Grms); 5 to 800 Hz

Operating Shock: 9.8 km/s² (1,000 G); 0.5 ms
