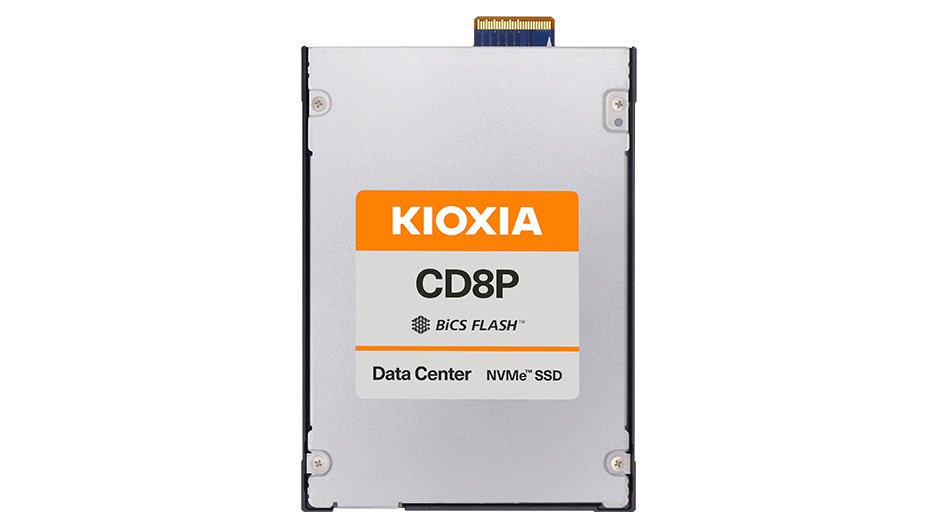

Kioxia KCD8DPJE7T68 CD8P-R provides 7.68TB of storage with PCIe 5.0 and NVMe 2.0 connectivity, delivering sequential read speeds up to 12,000 MB/s and write speeds up to 5,500 MB/s. Built with BiCS FLASH TLC in an E3.S form factor, it offers up to 2,000,000 random read IOPS, 200,000 random write IOPS, and 1 DWPD endurance for demanding enterprise and data center applications.
Specifications
Model Number: KCD8DPJE7T68
Brand: Kioxia
Alt Part Number(s): KCD8DPJE7T68
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD8DPJE7T68
Series: CD8P-R
Storage Capacity: 7.68TB
Form Factor: E3.S
Drive Interface Standard: PCIe 5.0; NVMe 2.0
Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)
Flash Memory Type: BiCS FLASH TLC
Maximum Sequential Read: 12000 MB/s
Maximum Sequential Write: 5500 MB/s
Random 4KB Read: 2000000 IOPS
Random 4KB Write: 200000 IOPS
Supply Voltage: 12V ±10%; 3.3V ±15%
Power Consumption (Active): 21W
Power Consumption (Ready): 5W
Mean Time To Failure (MTTF): 2500000 Hours
Endurance (DWPD): 1
Thickness: 7.5 mm
Width: 76 mm
Length: 112.75 mm
Weight: 110 g
Operating Temperature: 0°C to 76°C
Non-operating Temperature: -40°C to 85°C
Operating Humidity: 5% to 95% RH
Operating Vibration: 21.27 m/s² (2.17 Grms); 5 to 800 Hz
Operating Shock: 9.8 km/s² (1000 G); 0.5 ms
