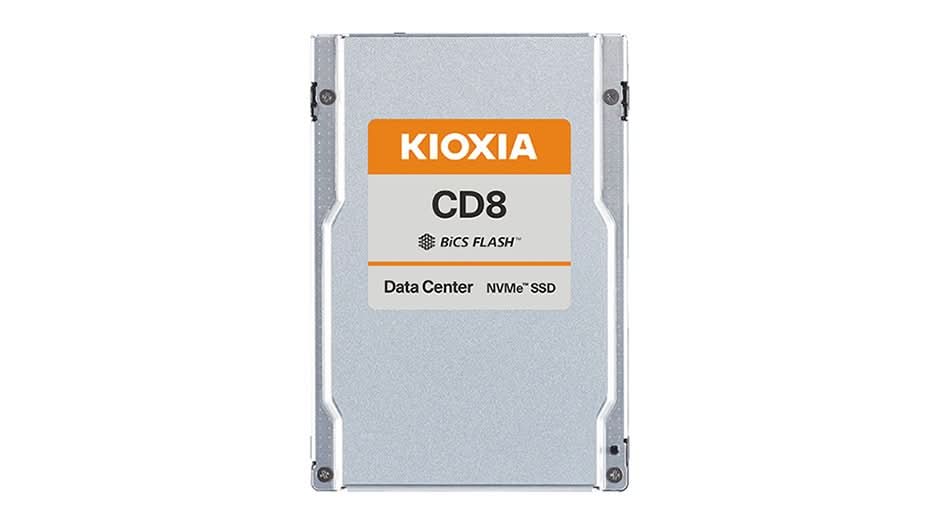

Kioxia CD8-R KCD81PUG15T3 15.36TB PCIe 5.0 NVMe 2.0 SSD

Kioxia KCD81PUG15T3 CD8-R Series solid state drive provides 15.36 TB of enterprise storage with a PCIe 5.0 x4 NVMe 2.0 interface, BiCS FLASH TLC memory, sequential read speeds up to 12,000 MB/s, sequential write speeds up to 5,500 MB/s, and up to 2,000,000 random read IOPS. It is designed for data center workloads with 1 DWPD endurance, a 2.5 million hour MTTF, low power consumption, and reliable operation across demanding environmental conditions.

Specifications

Model Number:  KCD81PUG15T3

Brand: Kioxia

Alt Part Number(s):  KCD81PUG15T3

Product Type:  Solid State Drive

Technical Description

Brand:  Kioxia

Model:  KCD81PUG15T3

Series:  CD8-R

Capacity: 15.36 TB

Form Factor: 2.5-inch; 15 mm thickness

Interface: PCIe 5.0; NVMe 2.0; PCIe Gen5 x4; Maximum Interface Speed: 128 GT/s

Flash Memory Type: BiCS FLASH TLC

Sequential Read: Up to 12,000 MB/s

Sequential Write: Up to 5,500 MB/s

Random Read: Up to 2,000,000 IOPS

Random Write: Up to 200,000 IOPS

Supply Voltage: 12 V ±10%; 3.3 V ±15%

Power Consumption: Active: 23 W (Typical); Ready: 5 W (Typical)

MTTF: 2,500,000 hours

DWPD: 1

Thickness: 15 mm +0 / -0.5 mm

Width: 69.85 mm ±0.25 mm

Length: 100.45 mm Maximum

Weight: 130 g Maximum

Operating Temperature: 0 °C to 73 °C

Non-operating Temperature: -40 °C to 85 °C

Operating Humidity: 5% to 95% RH

Operating Vibration: 21.27 m/s² (2.17 Grms); 5 to 800 Hz

Operating Shock: 9.8 km/s² (1,000 G); 0.5 ms
