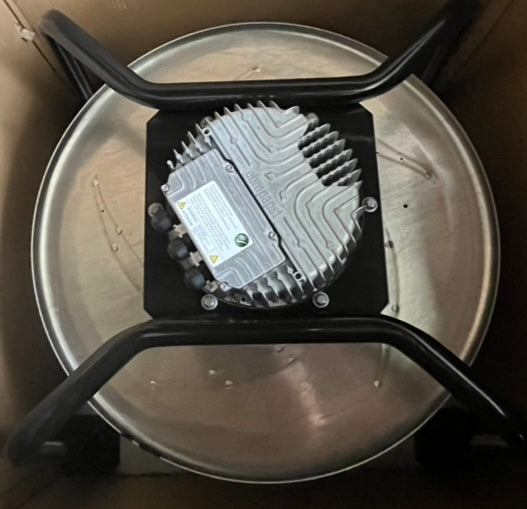

K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM
K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM

K3G560-PB31-71 Ebm-papst FAN Motor M3G150-IF 400V 3.3KW 5.1A 1540RPM

R$ 14.424,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo p/ empresas
  • Impostos inclusos • até 12x sem juros
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

ebm-papst K3G560-PB31-71 High-Power Centrifugal Fan

A robust centrifugal blower engineered to deliver powerful airflow and high static pressure for the most demanding industrial ventilation and process applications.
🌀

High-Pressure Performance

As a centrifugal fan, it excels at generating significant static pressure to overcome resistance in ductwork, filters, and complex industrial systems.

 ⚡

Superior Power Output

With 3.3kW of power, it provides exceptional airflow capacity for large-scale exhaust, material conveying, and heavy-duty process cooling.

 🏗️

Industrial Durability

Heavy-duty construction (52kg) ensures stability and reliable, continuous operation in the most challenging industrial environments.

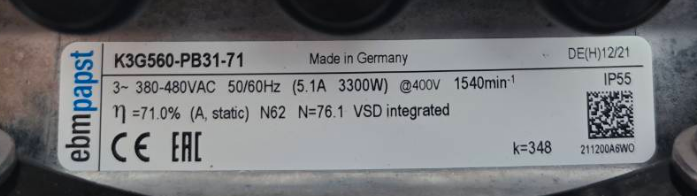

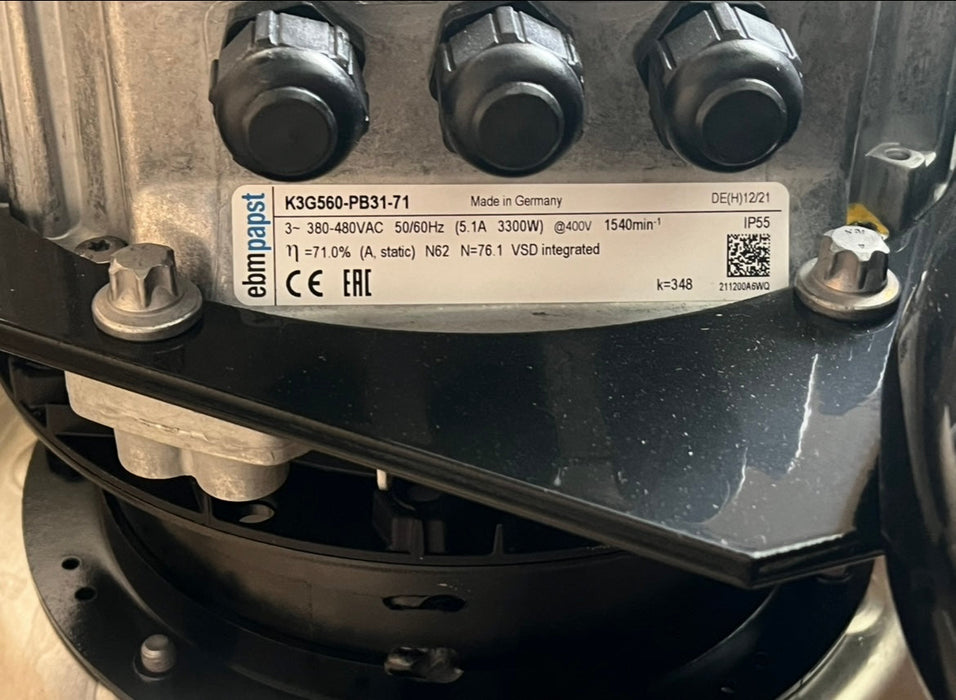

Model Number K3G560-PB31-71
Motor Number M3G150-IF
Manufacturer ebm-papst
Product Type Centrifugal Fan (High-Pressure Blower)
Condition Original new from manufacturer
Rated Power 3.3 kW
Rated Voltage 3~ 400 V
Rated Current 5.1 A
Speed 1540 rpm
Frequency 50/60 Hz
Net Weight 52 kg
Frame Size 560 mm
Country of Origin Germany
HS Code 8414599099

Shipping Hub: Dispatched from Hong Kong for efficient global distribution.

Processing Time: Orders are processed and ready to ship within 5 business days.

Express Delivery: Estimated delivery in 3-8 business days worldwide via DHL or UPS.

Warranty: Backed by a full 1-year manufacturer's warranty.

Returns Promise: We offer a 30-day hassle-free return policy and are committed to your 100% satisfaction.

We sell and ship only genuine products that meet all factory specifications.

Q1: What is the main application for a high-power centrifugal fan like the K3G560-PB31-71?

A: This fan is built for heavy-duty industrial processes that require moving air against high resistance. Typical applications include industrial fume and dust extraction, pneumatic conveying systems, large oven or furnace ventilation, and process cooling where air must pass through filters or long ducts.

Q2: With a weight of 52kg and a large frame (560mm), how should this fan be installed?

A: Due to its size and weight, professional installation is crucial. It must be securely mounted on a stable, vibration-isolated base or structure. Electrical connection must be performed by a qualified electrician using appropriately rated components. Always refer to the installation manual for specific requirements.

Q3: Can the speed of this 3.3kW centrifugal fan be controlled?

A: Yes, variable speed control is possible and recommended for energy savings. It requires an external Variable Frequency Drive (VFD) compatible with 3-phase 400V motors of this power rating. The VFD allows precise adjustment of airflow to match system demand.

Q4: Why would I choose this model over a similar power axial fan?

A: Choose this centrifugal fan if your system has high static pressure losses (e.g., from filters, ducts, or dampers). It converts power into pressure more efficiently for such tasks. An axial fan of similar power would move more air volume but would struggle and consume more energy if faced with the same system resistance.

Need a High-Pressure Industrial Blower?

Contact us for performance curves, technical datasheets, or assistance in selecting the right fan for your high-resistance airflow system.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

ebm-papst K3G560-PB31-71 High-Power Centrifugal Fan

A robust centrifugal blower engineered to deliver powerful airflow and high static pressure for the most demanding industrial ventilation and process applications.
Core Advantages
🌀

High-Pressure Performance

As a centrifugal fan, it excels at generating significant static pressure to overcome resistance in ductwork, filters, and complex industrial systems.

 ⚡

Superior Power Output

With 3.3kW of power, it provides exceptional airflow capacity for large-scale exhaust, material conveying, and heavy-duty process cooling.

 🏗️

Industrial Durability

Heavy-duty construction (52kg) ensures stability and reliable, continuous operation in the most challenging industrial environments.
Technical Specifications
Model Number K3G560-PB31-71
Motor Number M3G150-IF
Manufacturer ebm-papst
Product Type Centrifugal Fan (High-Pressure Blower)
Condition Original new from manufacturer
Rated Power 3.3 kW
Rated Voltage 3~ 400 V
Rated Current 5.1 A
Speed 1540 rpm
Frequency 50/60 Hz
Net Weight 52 kg

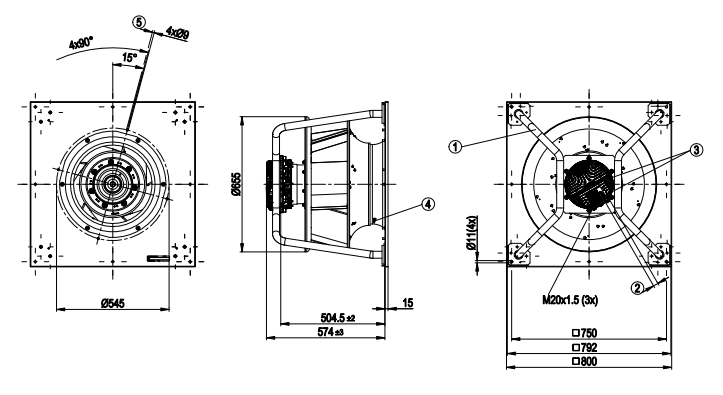

Frame Size 560 mm
Country of Origin Germany
HS Code 8414599099
Shipping, Warranty & Service

Shipping Hub: Dispatched from Hong Kong for efficient global distribution.

Processing Time: Orders are processed and ready to ship within 5 business days.

Express Delivery: Estimated delivery in 3-8 business days worldwide via DHL or UPS.

Warranty: Backed by a full 1-year manufacturer's warranty.

Returns Promise: We offer a 30-day hassle-free return policy and are committed to your 100% satisfaction.

We sell and ship only genuine products that meet all factory specifications.
Frequently Asked Questions

Q1: What is the main application for a high-power centrifugal fan like the K3G560-PB31-71?

A: This fan is built for heavy-duty industrial processes that require moving air against high resistance. Typical applications include industrial fume and dust extraction, pneumatic conveying systems, large oven or furnace ventilation, and process cooling where air must pass through filters or long ducts.

Q2: With a weight of 52kg and a large frame (560mm), how should this fan be installed?

A: Due to its size and weight, professional installation is crucial. It must be securely mounted on a stable, vibration-isolated base or structure. Electrical connection must be performed by a qualified electrician using appropriately rated components. Always refer to the installation manual for specific requirements.

Q3: Can the speed of this 3.3kW centrifugal fan be controlled?

A: Yes, variable speed control is possible and recommended for energy savings. It requires an external Variable Frequency Drive (VFD) compatible with 3-phase 400V motors of this power rating. The VFD allows precise adjustment of airflow to match system demand.

Q4: Why would I choose this model over a similar power axial fan?

A: Choose this centrifugal fan if your system has high static pressure losses (e.g., from filters, ducts, or dampers). It converts power into pressure more efficiently for such tasks. An axial fan of similar power would move more air volume but would struggle and consume more energy if faced with the same system resistance.

Need a High-Pressure Industrial Blower?

Contact us for performance curves, technical datasheets, or assistance in selecting the right fan for your high-resistance airflow system.
