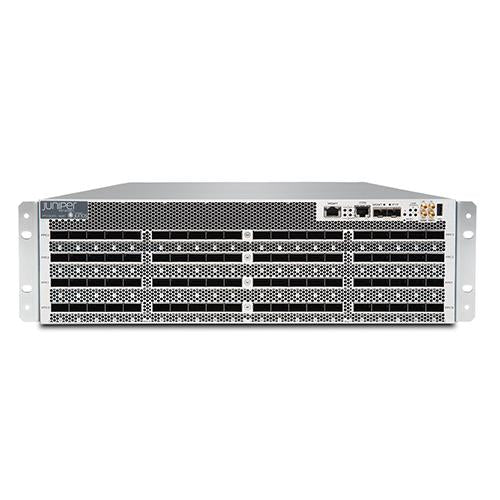

Juniper PTX10003-160C-AC Router
Juniper PTX10003-160C-AC Router

Juniper PTX10003-160C-AC Router

por Juniper
Desconto de 16%
R$ 5.225.472,00
R$ 4.389.396,48
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • PTX10003-160C base system with 160 100GE ports or 32 400GE ports, 4 3000W AC power supplies, 4 power cables, and 5 fan trays, with standard tier right-to-use license.
[/shortdesc]

[properties]

Properties Juniper PTX10003-160C-AC
Description PTX10003-160C base system with 160 100GbE ports or 32 400GbE ports, 4 3000W AC power supplies, 4 power cables, and 5 fan trays, with standard tier right-to-use license
Product Family PTX10003 Series
Product Type Router
Port Densities
Max. 10GbE 320
Max. 40GbE 80
Max. 100GbE 160
Max 200GbE 64
Max 400GbE 32
Dimension (WxHxD) 17.4 x 5.25 x 31 in (44.2 x 13.3 x 78.7 cm)
Weight (lb/kg) fully configured 110 lb (50 kg)
Rack units 3 U
Maximum power draw ~4000 W (AC.DC), 13640 BTU/hr
Typical power draw ~3100W (AC,DC), 10571 BTU/hr
Power supply 4x3000 watts (AC/DC)
Cooling (front-to-back fan) 5 hot-swappable redundant fans

[/properties][specifications]

Specifications PTX10003-160C-AC
CPU Intel Broadwell CPU with 12 Cores
RAM 64 Gb SDRAM
SSD 200 GBx2
System throughput 16 Tbps
Forwarding capacity Up to 10.6 Bpps
Packet buffer 128 Gb
Latency 2.5 µs within PFE, 5 us between PFEs
Power Efficiency (watts/Gbps) 0.2
Management and Precision Time Protocol (PTP) interfaces 1 small form-factor pluggable transceiver (SFP/SFP+) port or
Precision Time Protocol (PTP) Grandmaster
Fiber (SFP) or 10/100/1000BASE-T (RJ-45) Ethernet management port
SMB in, SMB out, 10 MHz in, 10 MHz out
One console port
USB 2.0 storage interface
Total packet buffer 24 GB
Software Features MPLS-TE
MPLS LSR
Firewall filters ACL
SPRINGv4
DDoS control plane
JFlow/SFlow
BGP FlowSpec, EPE, URPF, L3VPN
Integrated routing and bridging (IRB)
Telemetry, NETCONF/YANG
Zero Touch Provisioning (ZTP)
PCEP, BGP-LS
Fast restoration
Operation, Administration, and Maintenance (OAM)
Operating temperature 32° to 115° F (0° to 46° C) at sea level
Storage temperature -40° to 158° F (-40° to 70° C)
Operating altitude Up to 10,000 ft. (3,048 m)
Relative humidity operating 5 to 90% (noncondensing)
Relative humidity nonoperating 5 to 95% (noncondensing)
Seismic Designed to meet GR-63, Zone 4 earthquake requirements
Safety CAN/CSA-C22.2 No. 60950-1 Information Technology
EquipmentSafety
UL 60950-1 Information Technology EquipmentSafety
EN 60950-1 Information Technology EquipmentSafety
IEC 60950-1 Information Technology EquipmentSafety (all
country deviations)
EN 60825-1 Safety of Laser ProductsPart 1: Equipment
Classification
EMC 47CFR Part 15, (FCC) Class A
ICES-003 Class A
EN 55022 Class A
CISPR 22 Class A
EN 55024
CISPR 24
EN 300 386
VCCI Class A
AS/NZA CISPR22 Class A
KN22 Class A
CNS 13438 Class A
EN 61000-3-2
EN 61000-3-3
ETSI
ETSI EN 300 019: Environmental Conditions & Environmental
Tests for Telecommunications Equipment
ETSI EN 300 019-2-1 (2000)Storage
ETSI EN 300 019-2-2 (1999)Transportation
ETSI EN 300 019-2-3 (2003)Stationary Use at Weatherprotected Locations
ETS 300753 (1997)Acoustic noise emitted by
telecommunications equipment

[/specifications][accesories]

Accessories and licenses
S-PTX10K3-16T-A1-P 16T PTX10003 Advanced1 tier right-to-use license, perpetual, without SW support
S-PTX10K3-16T-A2-P 16T PTX10003 Advanced2 tier right-to-use license, perpetual, without SW support
S-PTX10K3-16T-P1-P 16T PTX10003 Premium1 tier right-to-use license, perpetual, without SW support
S-PTX10K3-16T-P2-P 16T PTX10003 Premium2 tier right-to-use license, perpetual, without SW support
S-PTX10K3-16T-A1-5 16T PTX10003 Advanced1 tier right-to-use license, 5-year term, with SW support
S-PTX10K3-16T-A2-5 16T PTX10003 Advanced2 tier right-to-use license, 5-year term, with software support
S-PTX10K3-16T-P1-5 16T PTX10003 Premium1 tier right-to-use license, 5-year term, with software support
S-PTX10K3-16T-P2-5 16T PTX10003 Premium2 tier right-to-use license, 5-year term, with software support
S-PTX10K3-16T-A1-3 16T PTX10003 Advanced1 tier right-to-use license, 3-year term, with SW support
S-PTX10K3-16T-A2-3 16T PTX10003 Advanced2 tier right-to-use license, 3-year term, with software support
S-PTX10K3-16T-P1-3 16T PTX10003 Premium1 tier right-to-use license, 3-year term, with software support
S-PTX10K3-16T-P2-3 16T PTX10003 Premium2 tier right-to-use license, 3-year term, with software support
JNP10003-160C-CHAS JNP10003-160C spare chassis with 160 100GbE ports or 32 400GbE ports
JNP10003-FAN Fan tray for 3RU 8T and 16T fixed platforms
JNP-3000W-AC-AFO AC power supply for JNP10003-160C and NP10003-80C fixed platforms
Pay-as-you-grow License
S-PTX10K-400G-P1-3 SW, PTX10K, 400G, Premium 1, with SW support, Flex Capacity License, JAL required, 3 YEAR
S-PTX10K-400G-P1-5 SW, PTX10K, 400G, Premium 1, with SW support, Flex Capacity License, JAL required, 5 YEAR
S-PTX10K-400G-P1-P SW, PTX10K, 400G, Pre1, without SW support, Perpetual
S-PTX10K-400G-P2-3 SW, PTX10K, 400G, Premium 2, with SW support, Flex Capacity License, JAL required, 3 YEAR
S-PTX10K-400G-P2-5 SW, PTX10K, 400G, Premium 2, with SW support, Flex Capacity License, JAL required, 5 YEAR
S-PTX10K-400G-P2-P SW, PTX10K, 400G, Pre2, without SW support, Perpetual

[/accesories]

The scalable PTX10003 Packet Transport Router delivers critical core routing functions on demand while providing high-density 10GbE, 40GbE, 100GbE, 200GbE, and 400GbE interfaces for distributed core networks and network applications. The router's compact form factor and power efficiency meets the demands of Internet service providers, cloud providers, cable multiple service operators (MSOs), and high-volume content providers. The PTX10003 offers secure transit, peering, and full IP/MPLS and SPRING applications in the data center edge and content delivery network (CDN) core.
