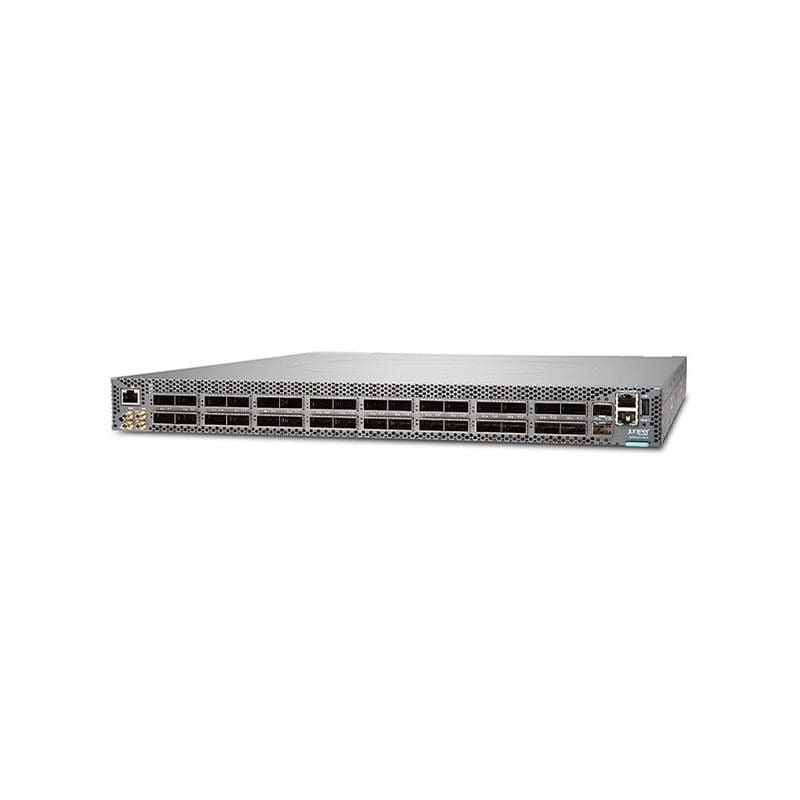

Juniper Networks QFX5220-32CD-AFO 32-Port 400GbE Data Center Switch (Front-to-Back Airflow)
Juniper Networks QFX5220-32CD-AFO 32-Port 400GbE Data Center Switch (Front-to-Back Airflow)

Juniper Networks QFX5220-32CD-AFO 32-Port 400GbE Data Center Switch (Front-to-Back Airflow)

por Juniper
R$ 298.500,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

Juniper QFX5220-32CD-AFO 32-Port 400GbE Data Center Switch

The Juniper QFX5220-32CD-AFO is a next-generation 400GbE high-performance data center switch designed for modern cloud, AI/ML clusters, hyperscale, and spine-leaf architectures. Equipped with 32 QSFP-DD ports, the switch offers industry-leading throughput, low latency, and exceptional scalability.

With front-to-back (AFO) airflow, redundant hot-swappable components, and support for advanced automation through Junos OS, the QFX5220-32CD-AFO is built for mission-critical data center operations. It delivers unmatched flexibility with support for 100GbE, 200GbE, and 400GbE speeds, making it ideal for distributed cloud environments, high-density compute fabrics, and bandwidth-intensive workloads.

Specification Details
Brand Juniper Networks
Series QFX5200 Series
Model QFX5220-32CD-AFO
Form Factor 1U rack-mountable
Port Configuration 32 × QSFP-DD (400GbE)
Breakout Support 4×100GbE per port (up to 128 ports), 2×200GbE
Switching Capacity 12.8 Tbps
Forwarding Rate Up to 9.52 Bpps
Airflow Front-to-Back (AFO)
Latency Ultra-low latency architecture
CPU Multi-core embedded processor
Memory 16GB DRAM (varies by revision)
Storage 64GB SSD
Operating System Junos OS
Layer Support L2/L3, EVPN, VXLAN
Routing Protocols BGP, OSPF, IS-IS, PIM, MPLS
Redundancy Hot-swappable fans and PSUs
Telemetry Streaming telemetry, JTI
Power Supply Dual AC PSUs
Typical Power Consumption ~550W (varies by optics)
Dimensions (H × W × D) ~1.72 × 17.4 × 21.5 in
Weight ~20 lbs (9–10 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Warranty Juniper Limited Lifetime Warranty

📌 Performance & Use Cases

Ideal For:

  • Large-scale leaf-spine architectures

  • High-density AI/ML cluster interconnects

  • Hyperscale and cloud service providers

  • 400GbE backbone networks

  • Enterprise data center modernization

  • Ultra-low latency trading clusters

Benefits:

  • Future-proof 400G scalability

  • Fully redundant design ensures high availability

  • Automated provisioning and monitoring

  • Flexible breakout options

  • Energy-efficient switching platform

📌 FAQs

1. What port speeds does the Juniper QFX5220-32CD-AFO support?

It supports 400G, 200G, and 100G, with breakout options of 4×100G per port.

2. What airflow direction does the AFO model use?

AFO stands for Airflow Front-to-Back, ideal for modern data center cooling layouts.

3. Does the switch support EVPN-VXLAN?

Yes, it fully supports EVPN-VXLAN, making it suitable for scalable Layer-3 fabrics.

4. Is this switch suitable for AI/ML workloads?

Absolutely—its 400GbE high-bandwidth, low-latency design supports GPU/AI cluster networking.

5. Does the QFX5220-32CD-AFO include redundant components?

Yes, it includes redundant hot-swappable fans and PSUs.

6. What OS does it run?

It runs Junos OS, known for stability, automation, and security.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

Juniper QFX5220-32CD-AFO 32-Port 400GbE Data Center Switch

The Juniper QFX5220-32CD-AFO is a next-generation 400GbE high-performance data center switch designed for modern cloud, AI/ML clusters, hyperscale, and spine-leaf architectures. Equipped with 32 QSFP-DD ports, the switch offers industry-leading throughput, low latency, and exceptional scalability.

With front-to-back (AFO) airflow, redundant hot-swappable components, and support for advanced automation through Junos OS, the QFX5220-32CD-AFO is built for mission-critical data center operations. It delivers unmatched flexibility with support for 100GbE, 200GbE, and 400GbE speeds, making it ideal for distributed cloud environments, high-density compute fabrics, and bandwidth-intensive workloads.

📌 Technical Specifications for Juniper QFX5220-32CD-AFOCLICK HERE FOR DATA SHEET
Specification Details
Brand Juniper Networks
Series QFX5200 Series
Model QFX5220-32CD-AFO
Form Factor 1U rack-mountable
Port Configuration 32 × QSFP-DD (400GbE)
Breakout Support 4×100GbE per port (up to 128 ports), 2×200GbE
Switching Capacity 12.8 Tbps
Forwarding Rate Up to 9.52 Bpps
Airflow Front-to-Back (AFO)
Latency Ultra-low latency architecture
CPU Multi-core embedded processor
Memory 16GB DRAM (varies by revision)
Storage 64GB SSD
Operating System Junos OS
Layer Support L2/L3, EVPN, VXLAN
Routing Protocols BGP, OSPF, IS-IS, PIM, MPLS
Redundancy Hot-swappable fans and PSUs
Telemetry Streaming telemetry, JTI
Power Supply Dual AC PSUs
Typical Power Consumption ~550W (varies by optics)
Dimensions (H × W × D) ~1.72 × 17.4 × 21.5 in
Weight ~20 lbs (9–10 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Warranty Juniper Limited Lifetime Warranty

📌 Performance & Use Cases

Ideal For:

  • Large-scale leaf-spine architectures

  • High-density AI/ML cluster interconnects

  • Hyperscale and cloud service providers

  • 400GbE backbone networks

  • Enterprise data center modernization

  • Ultra-low latency trading clusters

Benefits:

  • Future-proof 400G scalability

  • Fully redundant design ensures high availability

  • Automated provisioning and monitoring

  • Flexible breakout options

  • Energy-efficient switching platform

📌 FAQs

1. What port speeds does the Juniper QFX5220-32CD-AFO support?

It supports 400G, 200G, and 100G, with breakout options of 4×100G per port.

2. What airflow direction does the AFO model use?

AFO stands for Airflow Front-to-Back, ideal for modern data center cooling layouts.

3. Does the switch support EVPN-VXLAN?

Yes, it fully supports EVPN-VXLAN, making it suitable for scalable Layer-3 fabrics.

4. Is this switch suitable for AI/ML workloads?

Absolutely—its 400GbE high-bandwidth, low-latency design supports GPU/AI cluster networking.

5. Does the QFX5220-32CD-AFO include redundant components?

Yes, it includes redundant hot-swappable fans and PSUs.

6. What OS does it run?

It runs Junos OS, known for stability, automation, and security.
