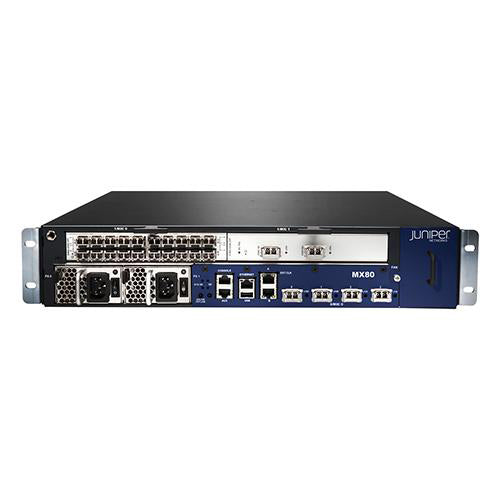

Juniper MX80-48T-AC-B Router
Juniper MX80-48T-AC-B Router

Juniper MX80-48T-AC-B Router

por Juniper
Desconto de 30%
R$ 768.000,00
R$ 537.600,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • MX80-48T Chassis
  • ADV Bundle
  • Junos-WW License
  • AC power supply
  • Fan Tray with filter
[/shortdesc]

[properties]

Properties Juniper MX80-48T-AC-B
Description MX80-48T Chassis , ADV Bundle, Junos-WW License, AC power supply, Fan Tray with filter.
Product Family MX80 Series
Product Type Router
Interface Features
Maximum 1GbE 80
Maximum 10GbE 8
Maximum 40GbE NA
Maximum 100GbE NA
10GbE DWDM NA
100GbE DWDM NA
Ports 4 10GbE fixed, 48 RJ-45
Slots 3 MIC slots (The MX80 has two front MIC slots and one rear MIC slot. The rear MIC slot only supports the MS-MIC.)
PDH Yes
Sonet/SDH Yes
Advanced Bundle Yes
Junos-WW Yes
Physical dimensions (W x D x H)
Fixed chassis 17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm)
Modular chassis 17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm)
Air filter 0.25 in. (0.64 cm) x 18.43 in. 46.81 cm) x 3.35 in. (8.5 cm)
MIC 6.25 in. (15.9 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm)
Dual-wide MIC 12.5 in. (31.75 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm)
Fan tray 2.75 in. (6.96 cm) x 20.5 in. 52.07 cm) x 3.35 in. (8.5 cm)
DC power supply 2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm)
AC power supply 2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm)
Weights
Fixed chassis Chassis with fan tray and power supplies: 28 lb (12.7 kg)
Modular chassis Chassis with fan tray, power supplies, and MICs: 30 lb (13.6 kg)
Air filter 0.1 lb (0.05 kg)
MIC Maximum up to 1.2 lb (0.54 kg)
Dual-wide MIC 1.9 lb (0.9 kg)
Fan tray 2.3 lb (1.04 kg)
DC power supply 2.6 lb (1.18 kg)
AC power supply 2.6 lb (1.18 kg)
Weight (lb/kg) fully configured 30 lb/13.7 kg
Mounting Front or center
Rack units 2
Systems per rack 24
Redundancy Power supplies and fans
Air flow Side to side [forced air]
Power (AC) 100 to 240 V AC
Typical power draw (AC) 365 W
Maximum output power 500 W
AC input voltage Operating range: 90 to 264 VAC
AC input line frequency 50 to 60 Hz (nominal)
AC system current rating 6 A @ 110 VAC (7 A maximum per inlet at 90 VAC) or 3 A @ 220 VAC
AC system input power 610 W

[/properties][specifications]

Specifications MX80-48T-AC-B
System capacity 80 Gbps
System throughput 160 Gbps
Packet forwarding capacity 55 to 60 Mpps
Per slot capacity 20 Gbps
Slot orientation Horizontal
Built-in Routing Engine 8 MB boot flash; 4 GB on NAND flash storage; 2 GB of DDR2 RAM
Number of cores 1 core
Platform Features
Security Firewall filters/ACLs
DDoScontrol plane
DDoSFlowSpec
Stateless filters L2-L4
Stateful services*
Inline Services GRE reassembly
1:1 NAT*
Flow monitoring**
Video monitoring***
Lawful intercept
Mirroring
Service Card Supported Services CGNAT
J-Flow**
Ipsec****
Stateful firewall^
Resiliency Fast restoration
Operation, Administration, and Maintenance (OAM)
System
Virtualization		 Logical systems
Virtual router/switch
Enhanced SLA and queuing
Junos Fusion Edge (AD)
Automation Path Computation Element Protocol (PCEP)
OpenConfig
YANG data modeling
Juniper Extension Toolkit
Operating temperature 32° to 104° F (0° to 40° C)
Humidity 5% to 90% noncondensing humidity
Altitude 13,000 ft (4,000 m)

[/specifications][accesories]

MICs
MIC-3D-8OC3-2OC12-ATM ATM MIC with SFP
MIC-3D-8DS3-E3/MIC-3D-8CHDS3-E3-B DS3/E3 MIC
MIC-3D-16CHE1-T1-CE Channelized E1/T1 Circuit Emulation MIC
MIC-3D-16CHE1-T1-CE-H Channelized E1/T1 Circuit Emulation MIC (H)
MIC-3D-20GE-SFP Gigabit Ethernet MIC with SFP
MIC-3D-20GE-SFP-E Gigabit Ethernet MIC with SFP (E)
MIC-3D-20GE-SFP-EH Gigabit Ethernet MIC with SFP (EH)
MIC-MACSEC-20GE Gigabit Ethernet MIC with 256b-AES MACsec
MIC-3D-2XGE-XFP 10-Gigabit Ethernet MICs with XFP
MIC-3D-4OC3OC12-1OC48 SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-8OC3OC12-4OC48 SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-4CHOC3-2CHOC12 Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-8CHOC3-4CHOC12 Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-4COC3-1COC12-CE Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP
MIC-4COC3-1COC12-CE-H Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP (H)
MIC-3D-40GE-TX Tri-Rate MIC
MS-MIC-16G Multiservices MIC
MIC-3D-1OC192-XFP SONET/SDH OC192/STM64 MIC with XFP
JNP-MIC1 12-Port Multi-Rate MIC with QSFP+
JNP-MIC1-MACSEC 12-Port Multi-Rate MACsec MIC with QSFP+
Midrange router upgrade licenses
MX-40-80-UPG-B Software upgrade for MX40 to MX80
Junos OS
Junos-WW Worldwide
Junos OS USA
Software Licenses
S-MX80-ADV-R License to support full scale L3 route and
L3 VPN on MX80
S-MX80-Q License Svc F/ MPC F/ Mx80 Series Routers Limited to 5g
S-MX80-SA-FP Subscriber Management Feature Pack
License
S-MX80-SSM-FP Subscriber Service Management
Feature Packet License (RADIUS/SRC
Series-based service activation and
deactivation) per service accounting
features for subscribers, MX80

[/accesories]

The compact, agile, and full-featured MX80 Universal Routing Platform is ideally suited for enterprise and service provider applications in facilities with limited space and power. MX80 routers are optimized for enterprise WAN, Data Center Interconnect (DCI), branch aggregation, and campus applications.
