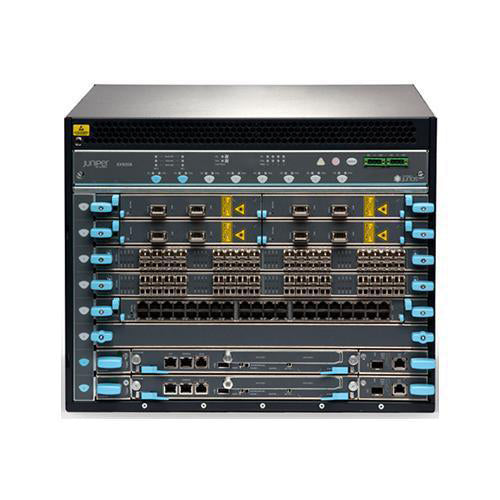

Juniper EX9208-BASE3A-AC Chassis
Juniper EX9208-BASE3A-AC Chassis

Juniper EX9208-BASE3A-AC Chassis

por Juniper
Desconto de 30%
R$ 1.496.880,00
R$ 1.047.816,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Modular Ethernet switch chassis (base AC configuration)
  • 8U chassis with craft interface and midplane
  • 1 x EX9200-SF2 switch fabric module
  • 1 x EX9200-RE routing engine module
  • 3 x 2520W AC power supplies
  • 1 x fan tray + 1 x air filter kit
  • Includes cover/blank panels for unused slots
  • Supports up to 6 line cards (ordered separately)
[/shortdesc]

[properties]

Properties Juniper EX9208-BASE3A-AC Chassis
Description Base EX9208 chassis configuration with AC power, including chassis with craft interface and midplane, one EX9200-SF2 module, one EX9200-RE module, one fan tray, one air filter kit, and three 2520W AC power supplies.
Product Family Juniper EX9200 Series
Product Type Modular Ethernet Switch Chassis
Chassis Size 8U
Power Type AC
Included Power Supplies 3 x 2520W AC
Cooling 1 x Fan Tray (FRU), side-to-side cooling
Routing Engine 1 x EX9200-RE (base configuration)
Switch Fabric 1 x EX9200-SF2
Line Card Slots 6 horizontal slots (line cards sold separately)
Hot-Swap Components Line cards, fan tray, power supplies (FRUs)
First Junos OS Release 14.1

[/properties]

[specifications]

Specification Details
SKU EX9208-BASE3A-AC
Configuration Type Base configuration with 2520W AC power supplies
Included Components Chassis with craft interface and midplane; 1 x EX9200-SF2 module; 1 x EX9200-RE module; 1 x fan tray; 1 x air filter kit; 3 x 2520W AC power supplies; 1 x EX9200-SF module cover panel; 6 x line card cover panels; blank panels for empty power supply slots
System Architecture Modular EX9208 switch chassis designed for high performance, scalable connectivity, and carrier-class reliability
Throughput (EX9208 platform) Up to 4.8 Tbps total or up to 240 Gbps per slot full duplex
Host Subsystem Routing Engine + Switch Fabric working together (base configuration includes one host subsystem)
Line Card Capacity Up to 6 line cards (slots 0–5)
Line Card Notes Line cards are not part of base/redundant configurations and must be ordered separately
Power Supply Capacity (Chassis) Supports up to 4 AC or DC power supplies (do not mix AC and DC in same chassis)
Power Cord Note Power cords and additional power supplies must be purchased separately
Rack Fit 8U chassis; five EX9208 switches fit in a standard 48U rack

[/specifications]

The Juniper EX9208-BASE3A-AC is a base configuration modular chassis in the EX9200 Series, built for high-density campus aggregation and data center environments. This 8U chassis includes the core hardware required to start an EX9208 deployment: one EX9200-SF2 switch fabric module, one EX9200-RE routing engine module, one fan tray, one air filter kit, and three 2520W AC power supplies.

The EX9208 platform is designed for scalability and high availability, with support for up to six hot-removable/hot-insertable line cards and redundant, load-sharing power architecture. The chassis can support up to four AC or DC power supplies (without mixing AC and DC in the same chassis), and major components such as power supplies, fan tray, and line cards are field-replaceable units (FRUs) for easier maintenance and serviceability.

Please note that line cards are not included in the base chassis configuration and must be ordered separately based on the required port density and interface type.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Modular Ethernet switch chassis (base AC configuration)
  • 8U chassis with craft interface and midplane
  • 1 x EX9200-SF2 switch fabric module
  • 1 x EX9200-RE routing engine module
  • 3 x 2520W AC power supplies
  • 1 x fan tray + 1 x air filter kit
  • Includes cover/blank panels for unused slots
  • Supports up to 6 line cards (ordered separately)
[/shortdesc]

[properties]

Properties Juniper EX9208-BASE3A-AC Chassis
Description Base EX9208 chassis configuration with AC power, including chassis with craft interface and midplane, one EX9200-SF2 module, one EX9200-RE module, one fan tray, one air filter kit, and three 2520W AC power supplies.
Product Family Juniper EX9200 Series
Product Type Modular Ethernet Switch Chassis
Chassis Size 8U
Power Type AC
Included Power Supplies 3 x 2520W AC
Cooling 1 x Fan Tray (FRU), side-to-side cooling
Routing Engine 1 x EX9200-RE (base configuration)
Switch Fabric 1 x EX9200-SF2
Line Card Slots 6 horizontal slots (line cards sold separately)
Hot-Swap Components Line cards, fan tray, power supplies (FRUs)
First Junos OS Release 14.1

[/properties]

[specifications]

Specification Details
SKU EX9208-BASE3A-AC
Configuration Type Base configuration with 2520W AC power supplies
Included Components Chassis with craft interface and midplane; 1 x EX9200-SF2 module; 1 x EX9200-RE module; 1 x fan tray; 1 x air filter kit; 3 x 2520W AC power supplies; 1 x EX9200-SF module cover panel; 6 x line card cover panels; blank panels for empty power supply slots
System Architecture Modular EX9208 switch chassis designed for high performance, scalable connectivity, and carrier-class reliability
Throughput (EX9208 platform) Up to 4.8 Tbps total or up to 240 Gbps per slot full duplex
Host Subsystem Routing Engine + Switch Fabric working together (base configuration includes one host subsystem)
Line Card Capacity Up to 6 line cards (slots 0–5)
Line Card Notes Line cards are not part of base/redundant configurations and must be ordered separately
Power Supply Capacity (Chassis) Supports up to 4 AC or DC power supplies (do not mix AC and DC in same chassis)
Power Cord Note Power cords and additional power supplies must be purchased separately
Rack Fit 8U chassis; five EX9208 switches fit in a standard 48U rack

[/specifications]

Juniper EX9208-BASE3A-AC Chassis

The Juniper EX9208-BASE3A-AC is a base configuration modular chassis in the EX9200 Series, built for high-density campus aggregation and data center environments. This 8U chassis includes the core hardware required to start an EX9208 deployment: one EX9200-SF2 switch fabric module, one EX9200-RE routing engine module, one fan tray, one air filter kit, and three 2520W AC power supplies.

The EX9208 platform is designed for scalability and high availability, with support for up to six hot-removable/hot-insertable line cards and redundant, load-sharing power architecture. The chassis can support up to four AC or DC power supplies (without mixing AC and DC in the same chassis), and major components such as power supplies, fan tray, and line cards are field-replaceable units (FRUs) for easier maintenance and serviceability.

Please note that line cards are not included in the base chassis configuration and must be ordered separately based on the required port density and interface type.
