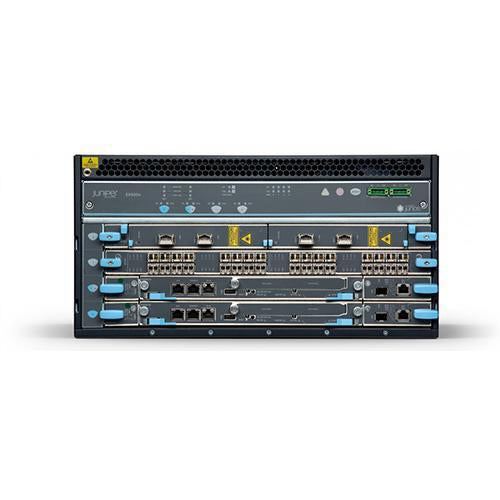

Juniper EX9204-AC-BND2 Chassis
Juniper EX9204-AC-BND2 Chassis

Juniper EX9204-AC-BND2 Chassis

por Juniper
Desconto de 30%
R$ 1.049.760,00
R$ 734.832,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Bundle of EX9204-BASE3B-AC and EX9200-32XS line card
  • 4-slot chassis with passive midplane
  • 1 x routing engine (EX9200-RE2)
  • 1 x switch fabric-2 module
  • 2 x 2520W AC Power Supply
  • 1 x fan tray
  • all necessary blank panels
  • and EX9200-32XS line card
[/shortdesc] [properties]
Properties Juniper EX9204-AC-BND2
Description Bundle comprising of EX9204-BASE3B-AC and EX9200-32XS line card, shipped separately as two items.
Product Family EX9200 Series
Product Type Ethernet Switch
Total number of slots 4
Slots available for line cards 2 with fabric redundancy (3 without)
Routing Engine 1x EX9200-RE2
Switch Fabric Module 1x EX9200-SF2
Includes EX9200-32XS Line Card
Maximum GbE Port Density (wire speed)
1GbE 120
10GbE 144 (96)
25GbE 120
40GbE 30
100GbE 30
Fabric • Up to 3 Tbps backplane capacity
• Up to 1.5 Tbps (full duplex) per slot fabric capacity
• 1+1 fabric redundancy
Routing Engine • Master and backup Routing Engines (1+1 redundancy)
• Up to 64 gigabytes DRAM
• Dual front pluggable solid-state drive (SSD) (Up to 64 GB each)
• Console, auxiliary serial, and Ethernet management ports
• USB storage interface
Operating system Juniper Networks Junos operating system
Power Holds up to four power supplies:
• 100-120 V AC (2+2 redundancy)
• 200-240 V AC (1+1 redundancy)
• -40 to -72 V DC
Maximum power draw: 2,421 W (AC)
Cooling • Front-to-back airflow
• Hot-swappable fan tray with 1+1 redundancy
Dimensions (W x H x D) 17.5 x 8.7 x 27.75 in
(44.5 x 22.1 x 70.5 cm)
Weight (fully loaded) 128.0 lbs (58.1 kg)
Rack units 5 U
Power Consumption
EX9204 Base Typical Power 410 W
EX9204 Base Reserved Power 410 W
Additional Units Typical Power
EX9200 Routing Engine 90 W
EX9200 Switch Fabric-2 155 W
EX9200-32XS Line Card 550 W
Additional Units Maximum Power
EX9200 Routing Engine 90 W
EX9200 Switch Fabric-2 155 W
EX9200-32XS Line Card 610 W
Power Supply Capacity
100-120V AC Input 1,167 W
200-240 V AC Input 2,050 W
-40 to -72 V DC Input 2,400 W
Maximum number of line cards in a chassis
EX9200-40XS 3
EX9200-15C 2
EX9200-12QS 3
EX9200-32XS 2
EX9200-6QS 2
EX9200-2C-8XS 3
EX9200-40T 3
EX9200-40F 3
EX9200-MPC 3
[/properties]

[specifications]
Specifications EX9204-AC-BND2
Backplane capacity Up to 3 Tbps
Maximum fabric bandwidth/slot 1.5 Tbps/slot
Switch fabric throughput per slot 480 Gbps (EX9200-SF2)
RE DRAM 16 GB
RE CPU 1.73 GHz, quad-core
RE Storage 32 GB
[/specifications]

[accesories]
Line Cards
EX9200-15C 15x 100GbE/40GbE line card with MACsec AES-256 for EX9200
EX9200-40XS 40-port 10GbE SFP+ line card supporting MACsec AES-256 (requires SFL software license for activation); requires SFP+ optics sold separately
EX9200-12QS 12-port 40GbE QSFP+
[/accesories]

The Juniper EX9204-AC-BND2 is a bundled EX9200 Series Layer 3 managed Ethernet switch solution that combines the EX9204-BASE3B-AC chassis base system with an EX9200-32XS line card (shipped separately). The bundle includes a 4-slot chassis with passive midplane, 1x EX9200-RE2 Routing Engine, 1x EX9200-SF2 switch fabric module, 2 x 2520W AC power supplies, 1 fan tray, and required blank panels, providing a modular high-performance platform for enterprise core, aggregation, and data center deployments.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Bundle of EX9204-BASE3B-AC and EX9200-32XS line card
  • 4-slot chassis with passive midplane
  • 1 x routing engine (EX9200-RE2)
  • 1 x switch fabric-2 module
  • 2 x 2520W AC Power Supply
  • 1 x fan tray
  • all necessary blank panels
  • and EX9200-32XS line card
[/shortdesc] [properties]
Properties Juniper EX9204-AC-BND2
Description Bundle comprising of EX9204-BASE3B-AC and EX9200-32XS line card, shipped separately as two items.
Product Family EX9200 Series
Product Type Ethernet Switch
Total number of slots 4
Slots available for line cards 2 with fabric redundancy (3 without)
Routing Engine 1x EX9200-RE2
Switch Fabric Module 1x EX9200-SF2
Includes EX9200-32XS Line Card
Maximum GbE Port Density (wire speed)
1GbE 120
10GbE 144 (96)
25GbE 120
40GbE 30
100GbE 30
Fabric • Up to 3 Tbps backplane capacity
• Up to 1.5 Tbps (full duplex) per slot fabric capacity
• 1+1 fabric redundancy
Routing Engine • Master and backup Routing Engines (1+1 redundancy)
• Up to 64 gigabytes DRAM
• Dual front pluggable solid-state drive (SSD) (Up to 64 GB each)
• Console, auxiliary serial, and Ethernet management ports
• USB storage interface
Operating system Juniper Networks Junos operating system
Power Holds up to four power supplies:
• 100-120 V AC (2+2 redundancy)
• 200-240 V AC (1+1 redundancy)
• -40 to -72 V DC
Maximum power draw: 2,421 W (AC)
Cooling • Front-to-back airflow
• Hot-swappable fan tray with 1+1 redundancy
Dimensions (W x H x D) 17.5 x 8.7 x 27.75 in
(44.5 x 22.1 x 70.5 cm)
Weight (fully loaded) 128.0 lbs (58.1 kg)
Rack units 5 U
Power Consumption
EX9204 Base Typical Power 410 W
EX9204 Base Reserved Power 410 W
Additional Units Typical Power
EX9200 Routing Engine 90 W
EX9200 Switch Fabric-2 155 W
EX9200-32XS Line Card 550 W
Additional Units Maximum Power
EX9200 Routing Engine 90 W
EX9200 Switch Fabric-2 155 W
EX9200-32XS Line Card 610 W
Power Supply Capacity
100-120V AC Input 1,167 W
200-240 V AC Input 2,050 W
-40 to -72 V DC Input 2,400 W
Maximum number of line cards in a chassis
EX9200-40XS 3
EX9200-15C 2
EX9200-12QS 3
EX9200-32XS 2
EX9200-6QS 2
EX9200-2C-8XS 3
EX9200-40T 3
EX9200-40F 3
EX9200-MPC 3
[/properties]

[specifications]
Specifications EX9204-AC-BND2
Backplane capacity Up to 3 Tbps
Maximum fabric bandwidth/slot 1.5 Tbps/slot
Switch fabric throughput per slot 480 Gbps (EX9200-SF2)
RE DRAM 16 GB
RE CPU 1.73 GHz, quad-core
RE Storage 32 GB
[/specifications]

[accesories]
Line Cards
EX9200-15C 15x 100GbE/40GbE line card with MACsec AES-256 for EX9200
EX9200-40XS 40-port 10GbE SFP+ line card supporting MACsec AES-256 (requires SFL software license for activation); requires SFP+ optics sold separately
EX9200-12QS 12-port 40GbE QSFP+
[/accesories]

Juniper EX9204-AC-BND2 Switch Bundle

The Juniper EX9204-AC-BND2 is a bundled EX9200 Series Layer 3 managed Ethernet switch solution that combines the EX9204-BASE3B-AC chassis base system with an EX9200-32XS line card (shipped separately). The bundle includes a 4-slot chassis with passive midplane, 1x EX9200-RE2 Routing Engine, 1x EX9200-SF2 switch fabric module, 2 x 2520W AC power supplies, 1 fan tray, and required blank panels, providing a modular high-performance platform for enterprise core, aggregation, and data center deployments.
