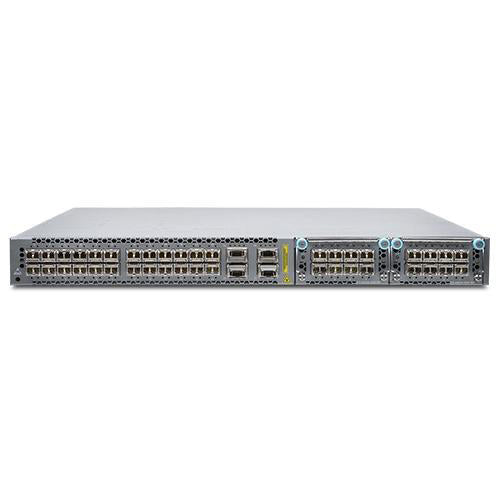

Juniper EX4600-40F-DC-AFI Switch
Juniper EX4600-40F-DC-AFI Switch

Juniper EX4600-40F-DC-AFI Switch

por Juniper
Desconto de 52%
R$ 282.828,00
R$ 135.757,44
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Switch
  • L3
  • Managed
  • 24 x 1 Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ (breakout compatible)
  • Back to front airflow
  • Dual DC power supplies
  • Rack-mountable
[/shortdesc]

[properties]

Properties Juniper EX4600-40F-DC-AFI
Description 24 SFP+/SFP ports, 4 QSFP+ ports, 2 expansion slots, redundant fans, 2 DC power supplies, 2 power cords, 4-post rack mount kit, and back to front airflow
Product Family EX4600 Series
Product Type Ethernet Switch
Dimensions (HxWxD) Inches 1.72 x 17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
Weight 21.7 lb (9.84 kg) with PSUs and fans installed
Interface Options
1GbE SFP 24(40) (with 10GbE expansion modules)
10GbE SFP+ 24(40/72) (with 10GbE expansion modules / with fixed 40GbE ports using breakout cables)
40GbE QSFP+ 4(12) (with expansion modules)
Each fixed QSFP+ port can be configured as a 4x10GbE interface
Each QSFP+ port can be configured as a 40 Gbps port
USB port
Console port
2 management ports: 1 RJ-45 and 1 SFP
Power Consumption
Configuration: Fixed 10GbE ports with 10G-USR optics, all ports forwarding (line rate), <10 m
4 fixed 40GbE ports with 40G-SR4 optics
1 4x40GbE QIC card with 4 40G-SR4 optics
1 8x10GbE QIC card with 8 10G-USR optics, all ports forwarding (line rate), <10 m
Dual power supplies
EX4600-40F-AFO 279 W
EX4600-40F-AFI 285 W
EX4600-40F-DC-AFO 392 W
EX4600-40F-DC-AFI 320 W
Airflow Back-to-front cooling
Redundant variable-speed fans to reduce power draw
Power Supply and Fan Modules Dual redundant (1+1) and hot-pluggable power supplies

-36 to -72 V DC power

Redundant (N+1) and hot-pluggable fan modules for front-to-back and back-to-front airflow

[/properties]

[specifications]

Specifications EX4600-40F-DC-AFI
Switching capacity 720 Gbps (unidirectional) / 1.44 Tbps (bidirectional)
Layer 2/Layer 3 throughput (maximum with 64 byte packets) 1,071 Mpps (wire speed)
Switching mode Cut-through and store-and-forward
Predicted mean time between failures (MTBF) 150,000 hours
Predicted FIT rate 4,987
Rack Installation Kit Versatile four-post mounting options for 19-in server rack or datacom rack
MAC addresses per system 288,000
VLAN Ids 4,091
Number of ports per LAG 32
IPv4 unicast routes 128,000 prefixes; 208,000 host routes
IPv4 multicast routes 104,000
IPv6 multicast routes 52,000
IPv6 unicast routes 64,000 prefixes
Address Resolution Protocol (ARP) entries 48,000
Jumbo frame 9,216 bytes
Software Specifications
Layer 2 Features STP (802.1D), RSTP (802.1w), MSTP (802.1s), BPDU/loop/root protection, 802.1Q VLAN trunking, RVI, QinQ, VLAN translation, LACP (802.3ad), LLDP (802.1AB), MAC filtering and sticky MAC
Layer 3 Features (IPv4/IPv6) Static routing, RIP/OSPF/IS-IS/BGP (IPv4/IPv6 variants), VRRP/VRRPv3, BFD, DHCP relay, multicast (IGMP/PIM-SM/MSDP), GRE, IPv6 CoS, 6PE, and virtual router support
Quality of Service (QoS) L2/L3 QoS classification, rewrite and queuing; ingress/egress policing; egress shaping; 12 hardware queues per port; LLQ/SDWRR/WRED; 802.1p remarking; DCBX/FCoE support
Access Control Lists (ACLs) PACL, VACL, RACL (ingress/egress), L2-L4 ACL, IPv6 ACL, firewall filters on loopback and management interfaces
Virtual Chassis Supports up to 10 switches as a single logical device; 10GbE/40GbE Virtual Chassis ports; GRES, NSR, NSB, QoS on VC ports, and mixed EX4300-EX4600 support (data center only)
High Availability ISSU (standalone and MC-LAG), BFD, UFD, GRES, NSB, NSR, NSSU (Virtual Chassis)
MPLS VRF-Lite, LSPs (RSVP/LDP), L2VPN/L3VPN, 6PE, MPLS OAM, FRR, node/link protection
Device Management and Operations J-Web, role-based CLI, console/Telnet/SSH, SNMP v1/v2/v3, Junos XML, sFlow v5, DHCP server/relay, ZTP, Puppet, Chef, OpenStack plug-in, and Python/TCL/Perl scripting
Management and Analytics Platforms Juniper Mist Wired Assurance for Campus; Junos Space Network Director for Campus; Junos Space Management
Operating temperature 32° to 104° F (0° to 40° C)
Storage temperature -40° to 158° F (-40° to 70° C)
Operating altitude up to 2,000
Relative humidity operating 5% to 90% (noncondensing)
Relative humidity non-operating 0% to 95% (noncondensing)

[/specifications]

[accesories]

Modules and Spares
QFX-EM-4Q 4-port QSFP+ expansion module for EX4600
EX4600-EM-8F 8-port SFP+/SFP expansion module for EX4600
QFX5100-FAN-AFI Back-to-front airflow fan module for EX4600
QFX5100-EM-BLNK Blank module for EX4600
Spare Chassis
EX4600-40F-S Spare chassis, 24 SFP+/SFP ports, 4 QSFP+ ports, 2 expansion slots, redundant fans, front-to-back airflow (optics, power supplies and fans not included and sold separately)
Optics and Transceivers
EX-SFP-1GE-T SFP 10/100/1000BASE-T Copper Transceiver Module for up to 100 m transmission on Cat5
EX-SFP-1GE-SX SFP 1000BASE-SX Gigabit Ethernet Optics, 850 nm for up to 550 m transmission on MMF
EX-SFP-10GE-SR SFP+ 10GBASE-SR 10-Gigabit Ethernet Optics, 850 nm for up to 300 m transmission on MMF
EX-SFP-10GE-LR SFP+ 10GBASE-LR 10-Gigabit Ethernet Optics, 1310 nm for 10 km transmission on SMF
QFX-QSFP-40G-SR4 QSFP+ 40GBASE-SR4 40 Gigabit Optics, 850 nm for up to 150 m transmission on MMF
JNP-QSFP-40G-LR4 QSFP+ 40GBASE-LR4 40 Gigabit Optics, 1310 nm for up to 10 km transmission on SMF
EX4600-AFL EX4600 Advanced feature license for IS-IS, BGP, and MPLS
EX-QFX-MACSEC-AGG MACsec Software License for EX4600 as a campus aggregation switch

[/accesories]

The Juniper EX4600-40F-DC-AFI is a high-performance 1U Layer 3 managed Ethernet switch designed for campus distribution, data center top-of-rack, and service provider aggregation deployments. It provides 24 fixed SFP/SFP+ ports, 4 fixed QSFP+ ports, dual expansion slots, dual redundant DC power supplies, and back-to-front airflow, with support for Virtual Chassis, MPLS, advanced QoS, and high availability features.
