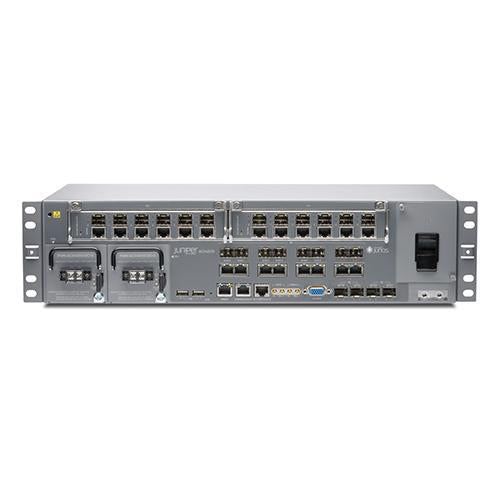

Juniper CHAS-ACX4000-S Spare Chassis
Juniper CHAS-ACX4000-S Spare Chassis

Juniper CHAS-ACX4000-S Spare Chassis

por Juniper
Desconto de 30%
R$ 163.296,00
R$ 114.312,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Converged Access Gateway‚ Spare Chassis
  • 2 x Open slot
  • No power supplies
  • No fan tray
[/shortdesc] [properties]
Properties Juniper CHAS-ACX4000-S
Description Converged Access Gateway, Spare Chassis , 2 x Open slot, No power supplies, No fan tray
Product Family ACX4000 Series
Product Type Spare Chassis
Open slots 2
Built-In Interface Options
TDM (T1/E1) Up to 32 (with MICs)
OC3 (STM1)/OC12 (STM4) Up to 8/2 (with MICs)
GbE (combo) 8 (PoE++ support on 2 ports)
GbE (SFP) Up to 14 (with MICs)
10GbE (SFP+) 2
Console port RJ-45 connector
Management Ethernet port RJ-45 connector
Dimension (WxHxD) 17.5 x 4.35 x 9.25 in (44.5 x 11 x 23.5 cm)
Weight (lb/kg) 23.8 lb (10.82 kg) (Fully configured with two power supply units, two MICs)
Power No power supplies
Rack Unit 1 U
[/properties][specifications]
Specifications CHAS-ACX4000-S
System Throughput Up to 60 Gbps
Operating temperature -40° to 149° F (-40° to 65° C)
Humidity 95% RH noncondensing
Platform Features
Layer 2 IEEE 802.3 bridging
IEEE 802.1q
IEEE 802.1ad (Q-in-Q)
VLAN id manipulation for outer/inner: swap/pop/push
Rapid Spanning Tree Protocol (RSTP)/VLAN Spanning Tree Protocol (VSTP)/Multiple Spanning Tree Protocol (MSTP)
Link Aggregation Control Protocol (LACP)
Enhanced load balancing based on L2-L4 header info
Link Layer Discovery Protocol (LLDP)
Layer 2 bridge protocol data unit (BPDU) tunneling/MAC rewrite
Layer 3 IPv4
IPv6
RPF
Equal-cost multipath (ECMP)
Enhanced load balancing based on L2-L4 header info
OSPF
IS-IS
BGP
Indirect/composite next hop
MPLS and Seamless MPLS RSVP
LDP
Path Computation Element Protocol (PCEP)
RSVP-TE
BGP-LU
LDP-RSVP
RSVP fast reroute (FRR)
Services IEEE 802.3 bridge domain
PWE (T-LDP)
L2VPN (BGP)
Layer 3 VPN
Integrated routing and bridging (IRB)
Stateless filters L2-L4
Circuit emulation SAToP/CESoPSN/ATM o MPLS
Class of Service (CoS) 8 queues per port with schedulers and shaping
Classification based on 802.1p, DiffServ code point(DSCP), IP-precedence, Exp bit
Single-rate policer ingress/egress
Two-rate three-color policer ingress/egress
Per-Port Egress Shaping
OAM and SLA Management Bidirectional Forwarding Detection (BFD)
Connectivity fault management (CFM)
Y.1731
RFC2544
TWAMP
Multicast Protocol Independent Multicast (PIM)
Internet Group Management Protocol (IGMP)
IGMP snooping
Timing and Sync BITS/1pps/10MHz
1588v2 BC
1588v2 over IP
1588v2 over Ethernet
Synchronous Ethernet
Hybrid mode
Security L2 storm control
Configuration, Management and Automation CLI
NETCONF
NMP v2/v3
SLAX/Python on-box scripting tools
ZTD
YANG
Safety Approvals CAN/CSA-C22.2 No. 60950-1
UL 60950-1
EN 60950-1
IEC 60950-1CB Scheme
EN 60825-1
EMC AS/NZS CISPR22 Class A
EN55022 Class A
VCCI Class A
FCC Part 15 Class A
IECS-003 Issue 4
BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
KN 22, Class A
CISPR 32/EN55032: 2012 European Radiated Emissions Class A
EN-61000-4-6 Low Frequency Common Immunity
EN-61000-4-11 Voltage Dips and Sags
CISPR 24/EN55024 Information Technology Equipment Immunity Characteristics
ETSI (European Telecommunications Standardization Institute) EN 300 386 V1.6.1 Telecommunication Network Equipment, Electromagnetic Compatibility Requirements
ETSI EN 300 019-2-1 (2000) Storage, Class T1.2
ETSI EN 300 019-2-2 (1999) Transportation, Class T2.3
ETSI EN 300 019-2-4 (2003) Stationary Use at Non-Weather Protected Locations, Class 4.1
ETSI 300753 (1997) Acoustic Noise Emitted by Telecommunications Equipment
NEBS SR-3580 NEBS Criteria Levels (Level 3 Compliance)
GR-63-CORE: NEBS, Physical Protection
GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 compliant)
GR-3108-CORE: Generic Requirements for Network Equipment in the Outside Plant (OSP)
Telecomm Compliance T1 and XDSL Interfaces FCC Part 68 (T1 Only)
Industry Canada CS-03
JATE Green Book
E1 Interface TBR 12/13
ACA TS016
G.703
RTTE Directive 1995/5/EC
Device management: NETCONF, CLI, SNMP v1/v2/v3
End-to-end provisioning of E-Line, emulated LAN (ELAN), Layer 3 VPN (L3VPN), OAM, class of service (CoS)
Device and service-level fault management
Device and service-level performance management
Metro Ethernet Forum (MEF) MEF CE2.0 compliant
[/specifications][accesories]
Accessories
PKG-1U-ACXS Package Spare for ACX 1RU Chassis
RACK-MNT-1RU-19-S ACX Series 1 RU 19" Mounting Bracket"
RACK-MNT-1RU-23-S ACX Series 1 RU 23" Mounting Bracket"
CBL-PWR-C15M-HITEMP-US Power Cord, AC, C15M
[/accesories]

Juniper ACX4000 Universal Metro Router is a 2.5 U, actively cooled access router that is environmentally hardened for field deployment. This versatile, high-performance mobile access platform runs on the Junos operating system.
