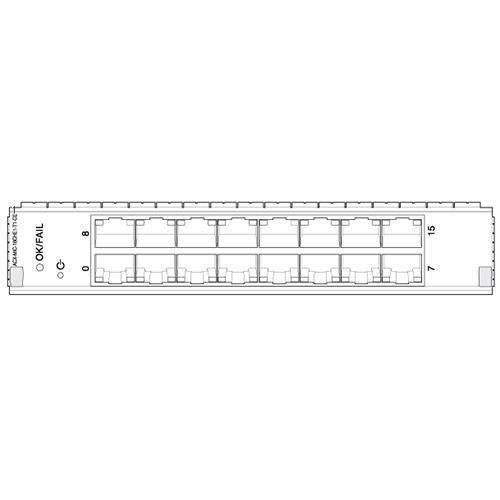

Juniper ACX-MIC-16CHE1-T1-CE Interface Card
Juniper ACX-MIC-16CHE1-T1-CE Interface Card

Juniper ACX-MIC-16CHE1-T1-CE Interface Card

por Juniper
Desconto de 30%
R$ 174.180,00
R$ 121.932,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Converged Access Gateway Base Unit
  • 16-port channelized T1/E1 MIC
  • Channelized E1 down to DS0
  • RJ48 connector
  • for ACX4000
  • Supported on Fortius-M only
[/shortdesc]

[properties]

Properties Juniper ACX-MIC-16CHE1-T1-CE
Description 16-port channelized T1/E1 Modular Interface Card with RJ48 connector for Juniper ACX4000 Series, supporting channelized E1 down to DS0. Supported on Fortius-M only.
Product Family ACX4000 Series
Product Type Modular Interface Card
Ports 16 E1 or T1 ports

Per-MIC E1/T1 framing

DS1 channelization per MIC:

- 1 DS1 channel

- 24 DS0 channels

E1 channelization per PIC:

- 1 E1 channel

- 32 DS0 channels
Weight (lb/kg) 1.57 lb (0.71 kg)
Power requirement 2.21 A @ 12 V (26.55 W)

[/properties][specifications]

Specifications Juniper ACX-MIC-16CHE1-T1-CE
Software Features Full bit error rate test (BERT)

DS1 and E1 interfaces are selectable on a per-port granularity

Per-port framing is not supported

You can configure the following framing modes using the CLI:

- T1SF, ESF, D4/superframe, ESF (extended superframe)

- E1G704, G704no-crc4, unframed

Local, remote, and per-port loopback diagnostics

Encapsulations:

- Pseudowire Emulation Edge to Edge (PWE3) Architecture (RFC 3985)

- Requirements for Pseudowire Emulation Edge to Edge (PWE3) (RFC 3916)

- Structure-Agnostic Time Division Multiplexing (TDM) over Packet (SAToP) (RFC 4553)

- Structure-Aware Time Division Multiplexed (TDM) Circuit Emulation Service over Packet-Switched Network (CESoPSN) (RFC 5086)

- Pseudowire Emulation Edge to Edge (PWE3) Control Word for Use over an MPLS PSN (RFC 4385)
Operating temperature -40° to 149° F (-40° to 65° C)
Humidity 95% RH noncondensing
Safety Approvals CAN/CSA-C22.2 No. 60950-1
UL 60950-1
EN 60950-1
IEC 60950-1CB Scheme
EN 60825-1
EMC AS/NZS CISPR22 Class A
EN55022 Class A
VCCI Class A
FCC Part 15 Class A
IECS-003 Issue 4
BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
KN 22, Class A
CISPR 32/EN55032: 2012 European Radiated Emissions Class A
EN-61000-4-6 Low Frequency Common Immunity
EN-61000-4-11 Voltage Dips and Sags
CISPR 24/EN55024 Information Technology Equipment Immunity Characteristics
ETSI (European Telecommunications Standardization Institute) EN 300 386 V1.6.1 Telecommunication Network Equipment, Electromagnetic Compatibility Requirements
ETSI EN 300 019-2-1 (2000) Storage, Class T1.2
ETSI EN 300 019-2-2 (1999) Transportation, Class T2.3
ETSI EN 300 019-2-4 (2003) Stationary Use at Non-Weather Protected Locations, Class 4.1
ETSI 300753 (1997) Acoustic Noise Emitted by Telecommunications Equipment
NEBS SR-3580 NEBS Criteria Levels (Level 3 Compliance)
GR-63-CORE: NEBS, Physical Protection
GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 compliant)
GR-3108-CORE: Generic Requirements for Network Equipment in the Outside Plant (OSP)
Telecomm Compliance T1 and XDSL Interfaces FCC Part 68 (T1 Only)
Industry Canada CS-03
JATE Green Book
E1 Interface TBR 12/13
ACA TS016
G.703
RTTE Directive 1995/5/EC
Device management: NETCONF, CLI, SNMP v1/v2/v3
End-to-end provisioning of E-Line, emulated LAN (ELAN), Layer 3 VPN (L3VPN), OAM, class of service (CoS)
Device and service-level fault management
Device and service-level performance management
Metro Ethernet Forum (MEF) MEF CE2.0 compliant

[/specifications]

Juniper ACX-MIC-16CHE1-T1-CE is a 16-port channelized T1/E1 Modular Interface Card designed for the Juniper ACX4000 Series. It supports channelized E1 connectivity down to DS0 through an RJ48 interface, making it suitable for metro and access network deployments that require flexible circuit-based service delivery. This MIC is supported on Fortius-M only.
