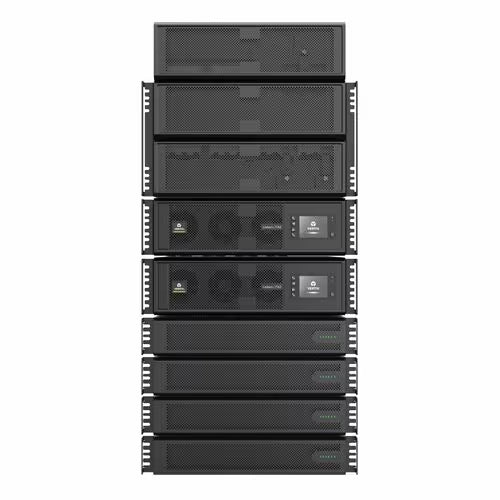

Vertiv Liebert ITA2LI-20KRT208V23URN ITA2 Series 20kVA Rack/Tower UPS features double conversion online technology, three-phase operation, 20kVA/20kW load capacity, 384V DC lithium-ion battery system, 93% efficiency, and 0 ns transfer time. This rack/tower UPS includes LCD display, USB connectivity, SNMP/Modbus network management, hot-swappable maintenance-free batteries, 208V/220V input voltage support, and multiple protection features for servers, network equipment, medical systems, and other critical applications.
Specifications
Model Number: ITA2LI-20KRT208V23UR
Brand: Vertiv
Alt Part Number(s): ITA2LI-20KRT208V23UR
Product Type: UPS
Technical Description
Brand: Vertiv
Model: ITA2LI-20KRT208V23UR
Display: LCD
Maximum Operating Temperature: 122°F (50°C)
USB: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Characteristics: Sealed/Maintenance-free/User Replaceable/Hot-swapable
DC System Voltage: 384 V DC
Package Contents: ITA2 20kVA Rack/Tower UPS; Tower Stand; USB Cable; Quick Installation Guide; Safety Instructions; Adjustable 4-Post Rack Mounting Kit; Copper Jumpers for Single Input Configuration; Shared Battery Connector Cable (for redundancy/paralleling UPS with VRLA Batteries; Vertiv™ Power Insight Management Software (free download from Vertiv.com); IS-Unity DP Communication Card
Certifications & Standards: UL/CSA; UL&cUL (UL 1778 5th Edition, CSA No.22.2 107.3); FCC Part 15, Class A; ANSI C62.41 Category A
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Weight (Approximate): 66.10 lb
Form Factor: Rack/Tower
Height: 5.1"
Width: 16.9"
Depth: 25.8"
Network Management: Relay Card; SNMP/Modbus; Intelligent Card Slot
Alarm: Low Battery; Output Overload; Replace Battery
Product Type: Double Conversion Online UPS
Manufacturer Part Number: ITA2LI-20KRT208V23URN
Manufacturer Website Address: http://www.vertiv.com/
Manufacturer: Vertiv
Product Name: ITA2 20kVA Rack/tower UPS
Product Series: ITA2
Brand Name: Vertiv Liebert
Input Voltage: 220 V AC; 208 V AC
Output Voltage: 127 V AC; 120 V AC; 220 V AC; 208 V AC
Input Voltage Range: 70 V AC - 96 V AC; 96 V AC - 156 V AC
Output Frequency: 60 Hz; 50 Hz
Input Frequency: 50 Hz; 60 Hz
Load Capacity (VA): 20 kVA
Load Capacity (Watt): 20 kW
Input Power Factor: 0.99
Output Power Factor: 1
Application/Usage: Automated Teller Machine (ATM); Branch Office; CCTV Camera; VoIP; Storage System; Server Room; Security System; POS Equipment; Office; Network Equipment; Network Closet; Medical; Lab Equipment; IT System; ISDN; Cellular System
Efficiency: 93%
Protection Type: Lightning; Surge
Phase: Three Phase
Transfer Time: 0 ns
Crest Factor: 3:1
