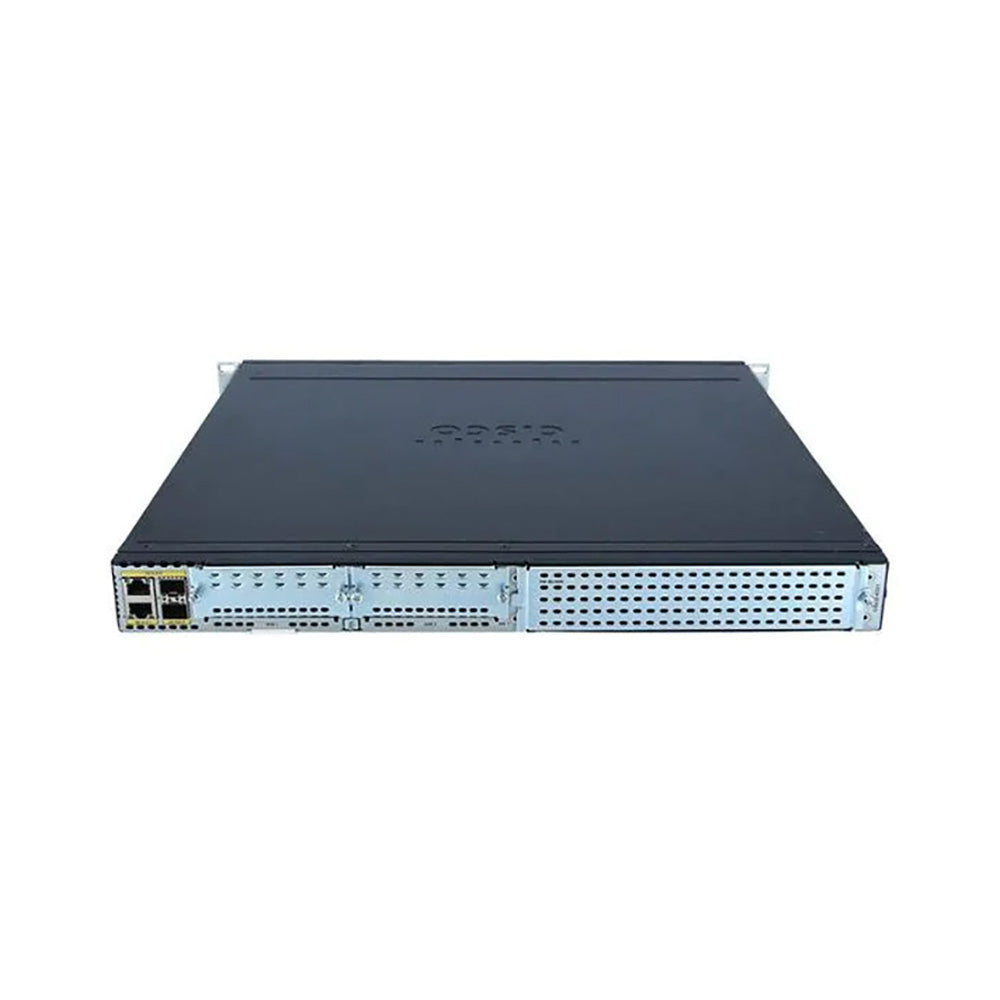

ISR4331-AX/K9
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- ISR4331-AX/K9 Routers Overview
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Cisco ISR4331-AX/K9 is an Integrated Services Router that delivers 100 Mbps to 300 Mbps aggregate throughput. It offers one Enhanced service-module (SM-X) slot, which supports both single- and double-wide service modules, providing flexibility in deployment options. The ISR4331-AX/K9 comes with the Advanced Service Bundle, enhancing its capabilities for enterprise environments. This router features 3 total onboard WAN or LAN 10/100/1000 ports, including 2 RJ-45-based ports and 2 SFP-based ports, ensuring robust connectivity. With 1 enhanced service-module (SM-X) slot, 2 NIM (Network Interface Modules) slots, and 1 onboard ISC slot, it offers versatility for various configurations. It is equipped with 4 GB of RAM (expandable to 16 GB) and 4 GB of flash memory (expandable to 16 GB), providing ample storage for your network needs. Internal AC and PoE power supply options and a rack-mountable 1RU form factor ensure easy integration into your existing setup. Shop Cisco Routers like the ISR4331-AX/K9 for reliable performance and flexibility with Cisco Enterprise Branch Routers in a rack-mountable design.
Recommended modules and accessories
Items |
Models |
Descriptions |
Console and Auxillary Cables |
CAB-AUX-RJ45 | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
| CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 | |
| CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | |
| CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | |
Licenses |
L-SL-4330-APP-K9 |
Cisco AppX license L-SL-4330-APP-K9= with 750 conns/ISRWAAS or 1300 conns/vWAAS for ISR4331 |
Network Interface Modules |
NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
| NIM-2CE1T1-PRI | Cisco Multiflex Trunk Voice and WAN network interface module | |
| NIM-4E/M | Analog voice network interface card (ear and mouth) | |
| NIM-2FXS | Cisco Analog voice network interface card NIM-2FXS | |
| NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
| NIM-8MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
SFPs for On-Board GE Ports |
GLC-SX-MMD | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Compare to Similar Items
Models |
ISR4331/K9 |
ISR4331-AX/K9 |
| Bundle | None | Advanced Service Bundle |
| Aggregate Throughput | 100 Mbps to 300 Mbps | 100 Mbps to 300 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 | 3 |
| RJ-45-based ports | 2 | 2 |
| SFP-based ports | 2 | 2 |
| Enhanced service-module slots | 1 | 1 |
| NIM slots | 2 | 2 |
| Onboard ISC slot | 1 | 1 |
| Rack height | 1 | 1 |
Specifications
ISR4331-AX/K9 Specifications |
|
| Aggregate Throughput (Default) | 100 Mbps |
| Aggregate Throughput (Performance License) | 300 Mbps |
| Aggregate CEF Only[5] Throughput (Boost License) | Over 2Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| Total onboard WAN or LAN 10Gbps ports | - |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service-module slots | 1 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
|
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) |
16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
|
Default memory DDR3 ECC DRAM (control/services plane) |
NA |
|
Maximum memory DDR3 ECC DRAM (control/services plane) |
NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 16 GB |
| External USB 2.0 slots (type A) | 1 |
|
USB console port -type B mini (up to 115.2 kbps) |
1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC and PoE, DC* (*4331-DC) |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| Input Voltage | 24 – 60V |
| Input Current | 14 - 5A |
| AC input frequency | 47 to 63 Hz |
|
AC input current range, AC power supply (maximum) |
3 to 1.3A |
|
Dimensions (H x W x D) |
1.75 x 17.25 x 17.25 in(44.45 x 438.15 x 438.15 mm) |
| Rack height | 1 Rack Unit (1RU) |
| Typical weight (fully loaded with modules) | 16.1 lb (7.3 kg) |
| Packaging Weight | 4.6 lb (2.1 kg) |
| Airflow | I/O side to bezel side |
| MTBF (Hours) | 587250 |
| Temperature | 32 to 104°F(0 to 40°C) |
| Altitude | 0 – 6,560 ft.(0 – 2,000 m) |
