- IR1101 Routers Overview
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas

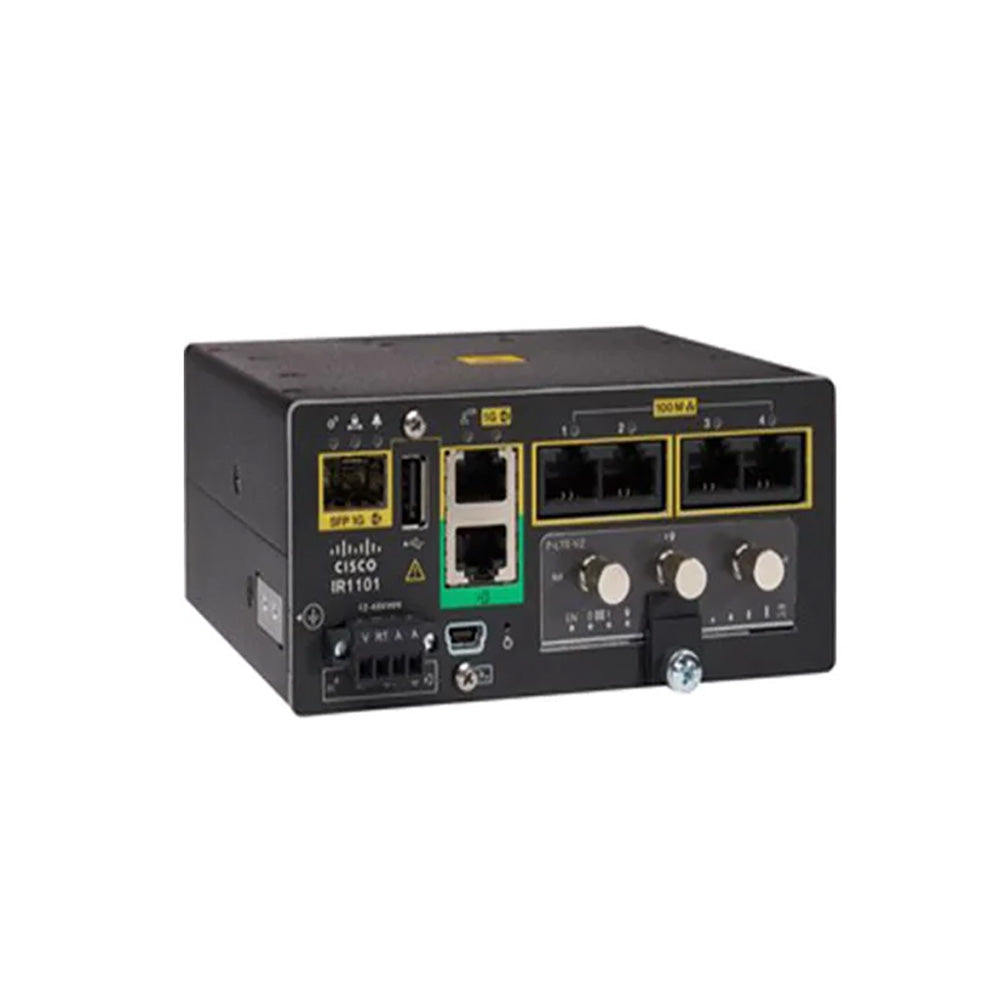

The Cisco IR1101 is a rugged, modularized industrial integrated services router designed for the most demanding Industrial IoT (IIoT) deployments. Engineered to provide stability and performance even in extreme environments, the IR1101 ensures reliability for industrial networks that require high resilience. Its modular architecture supports various configurations to meet diverse industrial use cases, making it a versatile solution for networking in industrial settings.
Equipped with 4 GB of DRAM (default and maximum) and 4 GB (usable) of Flash memory, the IR1101 provides robust storage and memory capabilities, ensuring smooth operation in critical applications. With an IP30 ingress protection rating, it is protected against solid objects and low-pressure water, offering durability in tough environments.
This Cisco IR1101 Router is perfect for industries seeking flexibility and security in their IoT networks, making it an essential piece for managing connected operations in rugged industrial environments.
Compare to Similar Items
Model |
Differences |
IR809G-LTE-GA-K9 |
Non-modular, less robust in extreme conditions |
IR829GW-LTE-GA-AK9 |
More features but larger form factor |
IR807-4T1T-LTE-GA |
Less features, but more compact size |
Recommended Accessories
Model |
Accessory |
IR1101-ROUTER-KIT |
Accessory Kit for IR1101-K9 |
IR1101-POE-INJ |
Power Over Ethernet Injector for IR1101-K9 |
IR1101-ACC-KIT |
Mounting Hardware for IR1101-K9 |
Specifications
IR1101-K9 Specifications |
|
| Cisco IOS Software requirements | ● Cisco IOS XE Software: Universal Cisco IOS Software image ● Cisco IOS XE Software Release 16.10.1 or later |
| IPv4 and IPv6 services features | ● Routing Information Protocol Versions 1 and 2 (RIPv1 and RIPv2) ● Generic Routing Encapsulation (GRE) and Multipoint GRE (MGRE) ● Standard 802.1d Spanning Tree Protocol (STP) ● Network Address Translation (NAT) ● Dynamic Host Configuration Protocol (DHCP) server, relay, and client ● Dynamic DNS (DDNS) ● DNS proxy ● DNS spoofing ● Access Control Lists (ACLs) ● IPv4 and IPv6 multicast ● IP Service-Level Agreement (IP SLA) ● Open Shortest Path First (OSPFv2 and OSPFv3) ● Border Gateway Protocol (BGP) ● Enhanced Interior Gateway Routing Protocol (EIGRP) ● Virtual Route Forwarding (VRF) Lite ● Next-Hop Resolution Protocol (NHRP) ● Serial data encapsulation and relay ● L2TPv3 over sub-interfaces and VLAN |
| Default and maximum DRAM | 4 GB |
| Default and maximum Flash memory | 4 GB (usable) |
| Ingress protection rating | IP30 |
| Physical dimensions (H x W x D) Chassis | 2.36 in. x 5.22 in. x 4.92 in. (60 x 132.5 x 124.9 mm) |
| Weight (Chassis) | 2.25 lbs (1.02 kg) |
| Mounting options | Panel, wall, and din rail (vertical and horizontal) mount |
| Power specifications | Nominal voltage: +/-12V to +/-48V DCMinimum and maximum input voltage: 9.6-60V DCMaximum and minimum input current: 1.24A (9.6V DC) and 0.26A (60V DC) |
| Power consumption | At idle: 6.6WTypical: 9.8WMaximum: 12WAdditional 10W (typical) with expansion module and 2nd cellular |
| Console | Mini type-B USB |
| WAN interfaces | ● Combo 10/100/1000 Gigabit Ethernet port (RJ45 and SFP) on the base platform ● An additional 10/100/1000 Gigabit Ethernet SFP on the expansion module. Refer to Table 8 for supported SFPs ● 5G/LTE: Modular with options for single and dual active LTE and LTE-Advanced |
| LAN interfaces | ● Four 10/100BASE-T Fast Ethernet ports |
| Input and output | ● ALARM input port |
| Environmental operating temperature range | –40 to 140°F (–40 to 60°C) in a sealed NEMA cabinet with no airflow–40 to 158°F (–40 to 70°C) in a vented cabinet with 40 Linear Feet per Minute (LFM) of air–40 to 167°F (–40 to 75°C) in a forced air enclosure with 200 LFM of airType tested at 85°C for 16 hours |
| Operating altitude | 40°C up to 13,800 ft (operating) per IEC 68-2-41 |
| Non-operating temperature | -40 to 185°F (-40 to 85°C) |
