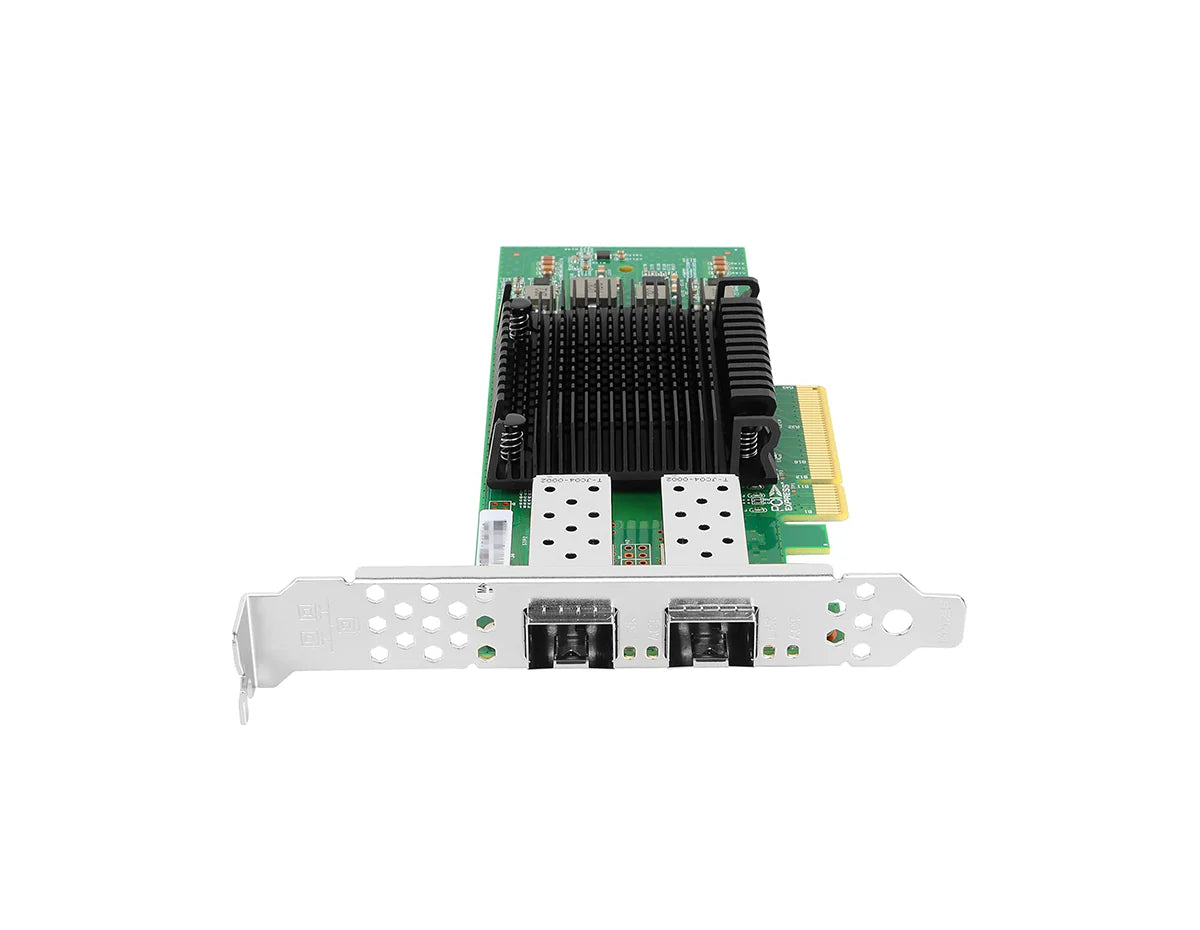

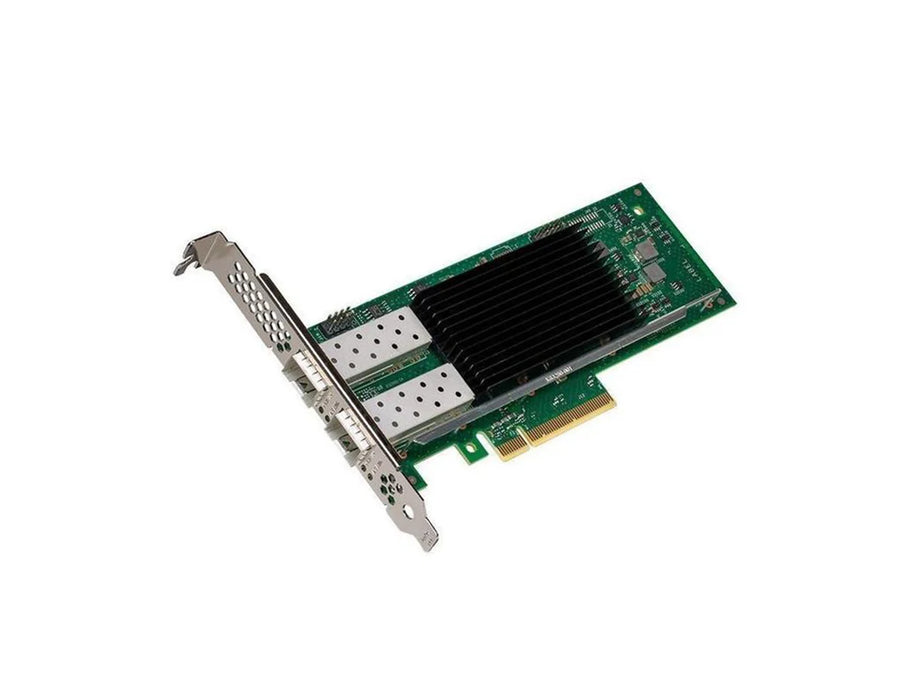

Intel Ethernet Network Adapter E810-XXVDA2 Dual 25GbE Network Adapter
Clique ou role para ampliar
Toque ou belisque para ampliar
Intel Ethernet Network Adapter E810-XXVDA2 Dual 25GbE Network Adapter
Intel Ethernet Network Adapter E810-XXVDA2 Dual 25GbE Network Adapter

Intel Ethernet Network Adapter E810-XXVDA2 Dual 25GbE Network Adapter

por Intel
R$ 2.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Dual 25GbE SFP28 ports, PCIe 4.0 x8, RDMA iWARP and RoCEv2, ADQ and DDP acceleration, IEEE 1588 PTP [/shortdesc]

[properties]

Model Intel Ethernet Network Adapter E810-XXVDA2
SKU E810XXVDA2
Product Type Ethernet Network Adapter
Series Intel Ethernet 800 Series
Ports Dual Port SFP28
Data Rate Supported 25/10/1GbE per port
Bus Type PCI Express (PCIe) 4.0 x8
Controller Intel Ethernet Controller E810-XXVAM2
RDMA Support iWARP and RoCEv2
Time Synchronization IEEE 1588 Precision Time Protocol (PTP) v1 and v2
Bracket Full-height bracket installed; Low-profile bracket included in package
Dimensions 167 mm x 68 mm (6.57 in x 2.67 in)
Hardware Certifications FCC B, UL, CE, VCCI, BSMI, RCM, KCC
RoHS Compliant with EU RoHS Directive 2011/65/EU and amendments (e.g. 2015/863/EU)
Operating Temperature 0 C to 55 C (32 F to 131 F)
Storage Temperature -40 C to 70 C (-40 F to 158 F)
Storage Humidity Maximum: 90% non-condensing relative humidity at 35 C

[/properties]

[specifications]

Supported Physical Layer Interfaces 25GBASE-CR (Twinax), 25GBASE-SR, 25GBASE-LR, 10GBASE-SR, 10GBASE-LR, SFP+ Twinax
SFP28 Max Power Per Port 1.5 W
Power Consumption (DACs) 25GbE Max: Typical 8.9 W, Max 9.8 W; Idle: Typical 8.0 W, Max 8.8 W
Power Consumption (Optics) 25GbE Max: Typical 12.1 W, Max 13.7 W; Idle: Typical 11.6 W, Max 12.6 W
LED Indicators ACTIVITY (blinking); LINK SPEED (green = 25GbE; amber = less than 25GbE; off = no link)
Airflow (Extended Temp 1.5W Optics) 100 LFM at 45 C; 100 LFM at 55 C; 150 LFM at 60 C
Airflow (Commercial Temp DAC) 100 LFM at 45 C; 100 LFM at 55 C; 150 LFM at 60 C
Airflow (Commercial Temp 1.5W Optics) 150 LFM at 45 C; 350 LFM at 55 C
Tx/Rx Queues 2048 Tx queues and 2048 Rx queues with Dynamic Allocation
Interrupt Vectors 2048 vectors; 20M interrupts/sec
SR-IOV Virtual Functions Up to 256 SR-IOV Virtual Functions
VLAN Support Support for up to 4096 VLAN tags; Tag insertion, stripping and filtering
Tunneling / Encapsulation VXLAN, GENEVE, NVGRE, MPLS, VXLAN-GPE with NSH
Security Hardware-based Root of Trust; NIST 800-193 Platform Firmware Resiliency (Protect, Detect, Recover)
Pre-Boot Signed UEFI option ROM compatible with HTTPS boot
Power Management PCI power management states D3hot and D3cold

[/specifications]

The Intel Ethernet Network Adapter E810-XXVDA2 is a dual-port 10/25GbE PCIe 4.0 adapter engineered for high-performance data centers. Built on the Intel Ethernet 800 Series architecture, it delivers predictable, low-latency performance through Application Device Queues (ADQ) and Dynamic Device Personalization (DDP). Designed for cloud, enterprise, storage, and communications deployments, it enhances packet processing efficiency while significantly reducing CPU overhead.

  • Dual 25GbE SFP28 Connectivity: Two high-speed SFP28 ports support 25/10/1GbE per port, enabling scalable bandwidth for virtualization, storage, and high-density server environments.
  • Application Device Queues (ADQ): Dedicated traffic queues reduce jitter and latency, improving workload predictability and SLA compliance in modern data centers.
  • Dynamic Device Personalization (DDP): Protocol-specific acceleration enhances packet processing efficiency and lowers CPU utilization for NFV and cloud workloads.
  • RDMA over Converged Ethernet: Supports both iWARP and RoCEv2 for high-throughput, low-latency storage and NVMe over Fabrics (NVMe-oF) environments.
  • Precision Time Protocol Support: IEEE 1588 PTP v1 and v2 enables nanosecond-level synchronization for 5G RAN, financial services, and industrial applications.
  • Cloud data center compute nodes and virtualization
  • High-performance storage and NVMe over Fabrics
  • NFV and DPDK-accelerated packet processing
  • 5G RAN deployments and time-sensitive networking
  • Enterprise server environments requiring high predictability
  • Ports: 2 x SFP28
  • Data Rate: 25/10/1GbE per port
  • Host Interface: PCIe 4.0 x8
  • Controller: Intel Ethernet Controller E810-XXVAM2
  • RDMA Support: iWARP and RoCEv2 (256K Queue Pairs)
  • Virtualization: SR-IOV up to 256 Virtual Functions
  • Time Sync: IEEE 1588 PTP v1 and v2
  • Power Consumption: Up to 13.7W (Max) with optics
  • Form Factor: Full-height and Low-profile brackets included
  • Dimensions: 167 mm x 68 mm

Deploy the Intel E810-XXVDA2 to reduce latency, increase throughput, and modernize your data center fabric. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Dual 25GbE SFP28 ports, PCIe 4.0 x8, RDMA iWARP and RoCEv2, ADQ and DDP acceleration, IEEE 1588 PTP [/shortdesc]

[properties]

Model Intel Ethernet Network Adapter E810-XXVDA2
SKU E810XXVDA2
Product Type Ethernet Network Adapter
Series Intel Ethernet 800 Series
Ports Dual Port SFP28
Data Rate Supported 25/10/1GbE per port
Bus Type PCI Express (PCIe) 4.0 x8
Controller Intel Ethernet Controller E810-XXVAM2
RDMA Support iWARP and RoCEv2
Time Synchronization IEEE 1588 Precision Time Protocol (PTP) v1 and v2
Bracket Full-height bracket installed; Low-profile bracket included in package
Dimensions 167 mm x 68 mm (6.57 in x 2.67 in)
Hardware Certifications FCC B, UL, CE, VCCI, BSMI, RCM, KCC
RoHS Compliant with EU RoHS Directive 2011/65/EU and amendments (e.g. 2015/863/EU)
Operating Temperature 0 C to 55 C (32 F to 131 F)
Storage Temperature -40 C to 70 C (-40 F to 158 F)
Storage Humidity Maximum: 90% non-condensing relative humidity at 35 C

[/properties]

[specifications]

Supported Physical Layer Interfaces 25GBASE-CR (Twinax), 25GBASE-SR, 25GBASE-LR, 10GBASE-SR, 10GBASE-LR, SFP+ Twinax
SFP28 Max Power Per Port 1.5 W
Power Consumption (DACs) 25GbE Max: Typical 8.9 W, Max 9.8 W; Idle: Typical 8.0 W, Max 8.8 W
Power Consumption (Optics) 25GbE Max: Typical 12.1 W, Max 13.7 W; Idle: Typical 11.6 W, Max 12.6 W
LED Indicators ACTIVITY (blinking); LINK SPEED (green = 25GbE; amber = less than 25GbE; off = no link)
Airflow (Extended Temp 1.5W Optics) 100 LFM at 45 C; 100 LFM at 55 C; 150 LFM at 60 C
Airflow (Commercial Temp DAC) 100 LFM at 45 C; 100 LFM at 55 C; 150 LFM at 60 C
Airflow (Commercial Temp 1.5W Optics) 150 LFM at 45 C; 350 LFM at 55 C
Tx/Rx Queues 2048 Tx queues and 2048 Rx queues with Dynamic Allocation
Interrupt Vectors 2048 vectors; 20M interrupts/sec
SR-IOV Virtual Functions Up to 256 SR-IOV Virtual Functions
VLAN Support Support for up to 4096 VLAN tags; Tag insertion, stripping and filtering
Tunneling / Encapsulation VXLAN, GENEVE, NVGRE, MPLS, VXLAN-GPE with NSH
Security Hardware-based Root of Trust; NIST 800-193 Platform Firmware Resiliency (Protect, Detect, Recover)
Pre-Boot Signed UEFI option ROM compatible with HTTPS boot
Power Management PCI power management states D3hot and D3cold

[/specifications]

Accelerate Cloud, Storage, and 5G Workloads with Intelligent 25GbE

The Intel Ethernet Network Adapter E810-XXVDA2 is a dual-port 10/25GbE PCIe 4.0 adapter engineered for high-performance data centers. Built on the Intel Ethernet 800 Series architecture, it delivers predictable, low-latency performance through Application Device Queues (ADQ) and Dynamic Device Personalization (DDP). Designed for cloud, enterprise, storage, and communications deployments, it enhances packet processing efficiency while significantly reducing CPU overhead.

Key Benefits & Features
  • Dual 25GbE SFP28 Connectivity: Two high-speed SFP28 ports support 25/10/1GbE per port, enabling scalable bandwidth for virtualization, storage, and high-density server environments.
  • Application Device Queues (ADQ): Dedicated traffic queues reduce jitter and latency, improving workload predictability and SLA compliance in modern data centers.
  • Dynamic Device Personalization (DDP): Protocol-specific acceleration enhances packet processing efficiency and lowers CPU utilization for NFV and cloud workloads.
  • RDMA over Converged Ethernet: Supports both iWARP and RoCEv2 for high-throughput, low-latency storage and NVMe over Fabrics (NVMe-oF) environments.
  • Precision Time Protocol Support: IEEE 1588 PTP v1 and v2 enables nanosecond-level synchronization for 5G RAN, financial services, and industrial applications.
Ideal Use Cases
  • Cloud data center compute nodes and virtualization
  • High-performance storage and NVMe over Fabrics
  • NFV and DPDK-accelerated packet processing
  • 5G RAN deployments and time-sensitive networking
  • Enterprise server environments requiring high predictability
Technical Specifications
  • Ports: 2 x SFP28
  • Data Rate: 25/10/1GbE per port
  • Host Interface: PCIe 4.0 x8
  • Controller: Intel Ethernet Controller E810-XXVAM2
  • RDMA Support: iWARP and RoCEv2 (256K Queue Pairs)
  • Virtualization: SR-IOV up to 256 Virtual Functions
  • Time Sync: IEEE 1588 PTP v1 and v2
  • Power Consumption: Up to 13.7W (Max) with optics
  • Form Factor: Full-height and Low-profile brackets included
  • Dimensions: 167 mm x 68 mm
Upgrade to Predictable 25GbE Performance

Deploy the Intel E810-XXVDA2 to reduce latency, increase throughput, and modernize your data center fabric. Order today.
