PLEASE NOTE THAT POWER SUPPLIES ARE NOT INCLUDED AS STANDARD ON IE-4010 SWITCHES AND MUST BE PURCHASED SEPARATELY HERE.

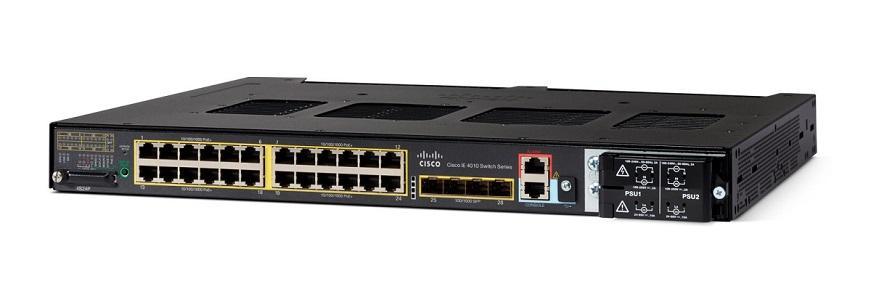

Cisco IE-4010-4S24P – 28-Port Industrial Ethernet Switch with 24 PoE+ Ports & 4 SFP Uplinks
The Cisco IE-4010-4S24P is a high-performance, ruggedized Industrial Ethernet switch designed for mission-critical networks in harsh environments. Featuring 24 Gigabit Ethernet PoE+ ports and 4 Gigabit SFP uplinks, it delivers non-blocking 28 Gbps switching capacity with advanced Layer 2 and limited Layer 3 capabilities.
Built to withstand extreme temperatures from –40 °C to +75 °C, this fanless switch supports PoE/PoE+ with a total budget of up to 385 W, making it ideal for powering IP cameras, wireless access points, and industrial sensors. It offers advanced resiliency with protocols like REP, PRP, MRP, and FlexLink, plus enhanced security features such as MACsec, ACLs, TrustSec, DHCP Snooping, and Secure Boot.
With dual redundant AC/DC power supply support, robust alarm I/O interfaces, and Cisco IOS-based management (CLI, SNMP, web UI, and Industrial Network Director), the IE-4010-4S24P ensures maximum uptime and secure, reliable connectivity for manufacturing, transportation, utilities, and other industrial applications.
| Category |
Specification |
| Form Factor & Ports |
Industrial-grade, rack-mountable switch |
| Total Ports |
28 Gigabit Ethernet ports:
24 × RJ45 PoE+ ports,
4 × Gigabit SFP uplinks |
| Switching & Performance |
High-performance,
non-blocking architecture with 28 Gbps forwarding and 56 Gbps full-duplex switching bandwidth |
| PoE Support & Budget |
24 PoE/PoE+ ports with total PoE power budget up to 385 W (with dual PSU) |
| Redundancy & Resiliency |
Supports industrial ring protocols:
REP, PRP, MRP, HSR, and FlexLink |
| Network Layer Support |
Layer 2 and limited Layer 3 switching; hardware assist for NAT, IGMP snooping, and IEEE 1588 PTP |
| Management & Monitoring |
CLI, SNMP, web UI, Express Setup, SD-based image swap, Cisco Industrial Network Director |
| Security Features |
Comprehensive Cisco IOS security: MACsec, DHCP Snooping, ACLs, TrustSec, Secure Boot, Flexible NetFlow |
| Hardware & Memory |
1 GB DRAM,
128 MB onboard flash with included 1 GB removable SD card |
| Environmental Specs |
Operating Temp: –40 °C to +75 °C (fanless, convection-cooled); Storage Temp: –40 °C to +85 °C |
| Physical Dimensions & Weight |
1.75 × 17.5 × 14.0 in (35.6 cm length), 1 RU height; Weight: ~12.1 lb (5.46 kg) without PSU |
| Power & Alarm Interface |
Dual redundant AC/DC power supply support; Alarm I/O: 4 inputs, 1 relay output |
FAQs for Cisco IE-4010-4S24P
1. What is the primary function of the IE-4010-4S24P?
It serves as a rugged industrial Ethernet switch for factory automation, utilities, and transportation networks.
2. What PoE capabilities does it support?
It supports PoE+ with a high total power budget for industrial applications.
3. How does IE-4010 improve network resilience?
It supports redundancy protocols for fault-tolerant operation in mission-critical environments.
4. Is this switch suitable for outdoor deployments?
Yes, it is hardened for extreme temperatures and industrial conditions.
5. What management options are available?
It supports CLI, SNMP, and Cisco Industrial Network Director for easy configuration.
