PLEASE NOTE THAT POWER SUPPLIES ARE NOT INCLUDED AS STANDARD ON IE-4010 SWITCHES AND MUST BE PURCHASED SEPARATELY HERE.

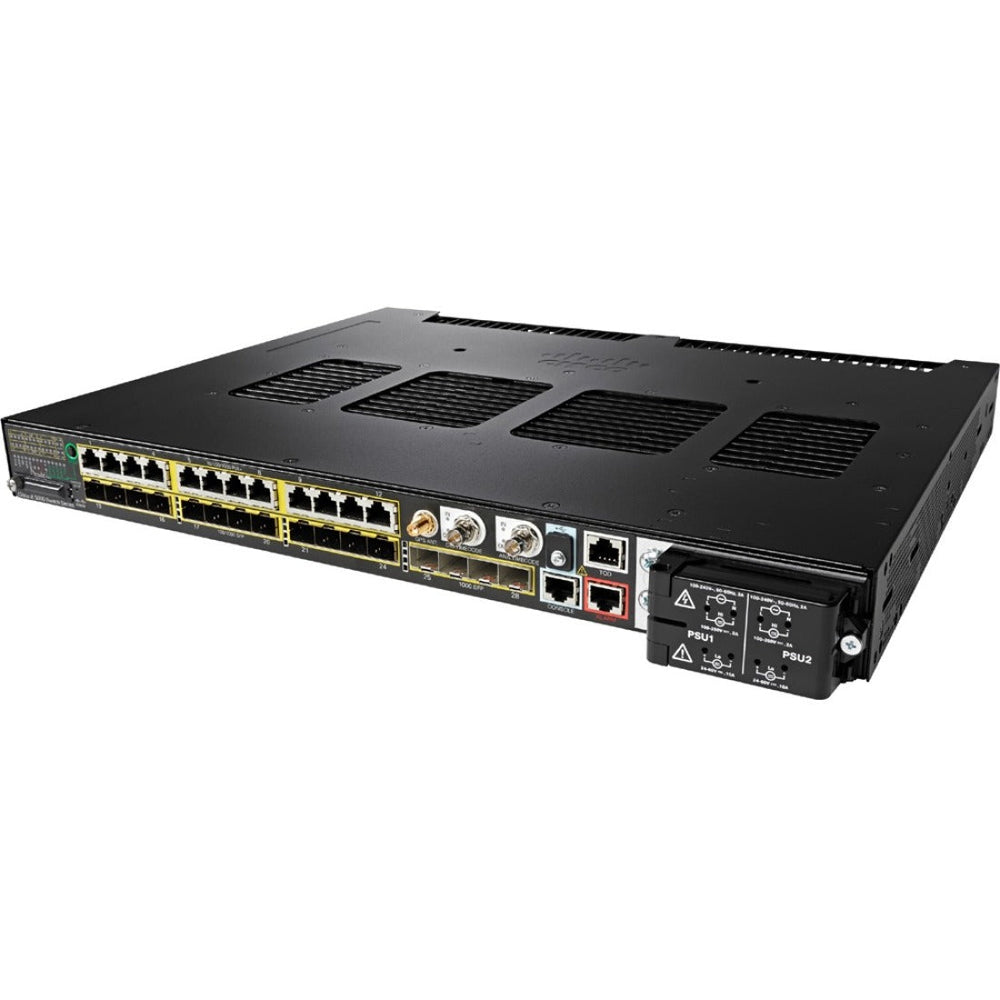

Cisco IE-4010-16S12P Industrial Ethernet Switch – Rugged, High-Performance Networking for Harsh Environments
The Cisco IE-4010-16S12P is a powerful, industrial-grade Ethernet switch engineered for mission-critical networks in harsh environments. With 28 Gigabit Ethernet ports, including 12 PoE+ RJ45 ports, 12 SFP fiber ports, and 4 Gigabit SFP uplinks, it delivers high-speed, reliable connectivity for industrial automation, utilities, transportation, and outdoor deployments.
Built with a non-blocking switching architecture, the Cisco IE-4010 offers seamless data throughput, advanced Layer 2 and basic Layer 3 routing, and a PoE+ budget of up to 385W to power IP cameras, wireless access points, and other PoE-enabled devices. Its wide operating temperature range (-40°C to 75°C) and compliance with IEC 61850-3 and IEEE 1613 standards ensure outstanding performance in extreme conditions.
Featuring redundant power inputs, fault-tolerant ring protocols, and robust security features like 802.1X authentication, ACLs, and DHCP snooping, the IE-4010 guarantees uptime and network protection. Managed via CLI, SNMP, web interface, or Cisco Industrial Network Director, it’s easy to configure and deploy, making it an ideal choice for industries that demand reliability, scalability, and durability.
| Specification |
Details |
| Form Factor |
Industrial-grade, rack-mountable managed switch |
| Total Ports |
28 Gigabit Ethernet ports |
| Port Breakdown |
12 × 10/100/1000 Mbps RJ45 PoE+ ports,
12 × 100/1000 Mbps SFP fiber ports,
4 × 1-Gigabit SFP uplink ports |
| Switching Capacity |
High-performance non-blocking architecture |
| Forwarding Rate |
Up to 42 Mpps (Million packets per second) |
| PoE+ Support |
IEEE 802.3at compliant, up to 30W per port |
| PoE Budget |
Up to 385W total |
| Redundancy & High Availability |
Supports fault-tolerant ring protocols (e.g., Cisco REP, MRP, and PRP/HSR) |
| Layer Support |
Layer 2 and basic Layer 3 routing capabilities |
| Management Interfaces |
CLI, SNMP, web-based management, Cisco Industrial Network Director |
| Security Features |
IEEE 802.1X, ACLs, port security, DHCP snooping |
| Operating Temperature |
-40°C to 75°C (harsh industrial environments) |
| Storage Temperature |
-40°C to 85°C |
| Humidity Tolerance |
5% to 95% (non-condensing) |
| Power Supply |
Dual redundant DC power inputs (24VDC, 48VDC, or 110-250V AC/DC) |
| EMC & Environmental Compliance |
IEC 61850-3, IEEE 1613 for utility and substation environments |
| Dimensions (H × W × D) |
Approx. 4.45 × 44.5 × 25.4 cm (1RU height) |
| Weight |
Varies based on configuration, approx. 9–12 lbs |
| Mounting Options |
Rack-mount, DIN rail, or wall-mount (with kit) |
| Operating System |
Cisco IOS Software with Industrial Ethernet enhancements |
FAQs for Cisco IE-4010-16S12P:
1. What is the primary function of the IE-4010-16S12P?
It serves as a rugged industrial Ethernet switch for factory automation, utilities, and transportation networks.
2. What PoE capabilities does it support?
It supports PoE+ with a total power budget of up to 385W.
3. How does IE-4010 improve network resilience?
It supports redundancy protocols for fault-tolerant operation in mission-critical environments.
4. Is this switch suitable for outdoor deployments?
Yes, it is hardened for extreme temperatures and industrial conditions.
5. What management options are available?
It supports CLI, SNMP, and Cisco Industrial Network Director for easy configuration.
