- IE4010-16S12P Switch Overview
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas

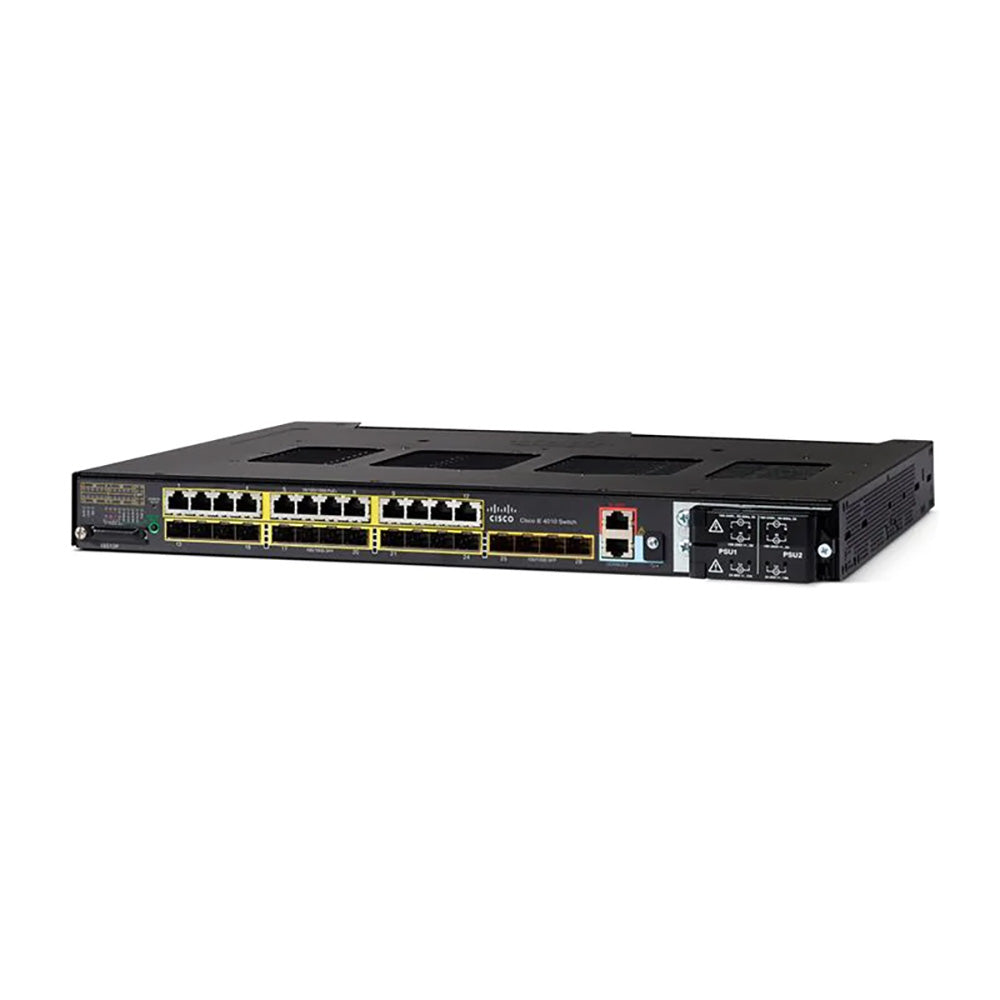

The IE-4010-16S12P is part of the IE4010 Series switch, featuring 16x1G SFP ports and 12x10/100/1000 ports, along with LAN Base functionality. The Cisco Industrial Ethernet (IE) 4010 Series Switches provide high-performance ruggedized Layer 2/3 switching with high-density Power-over-Ethernet (PoE+) capabilities, making them an excellent choice for use as access switches in demanding industrial environments. Equipped with comprehensive Cisco IOS Software security features and high-availability ring protocols, the IE4010-16S12P ensures secure, reliable performance. Designed to withstand harsh environments, the switch is well-suited for outdoor enclosures and meets the requirements of IT network design, compliance, and performance standards. Shop Cisco Switch models like the IE4010-16S12P for advanced Industrial Ethernet Switches with PoE+ support and 4 x SFP connectivity, ideal for demanding applications in industrial settings.
Recommended supported products
Model |
Description |
| L-IE4000-RTU | Electronic IP SERVICES License for IE4000 Switches |
| C1F1PIE4K5K1K9 | Cisco ONE Foundation Perpetual - IE 4000/5000 |
| C1A1PIE40001K9 | Cisco ONE Advanced Perpetual - IE 4000 |
| PWR-RGD-AC-DC-H | Hazloc grade power supply high voltage (88-300VDC/85-264VAC), 150W |
| PWR-RGD-AC-DC-250 | Higher PoE, 250W PSU for IE4010/5000, 100-240VAC/100-250VDC |
| PWR-RGD-LOW-DC-H | IE4010/5000 Hazloc Pwr Supply Low DC 24-60V/10A |
| GLC-SX-MM-RGD | Cisco GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP |
| GLC-BX40-U-I |
1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector |
| GLC-TE | 1000BASE-T SFP transceiver module for Category 5 copper wire |
| GLC-ZX-SM | 1000BASE-ZX SFP |
| GLC-BX-U | 1000BASE-BX SFP, 1310NM |
| SFP-GE-L | 1000BASE-LX/LH SFP (DOM) |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD1000 BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
| GLC-SX-MMD | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| GLC-FE-100EX | 100BASE-EX SFP (40km) |
| GLC-FE-100BX-U | 100BASE-BX10-U SFP |
Compare to Similar Items
Model |
IE-4010-16S12P |
IE-4010-4S24P |
| Total Ports | 28 | 28 |
| Uplinks | 4 SFP (100MB/1G) | 4 SFP (100MB/1G |
| SFP fiber ports | 12 (100/1000M) | N/A |
|
Copper 10/100/1000 PoE/PoE+ Ports |
12 (10/100/1000M) | 24 (10/100/1000M) |
| Default software |
LAN Base feature set (Can be upgraded to IP Services license.) |
LAN Base feature set (Can be upgraded to IP Services license.) |
Specification
IE-4010-16S12P Specifications |
|
| Total Ports | 28 |
| Uplinks | 4 SFP (100MB/1G) |
| SFP fiber ports | 12 (100/1000M) |
|
Copper 10/100/1000 PoE/PoE+ Ports |
12 (10/100/1000M) |
| Default software |
LAN Base feature set (Can be upgraded to IP Services license.) |
| Hardware | ● 1 GBDRAM ● 128 MB onboard flash memory ● 1-GB removable SD flash memory card ● Mini-USB and traditional RJ-45 console connector |
| Alarm |
Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
| Dimensions, (H x W x D) |
● 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H
1 RU (rack unit) height with PWR-RGD-AC-DC-250 |
| Weight | ● Without power supply: 12.7 lb (5.78 kg) ● PWR-RGD-AC-DC-H:2.55 lb (1.16 kg) ● PWR-RGD-LOW-DC-H:2.5 lb (1.13 kg) ● PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
| Power consumption | ● Maximum of 90W not including PoE consumption |
| Accessories | ● SD-IE-1GB= - Spare SD card ● L-IE4000-RTU= -Electronic RTU IP services software license for 4010 switches ● 21–in. and 23–in. ETSI rack mount brackets |
| Forwarding bandwidth | 28 Gbps (line rate/non-blocking) |
| Switching bandwidth | 56 Gbps(Switching bandwidth is full-duplex capacity) |
| Forwarding rate | 41.67 mpps with 64 byte packets (line rate for all ports and packet sizes) |
| Number of queues | 4 egress |
| Unicast MAC addresses | 16,000 |
| IGMP multicast groups | 1000 |
| Number of VLANs | 1000 |
| IPv4 MAC security ACEs | 1000 with default TCAM template |
| NAT translation |
Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
