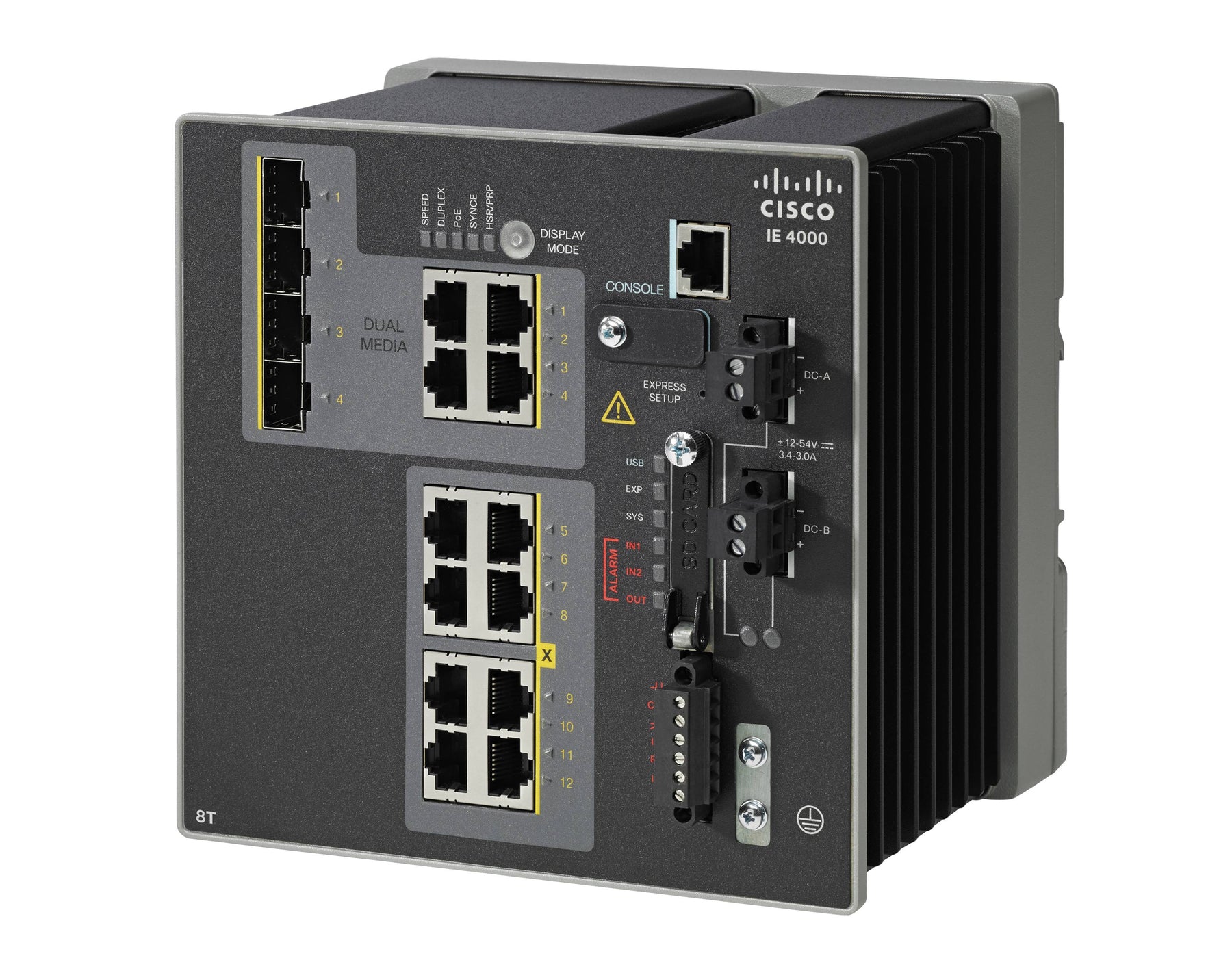

The Cisco Industrial Ethernet IE-4000-8T4G-E is a rugged, Layer 2 managed industrial Ethernet switch engineered for reliable operation in harsh, mission-critical environments such as factories, substations, transportation systems, and utilities. Designed to deliver secure and resilient network connectivity, this switch combines hardened hardware with advanced industrial networking features.
The switch provides 8 Fast Ethernet RJ-45 downlink ports for connecting industrial devices such as PLCs, HMIs, sensors, and controllers, along with 4 Gigabit SFP uplink ports for high-speed fiber connectivity to aggregation or core networks. With a switching capacity of 7.2 Gbps and a forwarding rate of 5.36 Mpps, the IE-4000-8T4G-E ensures dependable performance for real-time industrial traffic.
Built for extreme conditions, the Cisco IE-4000-8T4G-E operates across an extended temperature range of -40°C to +75°C and features a fanless, convection-cooled design for increased reliability and reduced maintenance. The switch is certified for demanding industrial standards, including IEC 61850-3, IEEE 1613, EN50121-4, NEMA TS-2, and Class I Division 2, making it suitable for power substations, rail systems, and hazardous locations.
Running Cisco IOS, the switch supports essential Layer 2 features such as VLANs, STP/RSTP/MSTP, QoS, broadcast storm control, and industrial network resiliency technologies including REP, FlexLinks, and EtherChannel. Integrated security features - such as IEEE 802.1X authentication, DHCP snooping, and dynamic ARP inspection - help protect industrial networks from unauthorized access and threats.
With dual redundant 18–60 VDC power inputs, an integrated alarm relay, and support for DIN-rail or wall mounting, the Cisco IE-4000-8T4G-E is an ideal solution for organizations requiring secure, high-availability industrial Ethernet switching with long service life and low total cost of ownership.
Product Specifications – Cisco Industrial Ethernet IE-4000-8T4G-E
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Name |
Cisco Industrial Ethernet IE-4000-8T4G-E |
| Model Number |
IE-4000-8T4G-E |
| Product Series |
Cisco Industrial Ethernet IE-4000 Series |
| Product Type |
Layer 2 Managed Industrial Ethernet Switch |
| Intended Environment |
Harsh / Mission-Critical Industrial Networks |
| Ethernet Downlink Ports |
8 × 10/100 Mbps Fast Ethernet (RJ45) |
| Uplink Ports |
4 × 10/100/1000 Mbps SFP |
| Console Port |
1 × RJ45 Console |
| USB Port |
1 × USB Type-A (Configuration & Firmware Updates) |
| Switching Capacity |
7.2 Gbps |
| Forwarding Rate |
5.36 Million Packets per Second (Mpps) |
| MAC Address Table |
8,000 Entries |
| VLAN Support |
Up to 255 VLANs |
| Spanning Tree Protocols |
STP, RSTP, MSTP |
| QoS Capabilities |
4 Egress Queues per Port, Traffic Shaping & Policing |
| Broadcast Storm Control |
Supported |
| Network Redundancy |
REP, FlexLinks, EtherChannel |
| Operating System |
Cisco IOS |
| Management Interfaces |
Web UI, CLI, SNMP v1/v2c/v3, RMON |
| Security Features |
IEEE 802.1X, Port-Based Access Control, DHCP Snooping, Dynamic ARP Inspection |
| Industrial Management |
Cisco Industrial Network Director (IND) Compatible |
| Mounting Options |
DIN-Rail or Wall Mount |
| Cooling Method |
Convection-Cooled, Fanless Design |
| Enclosure Type |
Hardened Industrial Metal Enclosure |
| Operating Temperature Range |
−40°C to +75°C (−40°F to +167°F) |
| Operating Humidity |
5% to 95% (Non-Condensing) |
| Certifications |
EN50121-4, IEC 61850-3, IEEE 1613, NEMA TS-2, Class I Division 2 |
| Mean Time Between Failures (MTBF) |
> 1,000,000 Hours (Typical) |
| Power Input |
Dual Redundant DC Inputs |
| Input Voltage Range |
18–60 VDC |
| Typical Power Consumption |
~13 W (Configuration Dependent) |
| Alarm Relay |
1A @ 24VDC for System Alerts |
| Industrial Protocol Support |
Ethernet/IP Ready Infrastructure |
| SFP Compatibility |
Cisco Industrial SFP Modules |
| Interoperability |
Cisco IE Switch Family |
| High Availability |
Redundant Power, Ring-Based Network Protection |
| Deployment Use Cases |
Factory Automation, Utilities, Transportation, Oil & Gas |
| Package Contents |
Switch Unit (Power Supplies & SFPs Sold Separately) |
FAQs for IE-4000-8T4G-E:
Is this switch suitable for harsh outdoor or industrial settings?
Yes, it is certified for rugged environments with an extended temperature range and meets multiple industry certifications for transportation, utility, and automation use cases.
Do the uplink ports support fiber?
Yes, the 4 uplink ports are SFP-based and support both copper and fiber transceivers at speeds up to 1 Gbps.
Can the switch be managed remotely?
Yes, it supports multiple remote management protocols including SNMP, WebUI, and CLI over SSH/Telnet.
Does this model offer redundancy features?
Yes, it includes industrial redundancy features like REP and FlexLinks to maintain network availability.
Is it completely silent during operation?
Yes, it is fanless and convection-cooled, making it ideal for noise-sensitive industrial environments.
