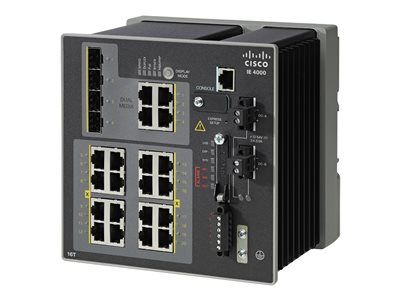

Enhance your industrial network with the Cisco IE-4000-16T4G-E, a high-performance, ruggedized Layer 2 managed switch designed for harsh environments. Equipped with 16 Fast Ethernet ports and 4 Gigabit uplinks, this switch ensures reliable connectivity for automation systems, control devices, and industrial machinery. Its fanless, convection-cooled design allows operation in extreme temperatures from -40°C to 75°C, making it ideal for factory floors, outdoor installations, and industrial automation networks.
Key features include robust VLAN support, advanced QoS, and IEEE 802.1X security, ensuring secure and efficient traffic management. With a high MTBF of over 1,000,000 hours and compliance with industrial standards like NEMA TS-2, IEC61850-3, and Class I Div 2, the Cisco IE-4000-16T4G-E delivers unmatched reliability and resilience. Integrated management via WebUI, SNMP, or Cisco Industrial Network Director (IND) allows simplified monitoring and configuration.
Whether you are deploying industrial Ethernet networks, automation systems, or control applications, the Cisco IE-4000-16T4G-E offers flexible, secure, and high-performance connectivity that scales with your operations.
Why Choose Cisco IE-4000-16T4G-E?
-
Ruggedized Industrial Design: Operates in extreme temperatures and harsh environments.
-
Reliable Connectivity: 16 Fast Ethernet ports + 4 Gigabit SFP uplinks with high MTBF.
-
Advanced Networking Features: VLANs, QoS, REP, FlexLinks, and EtherChannel support.
-
Secure & Compliant: IEEE 802.1X, DHCP snooping, dynamic ARP inspection, and industrial certifications.
-
Easy Management: WebUI, SNMP, RMON, and Cisco IND integration for simplified network operations.
Upgrade your industrial network today with the Cisco IE-4000-16T4G-E Industrial Ethernet Switch, the perfect combination of performance, durability, and security.
Product Specifications – Cisco IE-4000-16T4G-E Industrial Ethernet Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Model Number |
IE-4000-16T4G-E |
| Description |
Ruggedized Layer 2 managed industrial Ethernet switch with 16 Fast Ethernet downlink ports and 4 Gigabit uplink ports. Designed for extended temperature operations, precision control, and industrial-grade network reliability. |
| Ports & Interfaces |
16 x 10/100 Mbps RJ45 Fast Ethernet ports
4 x 10/100/1000 Mbps SFP Gigabit Ethernet uplink ports
1 x Console port (RJ45) for local management
1 x USB port for configuration and software updates |
| Performance & Features |
Switching Capacity: 7.2 Gbps
Forwarding Rate: 5.36 Mpps
MAC Address Table: 8,000 entries
VLANs Supported: Up to 255
Spanning Tree: STP, RSTP, MSTP
QoS: 4 egress queues per port, classification, policing, shaping |
| Ruggedization & Environmental |
Operating Temperature: -40°C to +75°C (-40°F to +167°F)
Humidity: 5% to 95% non-condensing
Certifications: NEMA TS-2, EN50121-4, Class I Div 2, IEC61850-3, IEEE1613
Cooling: Fanless, convection cooled
MTBF: Over 1,000,000 hours |
| Power Requirements |
Input Voltage: Dual redundant DC inputs (18–60 VDC)
Power Consumption: Approx. 15W (typical)
Alarm Relay Output: 1A at 24VDC |
| Software & Management |
Operating System: Cisco IOS
Management Options: WebUI, CLI, SNMP, RMON, DHCP
Security: IEEE 802.1X, port security, DHCP snooping, dynamic ARP inspection
Network Redundancy: REP, FlexLinks, EtherChannel |
| Compatibility |
Integrates with Cisco Industrial Network Director (IND)
Supports Cisco IE switches and DIN rail mounting kits
Compatible with industrial automation protocols |
FAQs for IE-4000-16T4G-E:
Is this switch suitable for extreme industrial environments?
Yes, it's designed for harsh conditions with an extended temperature range of -40°C to +75°C and meets industry-specific certifications like EN50121 and IEEE1613.
Are the Gigabit uplink ports SFP-based or copper?
The 4 uplink ports are SFP slots, supporting 10/100/1000 Mbps fiber or copper SFP modules.
Can this switch be managed remotely?
Yes, it supports SNMP, WebUI, and CLI-based management for remote configuration and monitoring.
Does the IE-4000 support redundancy?
Yes, it supports industrial redundancy protocols like REP, FlexLinks, and EtherChannel for high network availability.
Is it fanless and silent for deployment in sensitive areas?
Yes, the IE-4000 is convection-cooled with no moving parts, making it silent and ideal for noise-sensitive environments.
