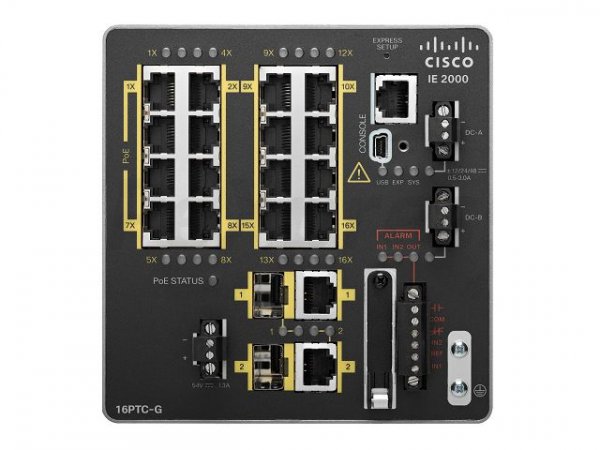

The Cisco IE-2000-16PTC-G-E Industrial Ethernet Switch is a rugged, high-reliability networking solution designed for industrial automation, transportation systems, and outdoor deployments. Part of the Cisco Industrial Ethernet 2000 Series, this switch is engineered to deliver consistent performance in harsh environments, including extreme temperatures, vibration, and electrical noise.
Equipped with 16 × Fast Ethernet PoE ports, the IE-2000-16PTC-G-E enables seamless connectivity and power delivery to critical industrial devices such as IP cameras, sensors, PLCs, and controllers. Its 2 × Gigabit SFP uplink ports provide high-speed connectivity to aggregation or core networks, ensuring efficient data transmission across the infrastructure.
Built with a ruggedized metal enclosure and fanless design, this switch operates reliably in temperatures ranging from -40°C to 75°C, making it ideal for factory floors, railway systems, oil and gas environments, and outdoor surveillance networks. The DIN rail and wall-mount options offer flexible installation in space-constrained industrial settings.
Running on Cisco IOS with LAN Base features, the switch supports essential Layer 2 capabilities, advanced security features (ACLs, 802.1X, DHCP Snooping), and industrial protocols for automation environments. It also includes redundant power inputs and resilient network protocols such as RSTP and REP, ensuring continuous operation in mission-critical applications.
Designed for scalability and reliability, the Cisco IE-2000-16PTC-G-E provides a secure and efficient networking foundation for modern industrial infrastructures, enabling organizations to build robust, high-availability networks in demanding environments.
Product Specifications - Cisco IE-2000-16PTC-G-E Industrial Ethernet 2000 Series 16-Port PoE Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco IE-2000-16PTC-G-E Industrial Ethernet Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
IE-2000-16PTC-G-E |
| Product Series |
Cisco Industrial Ethernet 2000 Series |
| Product Type |
Industrial Managed Ethernet Switch |
| Port Configuration |
16 × 10/100 Fast Ethernet PoE Ports |
| Uplink Ports |
2 × Gigabit Ethernet SFP |
| PoE Support |
Yes (Power over Ethernet) |
| PoE Standard |
IEEE 802.3af (PoE) |
| Total PoE Budget |
Up to ~120W (model dependent) |
| Switching Capacity |
Up to ~6.8 Gbps |
| Forwarding Rate |
Up to ~5 Mpps |
| Layer Support |
Layer 2 |
| License Type |
LAN Base |
| Operating System |
Cisco IOS |
| Management Interfaces |
CLI, SNMP, Web UI |
| Security Features |
Port security, ACLs, DHCP Snooping, 802.1X authentication |
| Redundancy Features |
Rapid Spanning Tree (RSTP), Flex Links |
| Ring Protocol |
Cisco Resilient Ethernet Protocol (REP) |
| Industrial Protocol Support |
PROFINET, EtherNet/IP (limited support depending on config) |
| QoS Support |
Traffic prioritization for industrial applications |
| Mounting Type |
DIN Rail and Wall Mount |
| Form Factor |
Compact industrial form factor |
| Enclosure Type |
Ruggedized metal housing |
| Operating Temperature |
-40°C to 75°C |
| Storage Temperature |
-40°C to 85°C |
| Humidity |
5% to 95% non-condensing |
| Power Input |
DC power input (dual input support) |
| Redundant Power |
Yes (dual power inputs for redundancy) |
| Cooling |
Fanless design |
| Shock & Vibration |
Industrial-grade compliance |
| Certifications |
Industrial and safety certifications (IEC, UL, etc.) |
| Deployment Type |
Industrial automation, transportation, outdoor networking |
| Application |
IP cameras, sensors, PLCs, controllers |
| Condition |
New / Cisco Certified |
| Use Cases |
Manufacturing, oil & gas, railways, smart cities, surveillance |
FAQs
Q1. Does this switch support Power over Ethernet (PoE)?
Yes, it provides PoE on all 16 Fast Ethernet ports for powering connected devices.
Q2. What type of environments is this switch designed for?
It is built for harsh industrial environments such as factories, transportation systems, and outdoor deployments.
Q3. What are the uplink options available?
It includes 2 Gigabit SFP ports for fiber uplink connectivity.
Q4. Is this switch suitable for enterprise office use?
It is primarily designed for industrial applications, though it can be used in specialized enterprise setups if required.
Q5. What mounting options are supported?
It supports DIN rail and wall mounting, making it flexible for industrial installations.
