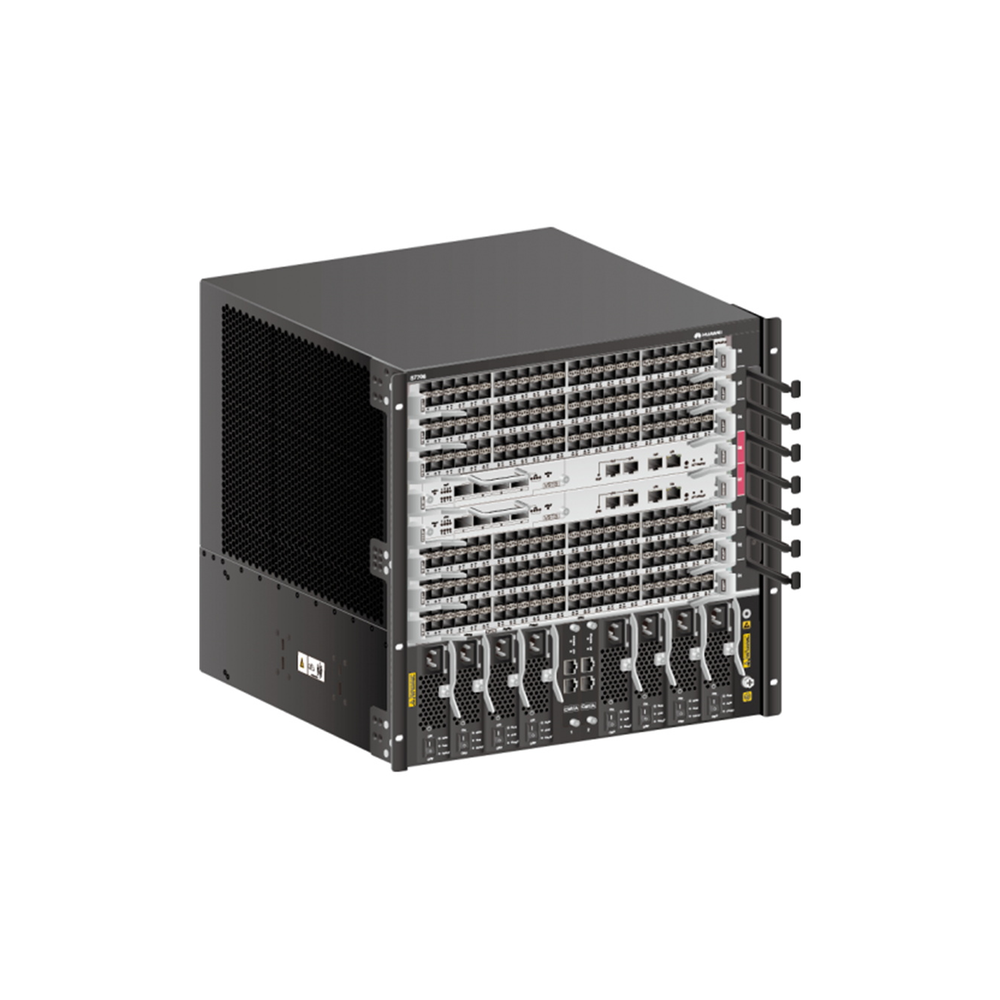

Huawei CloudEngine S7706-ES0B00770600 10U Chassis 4.32Tbps Core Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Huawei CloudEngine S7706 Core Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Huawei CloudEngine S7706 is a high-density modular chassis switch designed for enterprise-scale networks.
The price includes only the 1 × integrated chassis, and all additional components, such as main control boards, service modules, power supplies, and fan modules, must be purchased separately.
The S7706 chassis offers a flexible and scalable solution, with support for high-performance switching and forwarding, making it ideal for campus aggregation and core network applications when fully equipped.
Overview
Highlights
-
High-density modular design: 10U chassis with multiple slots for main control and service modules
-
Flexible power configuration: Supports various power supply modules to meet different requirements
-
High-performance switching: Offers robust switching capacity and forwarding rate for enterprise networks
-
Comprehensive network feature support: VXLAN, BGP-EVPN, MACsec, QoS, IPv6, and more
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| Main Control Units | Control Units | Required for operation; specify model based on needs |
| Service Modules | Service Cards | Required for operation; specify model based on needs |
| Power Supply Modules | Power Supplies | Required for operation; specify model based on needs |
| Fan Module | Cooling | Required for operation; specify model based on needs |
Comparison with Similar Models
| Feature / Model | S7706 | S7703 | S7712 |
|---|---|---|---|
| Chassis Size (U) | 10U | 4U | 12U |
| Main Control Units | 2 | 2 | 2 |
| Service Slots | 6 | 3 | 10 |
| Fan Slots | 2 | 1 | 4 |
| Power Supply Slots | 4 | 3 | 8 |
| Switching Capacity | 3.84 Tbps | 1.92 Tbps | 3.84 Tbps |
| Forwarding Rate | 2880 Mpps | 1440 Mpps | 2880 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine S7706 |
| Chassis Size | 10U (441.7 mm × 442 mm × 517.4 mm) |
| Main Control Units | 2 units required (specify model based on needs) |
| Service Slots | 6 (supports various service modules) |
| Fan Slots | 2 (hot-swappable) |
| Power Supply Slots | 4 (supports various power supply modules) |
| Switching Capacity | 3.84 Tbps |
| Forwarding Rate | 2880 Mpps |
| System Memory | 16 GB DRAM |
| Storage | 2 GB NAND Flash |
| System Buffer | 8 MB |
| Supported Protocols & Features | VXLAN, BGP-EVPN, MACsec, QoS, IPv6, NAC and more |
| Operating Temperature | 0°C to 45°C (up to 1800 meters above sea level) |
