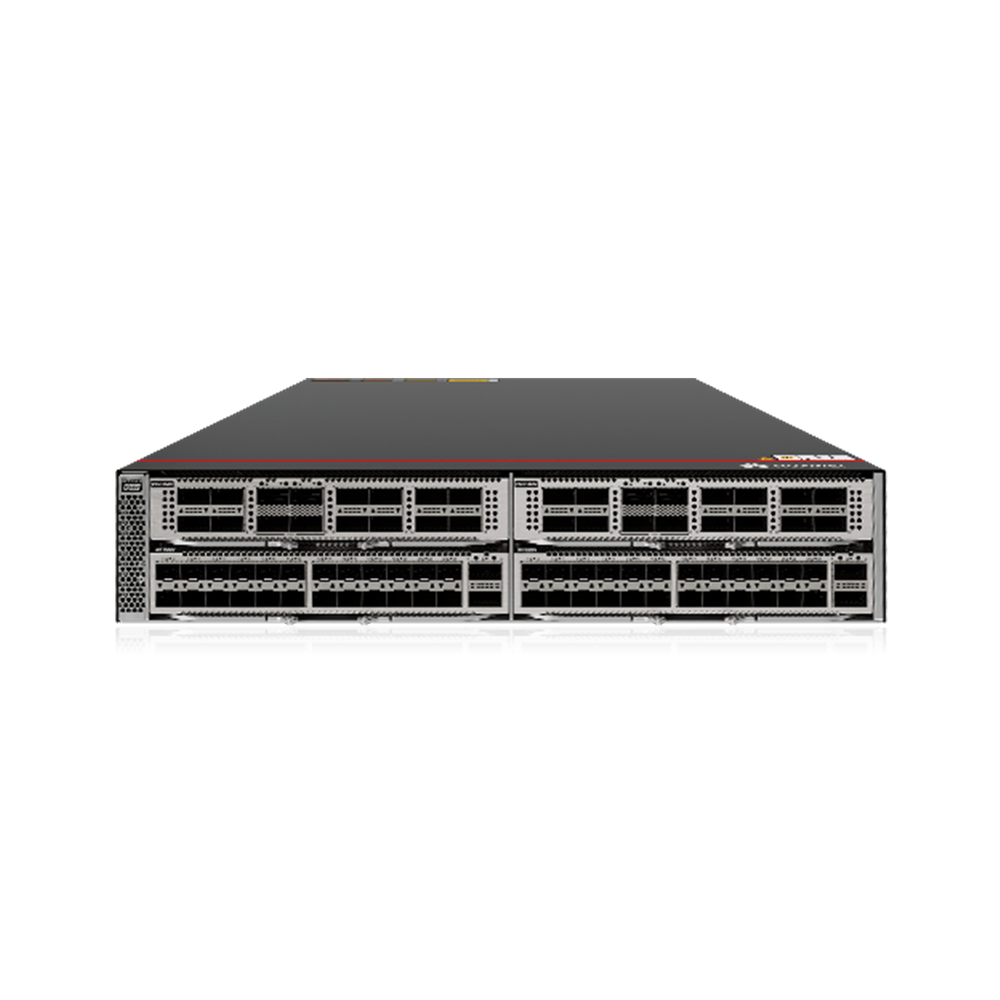

Huawei CloudEngine S6780-H4Z 96x10G+8x100G Modular 2U Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei CloudEngine S6780-H4Z Core Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Huawei CloudEngine S6780‑H4Z is an advanced modular fixed-form-factor switch specifically designed for high-capacity aggregation and core-layer deployments within enterprise campuses, large institutions, and cloud data centers.
Its compact 2U chassis provides unparalleled flexibility through four half-width modular slots, accommodating interfaces from GE all the way up to 400 GE, enabling diverse and customizable network configurations.
This model integrates sophisticated networking capabilities, including VXLAN, SRv6, robust MACsec encryption, and comprehensive cloud-based O&M solutions, significantly enhancing both security and manageability.
Note: Power supply are sold separately and must be purchased according to specific power needs.
Overview
Highlights
-
Exceptional Port Flexibility and High-Density Connectivity
Offers four modular half-width interface slots, delivering highly adaptable connectivity configurations such as GE, 10 GE, 25 GE, 40 GE, 100 GE, and even 400 GE, ideal for rapidly evolving network requirements. -
Superior Switching Capacity & Performance
Achieves industry-leading switching capacity of up to 16 Tbps and a high-performance forwarding rate of 2,400 Mpps, effectively meeting high-demand workloads of large-scale enterprise and cloud environments. -
Advanced Network Security & Virtualization
Equipped with comprehensive security and virtualization features, including VXLAN and BGP‑EVPN network virtualization, MACsec for robust data encryption, and SRv6 for scalable routing solutions. -
Intelligent Cloud-Driven Operations
Fully compatible with Huawei's iMaster cloud management platform, enabling intelligent fault diagnosis (IFIT), streamlined Zero-Touch Provisioning (ZTP), simplified operations, and proactive network maintenance.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| Modular XSIC Modules | Service Modules | Options include XSIC-Y26B000 (24×10/25 GE + 2×40/100 GE), XSIC-D12B000 (12×100 GE), and more. |
| Power Supply Modules | Power Modules | Hot-swappable power options (600W, 1200W AC/DC, 2000W AC, or 1200–2200W DC). Required separately. |
| Fan Modules | Cooling Modules | Three hot-swappable fan modules with intelligent speed control and front-to-rear airflow. |
Comparison with Similar Models
| Feature | Huawei CloudEngine S6780‑H4Z | Huawei S6730‑H48X6C‑V2 | Cisco Nexus 9332D |
|---|---|---|---|
| Chassis Size | 2U modular | 1U fixed | 1RU fixed |
| Port Flexibility | Modular (GE–400GE flexible cards) | Fixed (48×25GE, 6×100GE) | Fixed (32×400GE) |
| Switching Capacity | 16 Tbps | 1.68 Tbps | 12.8 Tbps |
| Forwarding Rate | 2,400 Mpps | ~1,250 Mpps | ~5,770 Mpps |
| Maximum Port Density | Up to 16×400GE or mixed configs | 48×25GE + 6×100GE | 32×400GE ports |
| Security & Virtualization | MACsec, VXLAN, BGP-EVPN, SRv6 | Basic MACsec, Limited VXLAN | MACsec, VXLAN, Cisco ACI |
| Intelligent O&M | Huawei iMaster, IFIT, Cloud-based | Basic Huawei management | Cisco ACI, NX-OS |
| Primary Use Case | Flexible campus/core aggregation | Campus access/aggregation | Data-center spine-leaf |
| Power Supply | Modular, purchased separately | Integrated | Modular, purchased separately |
Specifications
| Parameter | Specification |
|---|---|
| Model Name | Huawei CloudEngine S6780-H4Z |
| Form Factor | 2U modular chassis |
| Dimensions (H×W×D) | 88.1 mm × 442 mm × 600 mm |
| Chassis Weight | Approx. 21–24 kg (excluding modules) |
| Flexible Module Slots | 4 half-width slots (supports GE, 10 GE, 25 GE, 40 GE, 100 GE, 400 GE interface modules) |
| Switching Capacity | Up to 16 Tbps |
| Forwarding Rate | 2,400 Mpps |
| System Memory | 8 GB DRAM |
| Storage (Flash) | 4 GB NAND flash |
| Power Supply Modules | Hot-swappable; various wattages: 600W, 1200W AC/DC, 2000W AC, 1200–2200W DC (separate purchase required) |
| Power Redundancy | 1+1 redundancy supported |
| Typical Power Consumption | Typical: 366 W; Maximum: 940 W |
| Cooling | 3 hot-swappable fans with intelligent speed control; airflow direction front-to-rear |
| Operating Temperature | -5°C to +45°C (standard operation ≤1800 m altitude, derating required up to 5000 m) |
| Operating Humidity | 5%–95% non-condensing |
| Altitude Operation | Up to 1800 m standard, derated operation up to 5000 m |
| Supported Protocols & Features | VXLAN, BGP-EVPN, MACsec, SRv6, IPv4/IPv6, MPLS, QoS, OSPF, BGP, IS-IS, multicast routing, VLAN, port aggregation |
| Management Interface | Huawei iMaster cloud management, Zero-Touch Provisioning (ZTP), SNMP, CLI, NetConf |
| Standards Compliance | IEEE 802.3 Ethernet, IEEE 802.1Q VLAN tagging, IEEE 802.1X, multiple RFCs |
