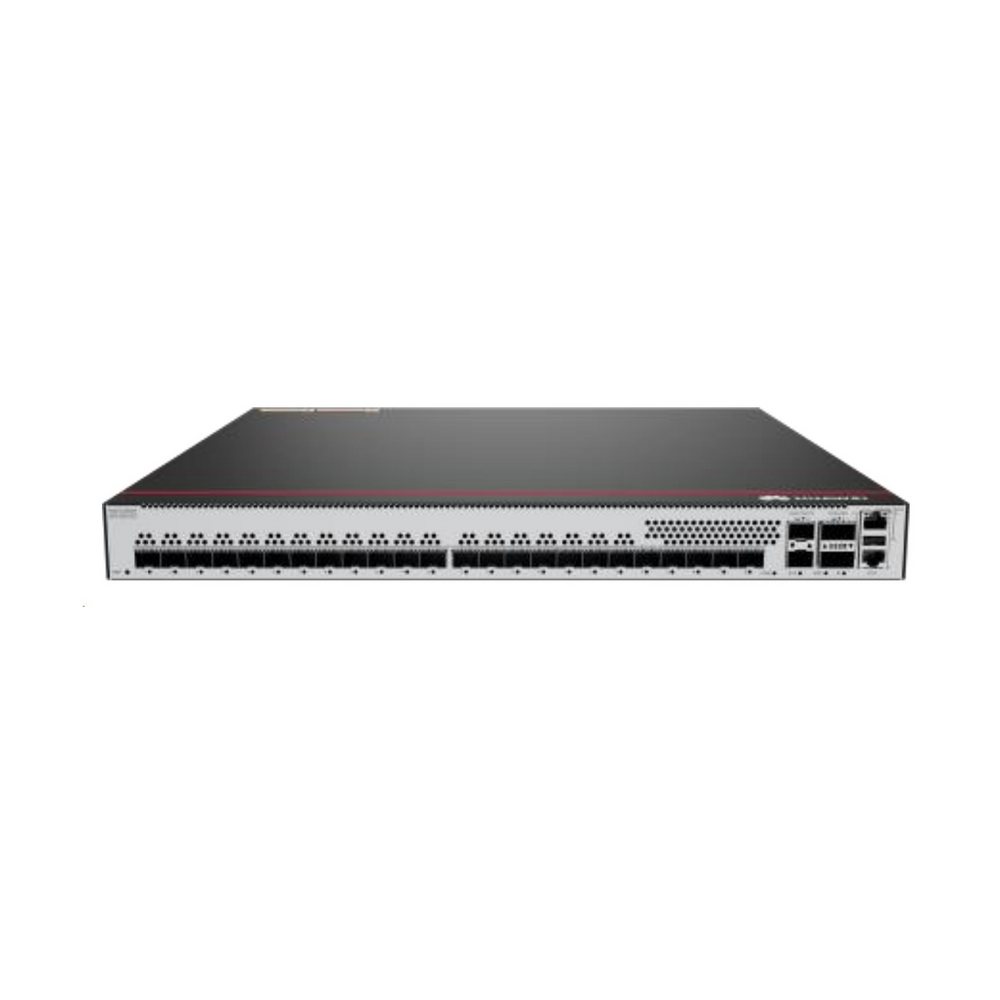

Huawei CloudEngine S6750-S16X10Y2CZ 16x10G+10x25G+2x100G Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei CloudEngine S6750-S16X10Y2CZ | 25GE/100GE Aggregation & Core Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The huawei s6750-s16x10y2cz is a high-performance, fixed-form-factor 1U Ethernet switch tailored specifically for next-generation campus and enterprise aggregation or core layers. As a premier model within the elite huawei s6750-s family, it offers an incredibly versatile port configuration, featuring 16 10 GE SFP+ ports, 10 flexible 25 GE SFP28 ports, and 2 high-speed 40/100 GE QSFP28 uplink ports.
Equipped with advanced virtualization capabilities, robust MACsec encryption, and intelligent telemetry, the huawei s6750-s16x10y2cz is the ideal hardware foundation for scalable, secure, and future-proof network deployments. By integrating this platform into your topology, enterprise architects can effortlessly bridge legacy 10G distribution networks with ultra-fast 100G core architectures.
Important B2B Procurement Note: Power supply modules are not included in the standard baseline chassis package of the huawei s6750-s16x10y2cz and must be specified and purchased separately based on your facility's electrical requirements.
Key Highlights
1. Comprehensive Port Mix
The huawei s6750-s16x10y2cz is equipped with 16 10 GE SFP+, 10 25 GE SFP28, and 2 40/100 GE QSFP28 ports, providing unmatched flexibility for high-density uplink capacity and server aggregation.
2. High Capacity & Throughput
Engineered for non-blocking performance, the huawei s6750-s architecture offers a 1.42 Tbps device switching capacity (scaling up to 2.32 Tbps system-wide) and a rapid forwarding rate of 450 Mpps.
3. Advanced Virtualization & Security
The huawei s6750-s16x10y2cz features distributed and centralized VXLAN routing with BGP-EVPN. Furthermore, MACsec encryption across all ports and seamless IPv4/IPv6 dual-stack support ensure total perimeter security for enterprise traffic.
4. Intelligent Operations & Management
Includes In-situ Flow Information Telemetry (IFIT) for real-time monitoring, intelligent iStack clustering, support for open programmability (Python/OPS), and full integration with cloud-based management platforms.
Recommended Accessories
To successfully stage your huawei s6750-s16x10y2cz deployment, select original hot-swappable modules based on your data center or campus requirements.
| Accessory | Category | Description |
|---|---|---|
| Power Supply Modules | Power | Dual hot-swappable (AC/DC), 1+1 redundancy; sold separately (180W–600W AC, 240W–400W DC). |
| Fan Module (FAN‑031A‑B) | Cooling | Supports up to one to two hot-swappable fans; front-to-rear airflow. |
Comparison with Similar Models
| Feature | S6750-S16X10Y2CZ | S6750-S16X8YZ | S6750-S24T16X8Y2CZ |
|---|---|---|---|
| Downlink Ports | 16×10 GE + 10×25 GE | 16×10 GE + 8×25 GE | 24×1 G + 16×10 GE + 8×25 GE |
| Uplink Ports | 2×40/100 GE | None (uplinks built-in) | 2×40/100 GE |
| Switching Capacity | 1.42 Tbps / 2.32 Tbps sys | 920 Gbps / 2.32 Tbps sys | 968 Gbps / 2.32 Tbps sys |
| Forwarding Rate | 450 Mpps | 450 Mpps | 450 Mpps |
| Fixed vs Mixed Ports | Mixed 10/25/40/100 GE | Mixed 10/25 GE | Mixed GigE + 10/25/40/100 GE |
Specifications
| Parameter | Specification |
|---|---|
| Ports | 16×10 GE SFP+, 10×25 GE SFP28, 2×40/100 GE QSFP28; 2 expansion slots |
| Switching Capacity | 1.42 Tbps (device) / 2.32 Tbps (system) |
| Forwarding Rate | 450 Mpps |
| System Memory | 4 GB DRAM (likely) |
| Storage (Flash) | 2 GB Flash (likely) |
| Power Supply Slots | 2 hot-swappable, 1+1 redundancy (modules sold separately) |
| Cooling | Supports up to 2 hot-swappable FAN‑031A‑B |
| Power Input Options | AC: 90–290 V; HV DC: 190–290 V; LV DC: –38.4 to –72 V |
| Dimensions (H×W×D) | 43.6 × 442 × 420 mm |
| Operating Conditions | –5 °C to +45 °C, 5–95% RH non-condensing, up to 5000 m altitude |
| Virtualization & Security | VXLAN (dist./central), BGP-EVPN, MACsec |
| O&M Capabilities | IFIT, iStack, OPS/Python support, cloud management |
