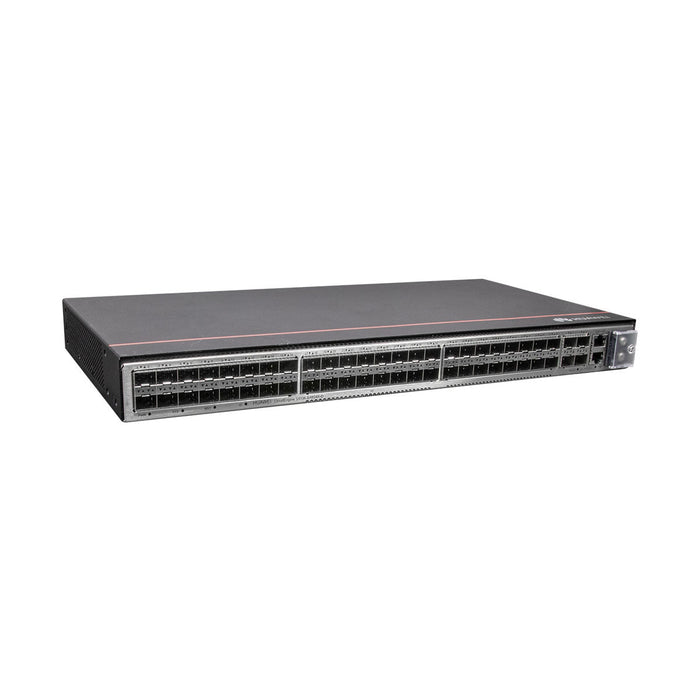

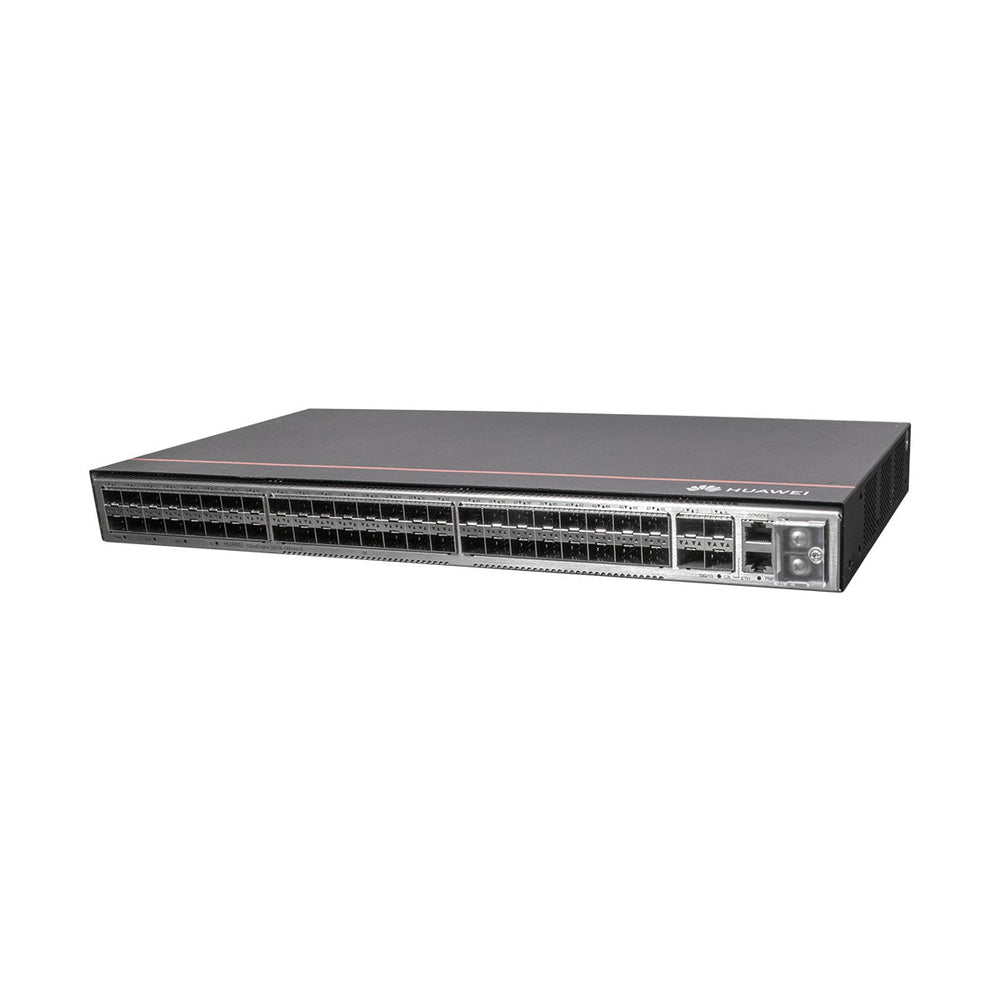

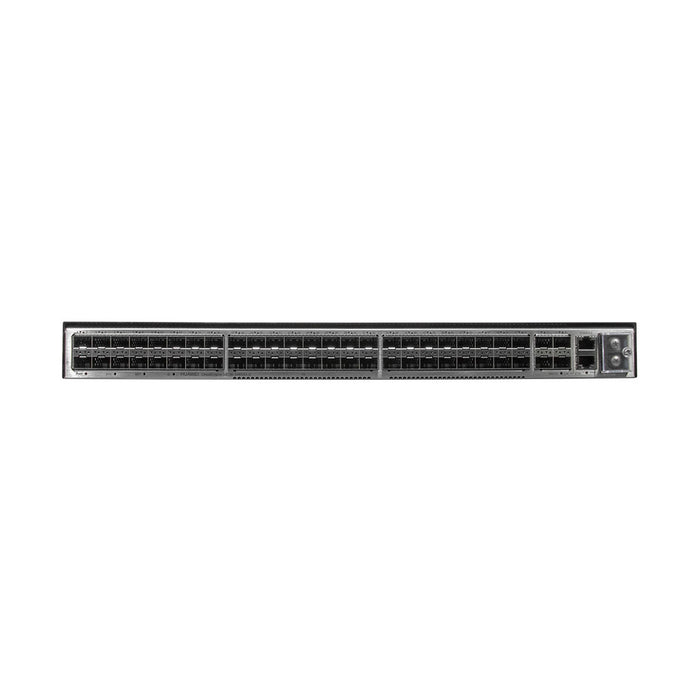

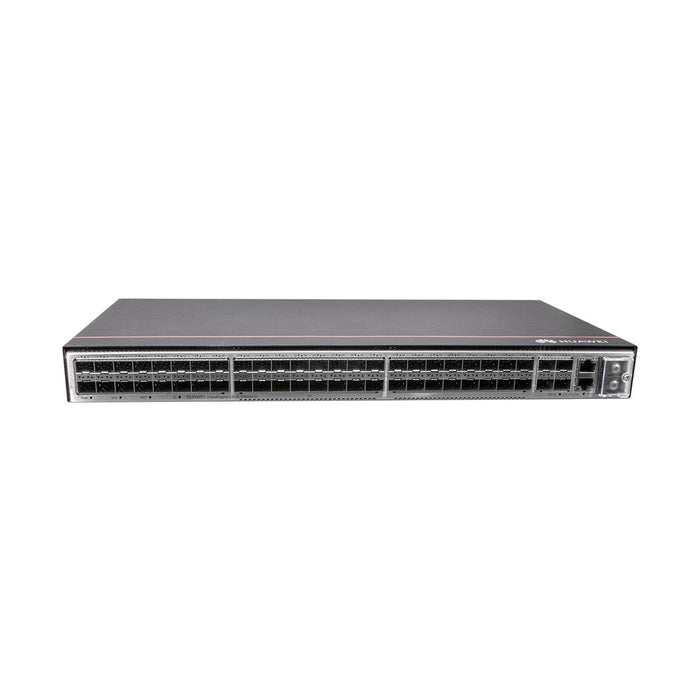

The Huawei CloudEngine S5736-S48S4X-D is a high-performance Layer 3 all-optical Gigabit Ethernet switch designed for enterprise campus networks and high-density access scenarios.
It offers 48 GE SFP ports and 4 10GE SFP+ uplink ports, providing flexible deployment options. With a switching capacity of up to 2.72 Tbps and a forwarding rate of 480 Mpps, this switch ensures efficient data handling.
It supports advanced features such as intelligent stacking (iStack), comprehensive security mechanisms, and energy-efficient design, making it a versatile solution for various networking needs.
Overview
Highlights
-
Port Configuration: 48 × GE SFP ports and 4 × 10GE SFP+ uplink ports.
-
High Performance: Switching capacity of up to 2.72 Tbps and forwarding rate of 480 Mpps ensure efficient data processing.
-
Advanced Layer 3 Features: Supports static routing, RIP, OSPF, BGP, and IS-IS for robust network routing capabilities.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.
-
Intelligent Stacking (iStack): Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.
-
Energy-Efficient Design: Intelligent fan speed adjustment for reduced power consumption and noise.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-10G-SR | SFP+ Transceiver | 10GBASE-SR SFP+, 850nm, multimode fiber, up to 300m |
| SFP-10G-LR | SFP+ Transceiver | 10GBASE-LR SFP+, 1310nm, single-mode fiber, up to 10km |
| SFP-10G-ER | SFP+ Transceiver | 10GBASE-ER SFP+, 1550nm, single-mode fiber, up to 40km |
| SFP-10G-ZR | SFP+ Transceiver | 10GBASE-ZR SFP+, 1550nm, single-mode fiber, up to 80km |
| CAB-SFP-1M | SFP+ Cable | 1-meter SFP+ direct attach copper cable |
| CAB-SFP-3M | SFP+ Cable | 3-meter SFP+ direct attach copper cable |
| CAB-SFP-5M | SFP+ Cable | 5-meter SFP+ direct attach copper cable |
Comparison with Similar Items
| Feature | S5736-S48S4X-D | S5736-S48S4X-A | S5736-S48S4XC |
|---|---|---|---|
| Downlink Ports | 48 × GE SFP | 48 × GE SFP | 48 × GE SFP |
| Uplink Ports | 4 × 10GE SFP+ | 4 × 10GE SFP+ | 4 × 10GE SFP+ |
| PoE Support | No | No | No |
| Switching Capacity | 2.72 Tbps | 2.72 Tbps | 1.36 Tbps |
| Forwarding Rate | 480 Mpps | 480 Mpps | 240 Mpps |
| Stacking Support | Yes (iStack) | Yes (iStack) | Yes (iStack) |
| Power Supply | Built-in DC | Built-in AC | External module |
| Ideal Use Case | Optical access | Optical access | Optical access |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5736-S48S4X-D |
| Downlink Ports | 48 × GE SFP ports |
| Uplink Ports | 4 × 10GE SFP+ ports |
| Switching Capacity | Up to 2.72 Tbps |
| Forwarding Rate | 480 Mpps |
| MAC Address Table | 32K entries |
| VLANs | Supports up to 4,096 VLANs (IEEE 802.1Q) |
| QoS | 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6 |
| Security Features | 802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | Built-in DC power module |
| Power Consumption | Typical: 87W; Maximum: 108W |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm (17.4 in. × 8.7 in. × 1.7 in.) |
| Weight | ≤ 3.2 kg (7.1 lbs) |
| Warranty | Limited lifetime warranty |
