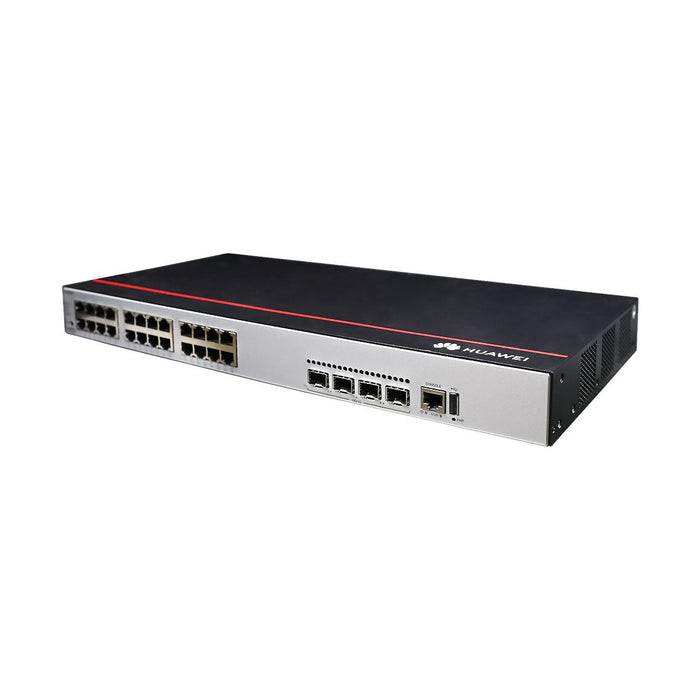

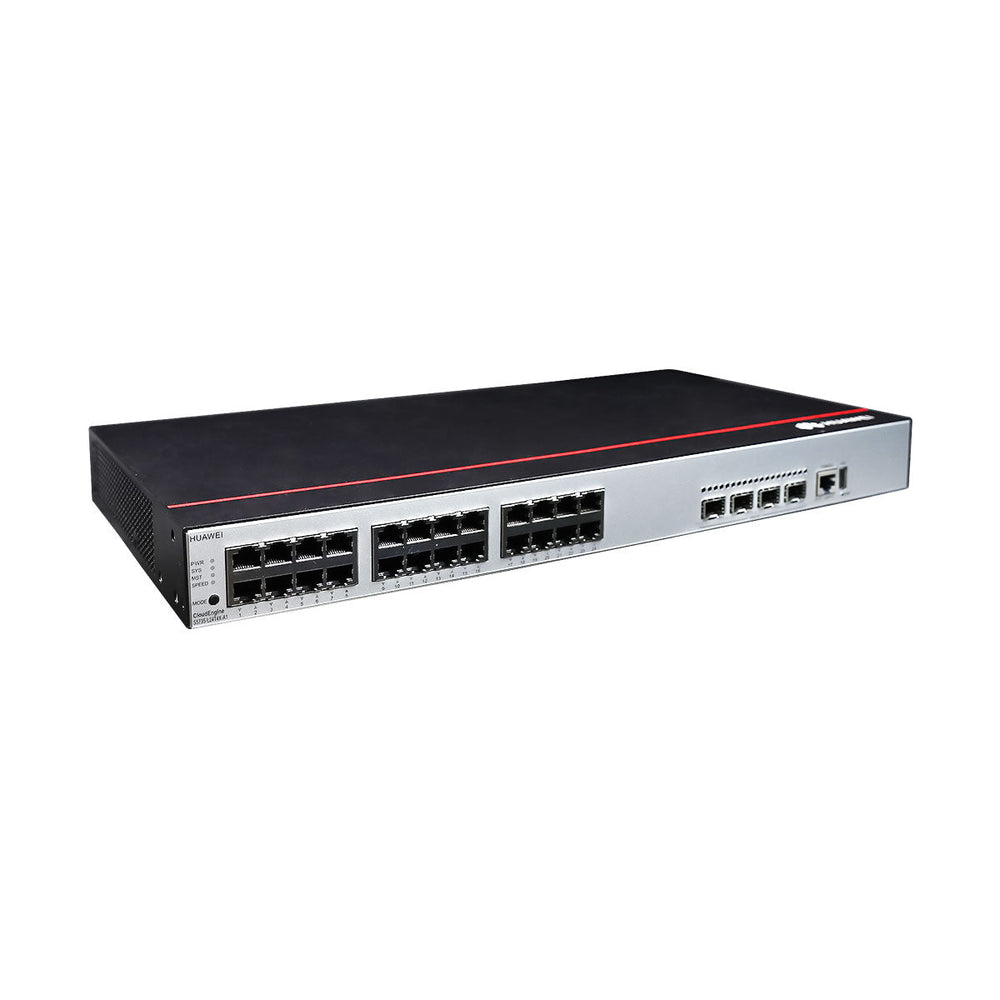

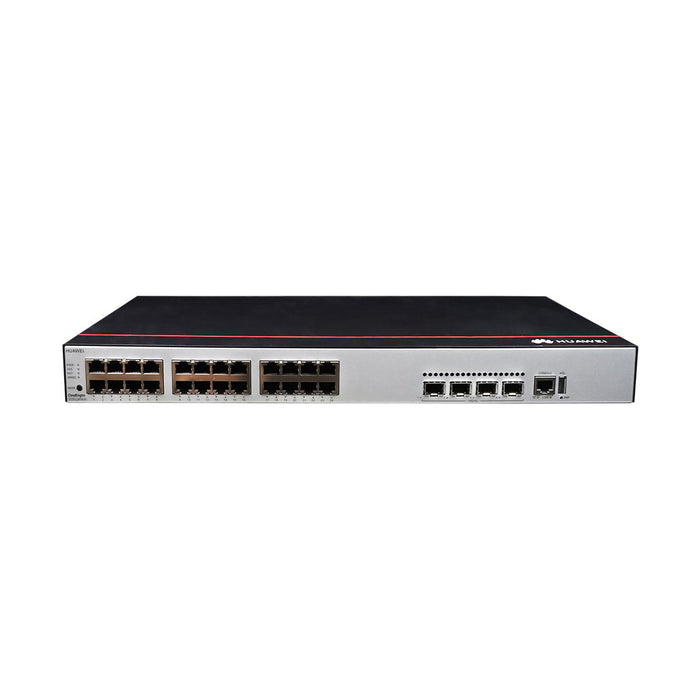

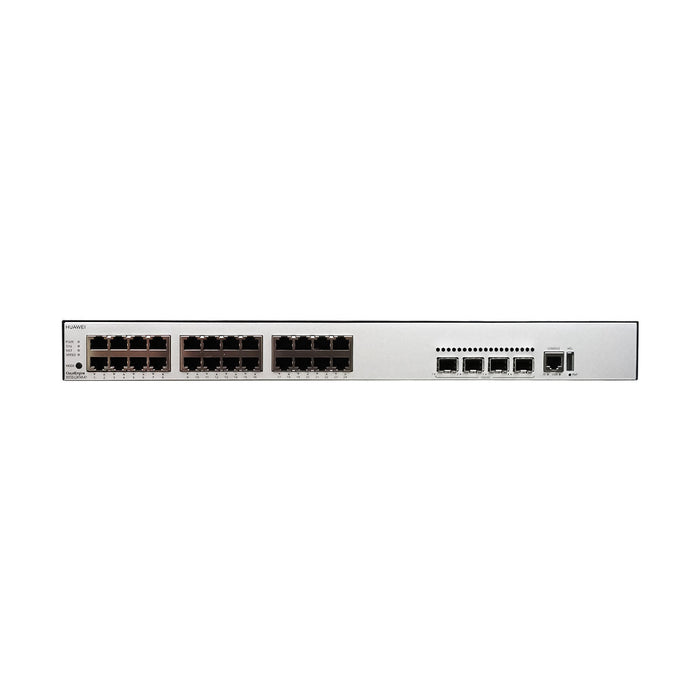

Huawei CloudEngine S5735-L24T4X-A1 24×GE & 4×10G SFP+ Plus License Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei CloudEngine S5735-L24T4X-A1 | 24-Port Gigabit Switch with 10G Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The s5735-l24t4x-a1 is a next-generation Layer 2+ smart-managed Gigabit Ethernet switch designed for enterprise campus networks and high-density access scenarios. As a cornerstone of the huawei cloudengine s5735 series, this enterprise-grade 24 port gigabit switch offers 24 10/100/1000BASE-T Ethernet ports and 4 dedicated 10 Gigabit SFP+ uplink ports, providing highly flexible deployment options for scaling networks.
With a switching capacity of up to 128 Gbps and a forwarding rate of 96 Mpps, the s5735-l24t4x-a1 ensures highly efficient data handling without bottlenecks. Operating within the renowned huawei s5735 ecosystem, this non-PoE model supports advanced features such as intelligent stacking (iStack), comprehensive security mechanisms, and a fan-optimized energy-efficient design. Whether you are standardizing your branch offices or upgrading a campus access layer, the huawei s5735 switch serves as a highly reliable, versatile solution for various networking needs.
-
Related Reading & Architecture Resource Guides:
-
Need help with your uplink optics? Review our 10G SFP+ Transceivers Buying Guide: Huawei Compatible Modules.
-
Evaluating access layer management? Check out: Huawei Switch Management Features and Access Layer Performance Analysis.
-
Key Highlights
1. 24-Port Gigabit Configuration
The s5735-l24t4x-a1 provides 24 10/100/1000BASE-T Ethernet ports and 4 10 Gigabit SFP+ uplink slots. As a high-performance 10g uplink switch, the huawei cloudengine s5735 guarantees smooth aggregation.
2. High-Performance Architecture
With a switching capacity of up to 128 Gbps and a forwarding rate of 96 Mpps, the huawei s5735 processes enterprise data efficiently. The s5735 backplane guarantees non-blocking line-rate forwarding.
3. Layer 2+ and Basic Layer 3 Features
The s5735-l24t4x-a1 supports IPv4/IPv6 static routing, RIP, and OSPF. These capabilities give the huawei s5735 switch robust network routing capabilities at the access edge.
4. Comprehensive Security
Every huawei switch s5735 features advanced perimeter protection. The cloudengine s5735 includes 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.
5. Intelligent Stacking (iStack)
The huawei cloudengine s5735 series supports stacking of up to 9 switches. Clustering your s5735-l24t4x-a1 units simplifies network management and enhances the scalability of the s5735.
6. Energy-Efficient Design
Intelligent fan speed adjustment reduces power consumption and noise for the huawei switch s5735. This makes the s5735 l24t4x highly suitable for quiet office environments.
7. Robust Centralized Management
The huawei s5735 offers web-based management, SNMP v1/v2c/v3, RMON, and CLI for the s5735-l24t4x-a1.
Recommended Accessories
Pair your s5735-l24t4x-a1 with genuine huawei cloudengine s5735 accessories to ensure peak performance.
| Product Model | Category | Description |
|---|---|---|
| SFP-10G-SR | SFP+ Transceiver | 10GBASE-SR SFP+, 850nm, multimode fiber, up to 300m |
| SFP-10G-LR | SFP+ Transceiver | 10GBASE-LR SFP+, 1310nm, single-mode fiber, up to 10km |
| SFP-10G-ER | SFP+ Transceiver | 10GBASE-ER SFP+, 1550nm, single-mode fiber, up to 40km |
| SFP-10G-ZR | SFP+ Transceiver | 10GBASE-ZR SFP+, 1550nm, single-mode fiber, up to 80km |
| CAB-SFP-1M | SFP+ Cable | 1-meter SFP+ direct attach copper cable |
| CAB-SFP-3M | SFP+ Cable | 3-meter SFP+ direct attach copper cable |
| CAB-SFP-5M | SFP+ Cable | 5-meter SFP+ direct attach copper cable |
| FAN-023A-B | Fan Module | Pluggable fan module for enhanced cooling |
Comparison with Similar Items
| Feature | S5735-L24T4X-A1 | S5735-L24P4X-A1 | S5735-L48T4X-A1 |
|---|---|---|---|
| Downlink Ports | 24 × GE | 24 × GE PoE+ | 48 × GE |
| Uplink Ports | 4 × 10GE SFP+ | 4 × 10GE SFP+ | 4 × 10GE SFP+ |
| PoE Support | No | Yes | No |
| Switching Capacity | 128 Gbps | 128 Gbps | 176 Gbps |
| Forwarding Rate | 96 Mpps | 96 Mpps | 132 Mpps |
| Stacking Support | Yes (iStack) | Yes (iStack) | Yes (iStack) |
| Ideal Use Case | Standard access | PoE access | High-density access |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5735-L24T4X-A1 |
| Downlink Ports | 24 × 10/100/1000BASE-T Ethernet ports |
| Uplink Ports | 4 × 10 Gigabit SFP+ ports |
| Switching Capacity | Up to 128 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 16K entries |
| VLANs | Supports up to 4,096 VLANs (IEEE 802.1Q) |
| QoS | 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6 |
| Security Features | 802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | Built-in AC power module (non-pluggable) |
| Power Consumption | Maximum: 45.6W |
| Operating Temperature | -5°C to 50°C (23°F to 122°F) |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm (17.4 in. × 8.7 in. × 1.7 in.) |
| Weight | ≤ 3.48 kg (7.67 lbs) |
| Warranty | Limited lifetime warranty |
