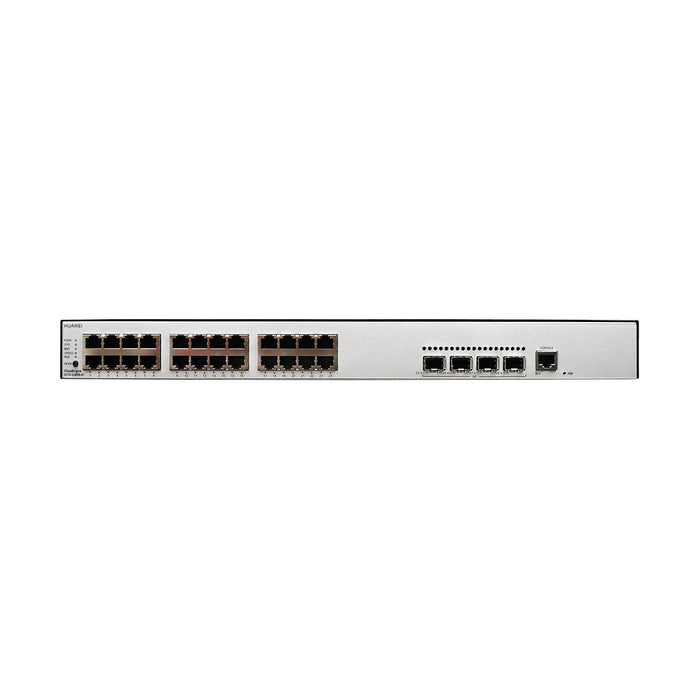

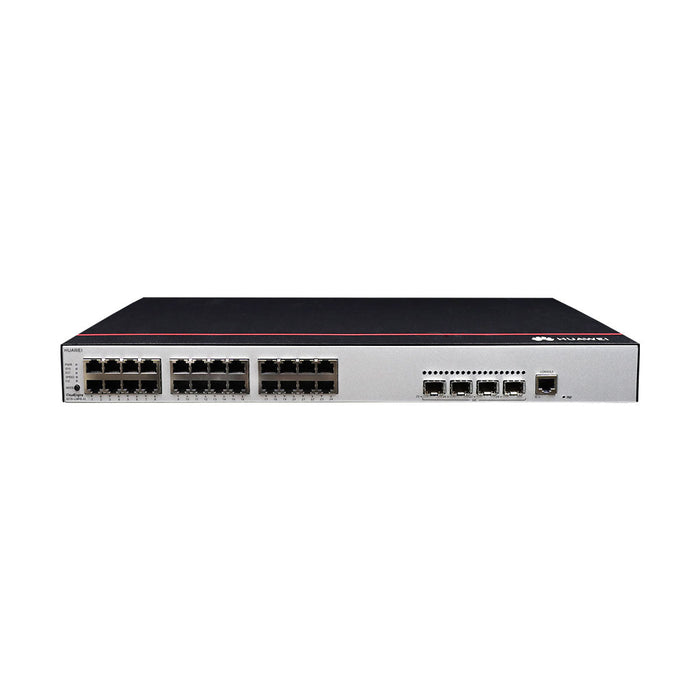

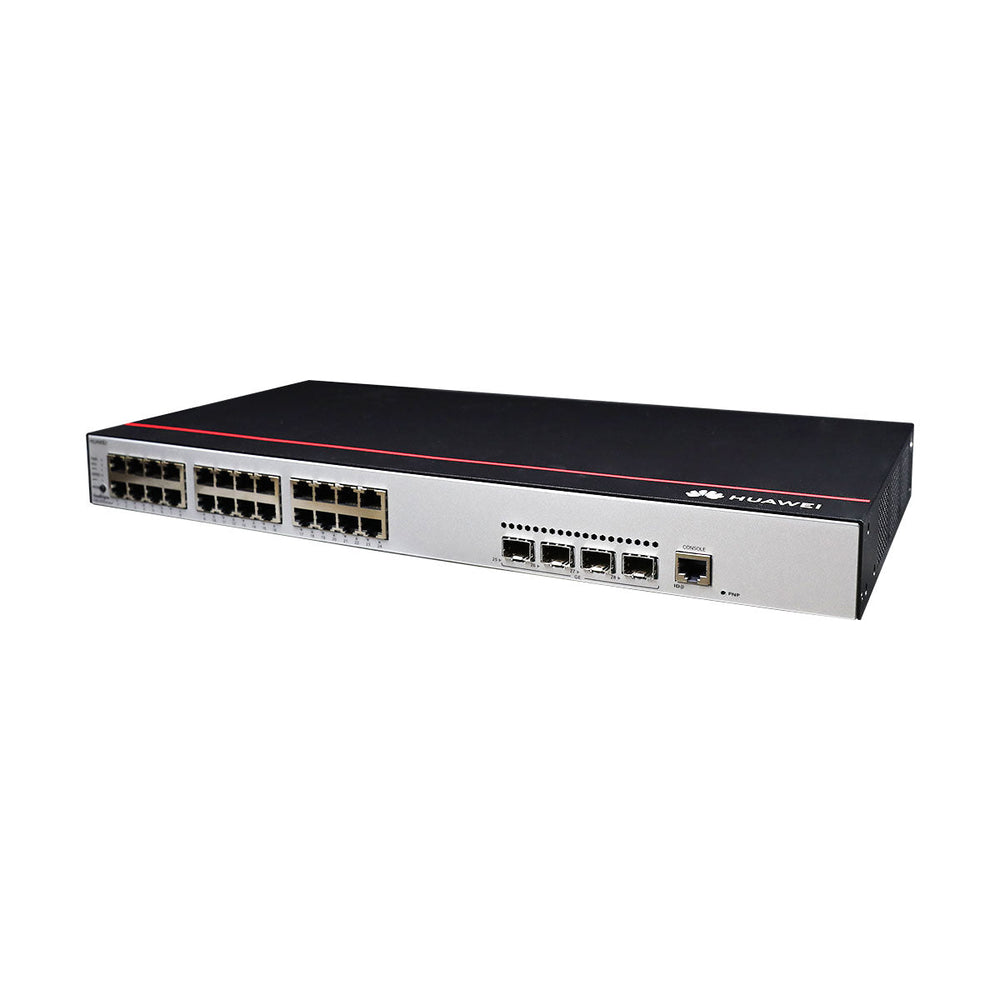

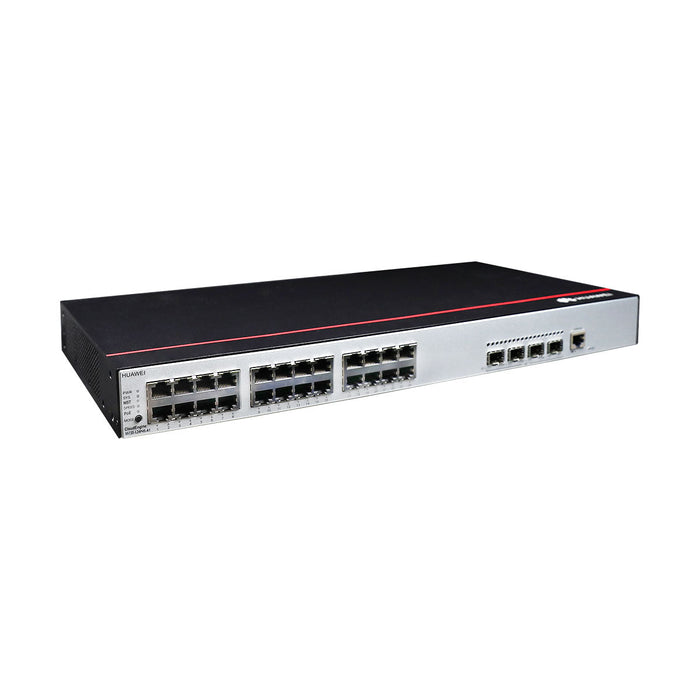

Huawei CloudEngine S5735-L24T4S-A1 24GE Access Switch for Enterprise Office, CCTV Surveillance & Campus Network Access
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei CloudEngine S5735-L24T4S-A1 | 24-Port Gigabit Access Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The huawei cloudengine s5735 series introduces the s5735-l24t4s-a1, a foundational Layer 2+ Gigabit Ethernet access switch with basic Layer 3 capabilities. Designed for campus networks, SMB LANs, and IoT access, this 24 port switch delivers flexible copper-to-fiber networking. As a leading huawei s5735 switch, it provides 24 10/100/1000BASE-T ports and 4 Gigabit SFP uplinks.
The huawei switch s5735 ensures stable transmission for multi-service traffic. With a switching capacity of 56 Gbps, the cloudengine s5735 architecture handles HD CCTV video streams, VoIP, and enterprise data seamlessly. This managed switch adopts a reliable dual-core 1000 MHz CPU, ensuring the s5735 processes medium-scale deployments efficiently. By choosing the huawei s5735, you secure an elite enterprise ethernet switch. Need help planning? The huawei cloudengine s5735 ecosystem is highly scalable. Deploying the s5735-l24t4s-a1 guarantees future-proof access.
Key Highlights
1. Port Configuration
The s5735-l24t4s-a1 features 24 GE ports and 4 GE SFP uplinks. This makes the huawei s5735 an ideal access layer.
2. High Performance
The cloudengine s5735 delivers 56 Gbps system capacity. Every huawei s5735 switch guarantees smooth handling of office traffic.
3. Layer 3 Routing Capability
The huawei switch s5735 supports static routing, RIP, and OSPF. The s5735 enables inter-VLAN communication and basic branch network connectivity.
4. Enterprise Security Protection
Secure your LAN with the huawei cloudengine s5735. This framework includes 802.1X, MAC filtering, and port isolation natively across the huawei s5735.
5. Intelligent Stacking (iStack)
The cloudengine s5735 supports stacking of multiple devices. Expand your architecture easily using the s5735.
6. Efficient Thermal & Energy Design
The s5735-l24t4s-a1 features optimized airflow. The huawei s5735 switch operates stably in wiring closets and enterprise IDF rooms.
7. Centralized Network Management
The huawei switch s5735 supports Web UI, CLI, SSH, and SNMP for the huawei cloudengine s5735 infrastructure.
Recommended Accessories
To maximize the performance of your deployment, pair your unit with genuine compatible optical modules.
| Category | Product Model | Description |
|---|---|---|
| SFP Transceiver | SFP-GE-LX-SM1310 | 1G single-mode fiber module, up to 10km for campus inter-building links |
| SFP Transceiver | SFP-GE-SX-MM850 | 1G multimode fiber module, up to 550m for building backbone |
| SFP Transceiver | SFP-GE-T | 1G RJ45 copper SFP module, up to 100m over Cat5e/Cat6 |
| SFP Cable | CAB-SFP-1M | 1m DAC cable for rack-level short connections |
| SFP Cable | CAB-SFP-3M | 3m DAC cable for equipment room interconnection |
| SFP Cable | CAB-SFP-5M | 5m DAC cable for cabinet-to-cabinet links |
Comparison with Similar Items
| Feature | S5735-L24T4S-A1 | S5735-L24P4S-A | S5735-L24T4X-A1 |
|---|---|---|---|
| Downlink Ports | 24 GE | 24 GE PoE+ | 24 GE |
| Uplink Ports | 4 GE SFP | 4 GE SFP | 4 x 10GE SFP+ |
| PoE Support | No | Yes (380W) | No |
| Switching Capacity | 56 Gbps / 336 Gbps | 56 Gbps / 336 Gbps | 128 Gbps / 336 Gbps |
| Forwarding Rate | 42 Mpps | 42 Mpps | 96 Mpps |
| Routing Protocols | Static / RIP / OSPF | Static / RIP / OSPF | Static / RIP / OSPF |
| Hardware Platform | 2-Core CPU, 512 MB RAM | 2-Core CPU, 512 MB RAM | Higher-performance platform |
| Ideal Use Case | Office LAN / CCTV / IoT access | IP surveillance + Wi-Fi AP access | High-speed uplink campus access |
Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model | S5735-L24T4S-A1 | Enterprise access-layer switch |
| Downlink Ports | 24 x 10/100/1000BASE-T | Wired endpoints: PCs, IP phones, cameras, APs |
| Uplink Ports | 4 Gigabit SFP | Fiber uplink for aggregation and backbone |
| Switching Capacity | 56 Gbps / 336 Gbps | Device/system forwarding capability |
| Forwarding Rate | 42 Mpps | Packet processing throughput |
| MAC Address Table | 32K entries | Large-scale device learning capability |
| VLANs | Up to 4,096 (802.1Q) | Network segmentation and isolation |
| QoS | 8 queues per port (SP/WRR/SP+WRR) | Traffic prioritization control |
| IPv6 Features | IPv6 host, static routing, OSPFv3 | IPv6 compatibility and routing support |
| Security Features | 802.1X, DHCP Snooping, ARP Inspection, ACL | Enterprise LAN security enforcement |
| Management | Web / CLI / SSH / SNMP / RMON | Multi-layer network management |
| Power Supply | Built-in AC power module | Fixed internal power architecture |
| Power Consumption | Typical 32.7W / Max 47.6W | Energy usage under different loads |
| Operating Temperature | -5°C to 50°C | Enterprise indoor deployment environment |
| Dimensions | 442 x 220 x 43.6 mm | Standard rack-mount 1U chassis |
| Weight | 3.34 kg (with packaging) | Accurate logistics and deployment planning |
| Hardware Platform | 2-Core 1000 MHz CPU, 512 MB RAM | Control-plane processing capability |
| Warranty | Limited lifetime warranty | Huawei enterprise hardware warranty |
Why Choose Huawei S5735-L24T4S-A1?
The S5735-L24T4S-A1 is optimized for stable, cost-efficient enterprise access-layer deployments where PoE is not required but high reliability and scalability are essential.
It is widely deployed in:
-
Enterprise office LAN infrastructure (finance, HR, R&D departments)
-
IP surveillance system aggregation (CCTV monitoring networks)
-
Campus building access networks (universities, schools, training centers)
-
Hospital internal networks and medical device connectivity
-
Smart building IoT access (sensors, controllers, automation systems)
-
SMB branch office networking
-
Wi-Fi AP backhaul aggregation (non-PoE architecture)
Compared with PoE models, it provides a more cost-effective and stable architecture for environments where endpoint power is not required, while still maintaining enterprise-grade Layer 3 routing, security, and stacking capabilities.
