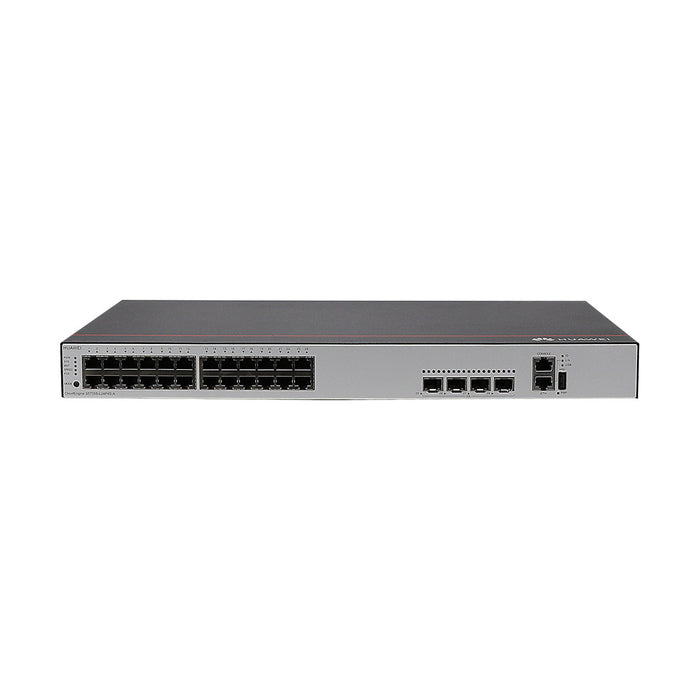

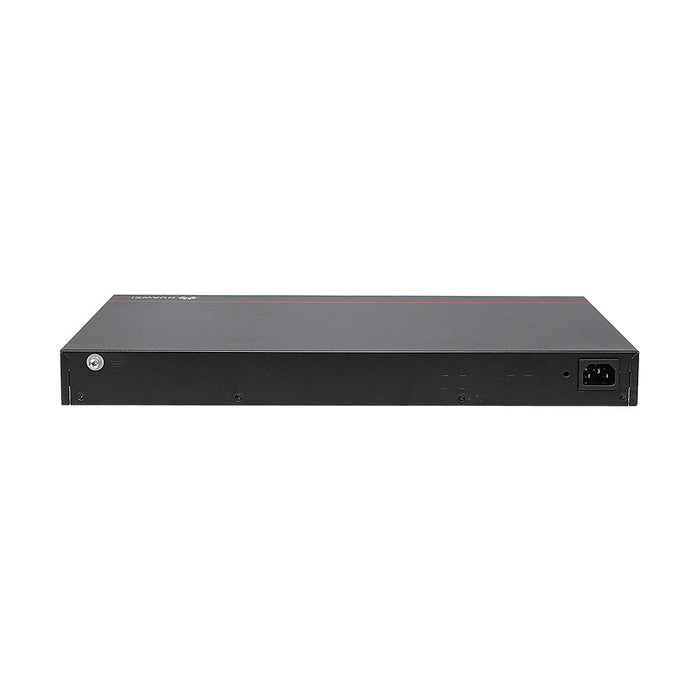

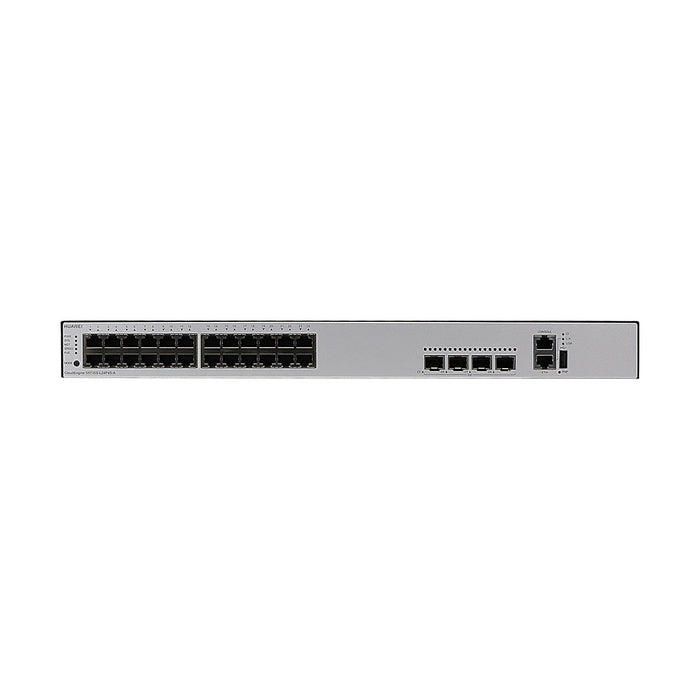

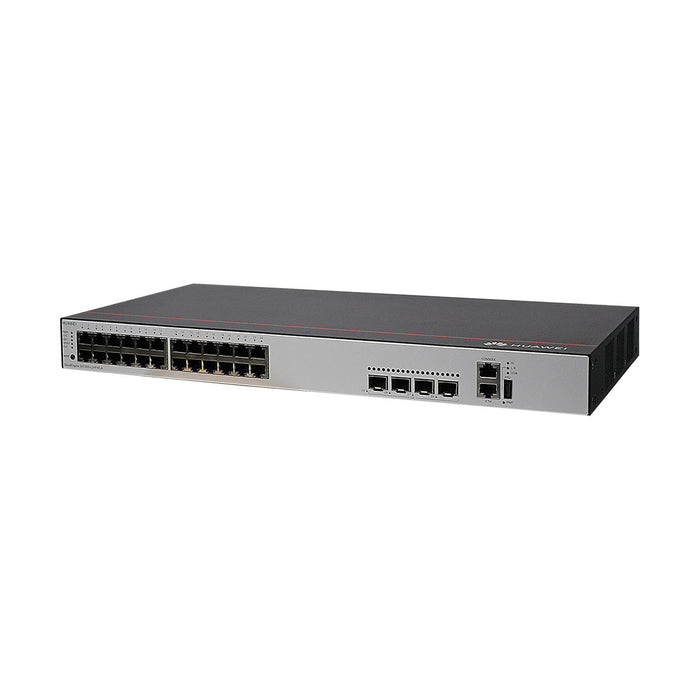

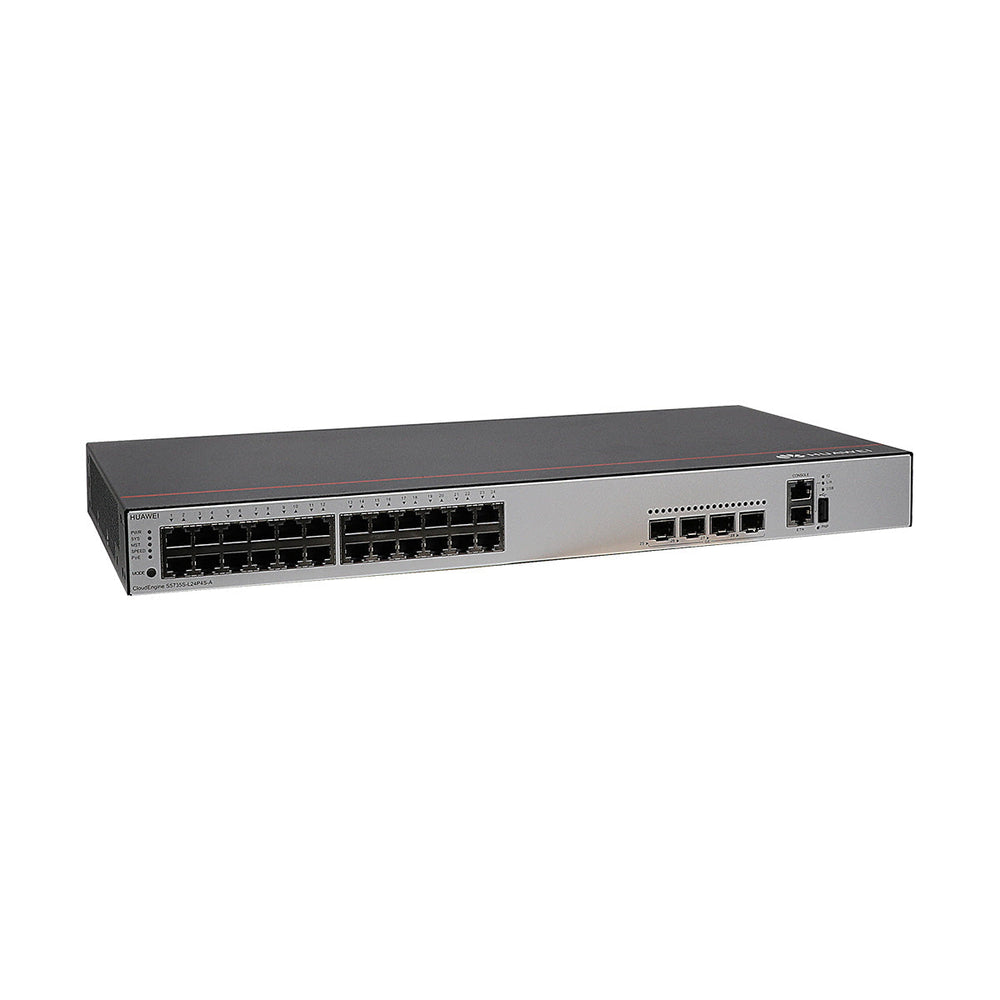

Huawei CloudEngine S5735-L24P4S-A 24-Port Gigabit Layer 2+ Managed PoE+ Switch with 4GE SFP Uplinks
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei CloudEngine S5735-L24P4S-A | 24-Port PoE+ Managed Access Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The huawei cloudengine s5735 series introduces the s5735 l24p4s a, a highly reliable Layer 2+ managed poe switch with foundational Layer 3 routing features. Designed for enterprise campus networks, SMB offices, hotels, schools, and retail environments, this campus access switch delivers stable wired connectivity and robust Power over Ethernet (PoE+) delivery.
As a versatile huawei s5735 switch, it provides 24 Gigabit RJ45 PoE+ ports and 4 Gigabit SFP uplink slots, enabling flexible copper access with fiber uplink expansion. By deploying the s5735 l24p4s a, network administrators gain advanced iStack clustering, comprehensive security frameworks, and simplified management inherent to the huawei s5735 architecture. Whether you are scaling a surveillance system or expanding a Wi-Fi network, this managed poe switch is optimized for environments where moderate density and stable performance are required.
-
Related Reading & Architecture Resource Guides:
-
Evaluating Huawei vs Cisco for your access layer? Check out: Huawei Switch vs Cisco Switch: Choosing the Most Cost-Effective Option.
-
Need help planning your PoE budget? Review: Huawei PoE Switches: Optimizing Enterprise Networks and Reducing Power Costs.
-
Key Highlights
1. 24 Gigabit PoE+ Access Ports
The s5735 l24p4s a acts as a fully capable poe switch, supporting IEEE 802.3af/at PoE+ for powering:
-
WiFi access points (WiFi 5 / WiFi 6 APs)
-
IP surveillance cameras (HD/4K CCTV systems)
-
VoIP phones for enterprise communication
-
Access control systems and smart office IoT devices
-
POS terminals connected to the huawei cloudengine s5735.
2. 4 Gigabit SFP Fiber Uplinks
The huawei s5735 switch supports flexible fiber uplink connectivity for:
-
Office backbone aggregation and core network links
-
Hotel floor network distribution
-
Campus building interconnection running on the s5735
-
Surveillance control room backhaul utilizing the huawei switch s5735.
3. Enterprise Switching Performance
The s5735 l24p4s a delivers stable performance for business access networks:
-
Switching Capacity: 56 Gbps / 336 Gbps
-
Forwarding Rate: 42 Mpps
-
Supports multi-AP WiFi traffic, CCTV video streams, and VLAN segmentation on the cloudengine s5735.
4. 380W PoE Power Budget
As a robust managed poe switch, the huawei s5735 provides up to 380W total PoE output, enabling simultaneous operation of wireless AP clusters and IP camera arrays across the s5735 l24p4s a.
5. Layer 2+ and Basic Layer 3 Routing
The huawei switch s5735 supports essential enterprise routing functions:
-
Static routing, RIP, and OSPF
-
IPv6 support for future-ready networking
-
Designed for small-to-medium enterprise network segmentation. (Note: Advanced routing like BGP/IS-IS is not supported on this campus access switch model of the huawei cloudengine s5735).
6. Security Protection System
The cloudengine s5735 includes enterprise-grade security features. The s5735 utilizes 802.1X authentication, ACL access control, DHCP Snooping, ARP Inspection, and MAC filtering to defend your network.
7. iStack Intelligent Stacking
The huawei s5735 series supports stacking of up to 9 switches. Clustering your s5735 l24p4s a units enables centralized management and scalability for the huawei cloudengine s5735.
Recommended Application Scenarios
The cloudengine s5735 is highly adaptable. The s5735 l24p4s a is recommended for:
-
CCTV surveillance systems (multi-camera IP security) using a poe switch.
-
WiFi AP deployment in enterprise offices running the huawei s5735.
-
Hotel room and floor networking infrastructure standardizing on the huawei s5735 switch.
-
Retail chain store networks requiring a managed poe switch.
-
School campus LAN systems leveraging the s5735.
-
Hospital and clinic networking utilizing the huawei switch s5735.
-
Business edge aggregation networks functioning as a campus access switch.
Recommended Accessories
To maximize the performance of your huawei switch s5735, pair your s5735 l24p4s a with genuine huawei s5735 accessories.
| Category | Product Model | Description |
|---|---|---|
| SFP Transceiver | SFP-GE-LX-SM1310 | 1G single-mode fiber module, up to 10km uplink |
| SFP Transceiver | SFP-GE-SX-MM850 | 1G multimode fiber module, up to 550m |
| SFP Transceiver | SFP-GE-T | 1G RJ45 copper SFP module, up to 100m |
| SFP Cable | CAB-SFP-1M | 1m DAC cable for rack interconnect |
| SFP Cable | CAB-SFP-3M | 3m DAC cable for equipment room |
| SFP Cable | CAB-SFP-5M | 5m DAC cable for structured cabling |
Comparison with Similar Items
| Feature | S5735-L24P4S-A | S5735-L12P4S-A | S5735-L48P4S-A1 |
|---|---|---|---|
| Downlink Ports | 24GE PoE+ | 12GE PoE+ | 48GE PoE+ |
| Uplink Ports | 4GE SFP | 4GE SFP | 4GE SFP |
| PoE Support | Yes (380W) | Yes (360W) | Yes (380W) |
| Switching Capacity | 56 / 336 Gbps | 32 / 336 Gbps | 104 / 432 Gbps |
| Forwarding Rate | 42 Mpps | 24 Mpps | 78 Mpps |
| Routing Protocols | RIP / OSPF | RIP / OSPF | RIP / OSPF |
| Ideal Use Case | Medium PoE access | Compact PoE access | High-density PoE access |
Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model | S5735-L24P4S-A | Enterprise Layer 3 PoE+ access switch |
| Downlink Ports | 24 x 10/100/1000BASE-T PoE+ | Endpoint power + data access |
| Uplink Ports | 4 GE SFP | Fiber uplinks for aggregation/core |
| Switching Capacity | 56 Gbps / 336 Gbps | Device and system switching throughput |
| Forwarding Rate | 42 Mpps | Packet forwarding performance |
| MAC Address Table | 32K entries | Layer 2 device scale |
| VLAN Support | Up to 4094 VLANs (802.1Q) | Network segmentation |
| Routing Features | Static routing, RIP, OSPF | Layer 3 inter-VLAN routing |
| IPv6 Support | Supported | Future-ready networking |
| QoS | 8 queues per port | Traffic prioritization |
| Security Features | 802.1X, ACL, DHCP Snooping, ARP Inspection | Access control protection |
| Management | Web / CLI / SNMP / SSH / RMON | Network monitoring and control |
| Power Supply | Built-in AC power module | Integrated power design |
| PoE Power Budget | 380W | Total PoE output capacity |
| Power Consumption | 53W (device max) / 451W (full PoE load) | Realistic power budget planning |
| Operating Temperature | -5°C to 50°C | Operating environment range |
| Dimensions | 442 x 220 x 43.6 mm | Rackmount size |
| Weight | 4.31 kg | Deployment reference |
| Warranty | Limited lifetime warranty | Vendor support coverage |
Why Choose Huawei S5735-L24P4S-A?
The Huawei S5735-L24P4S-A is designed for organizations that need a reliable, mid-density PoE+ access switch with stable Layer 3 routing and fiber uplink capability.
It is especially suitable for:
-
CCTV surveillance deployments in commercial buildings
-
Office WiFi AP expansion (WiFi 5 / WiFi 6)
-
Hotel floor network distribution
-
Retail chain store infrastructure
-
School campus and training center networks
-
Hospital and healthcare systems
-
Branch office LAN expansion
-
Smart building and IoT deployments
With 24 PoE+ ports, 4 SFP uplinks, 380W PoE budget, correct Layer 3 routing scope (RIP/OSPF), and accurate enterprise switching performance, it provides a dependable and professionally aligned networking foundation for medium-scale business environments.
