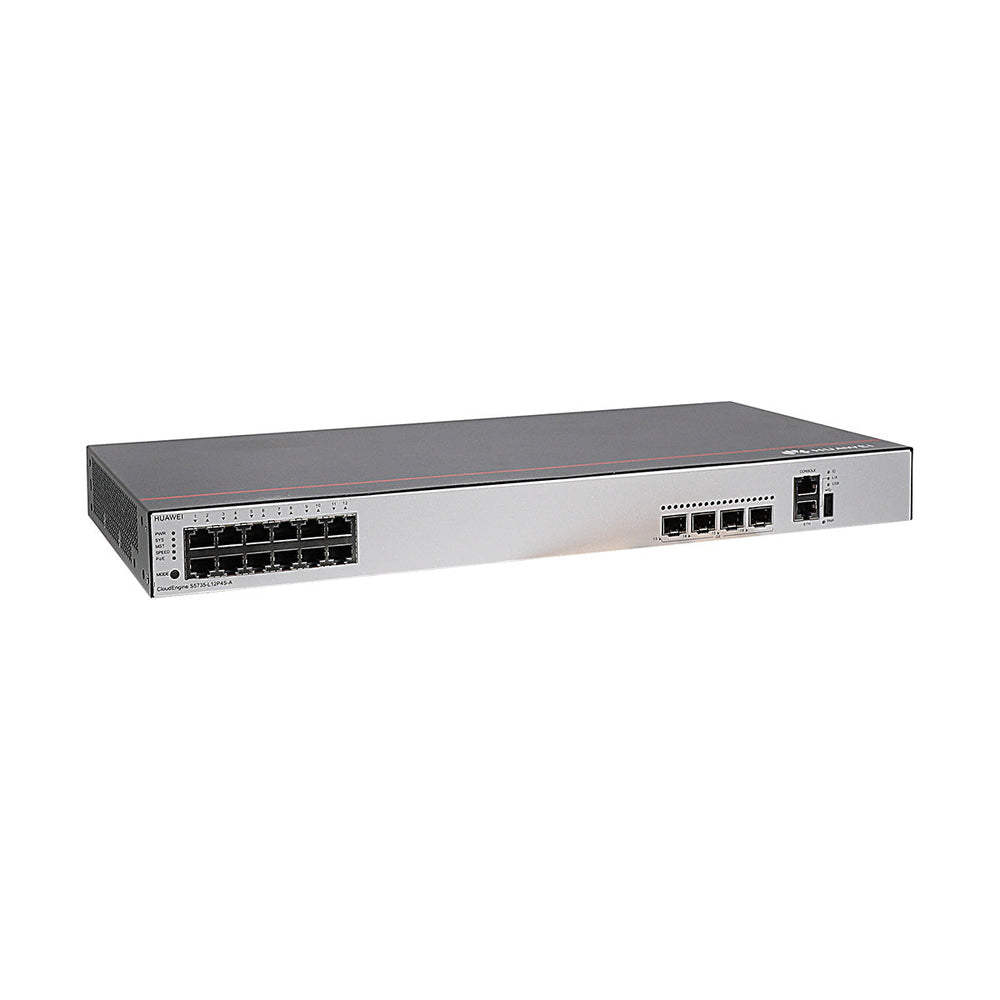

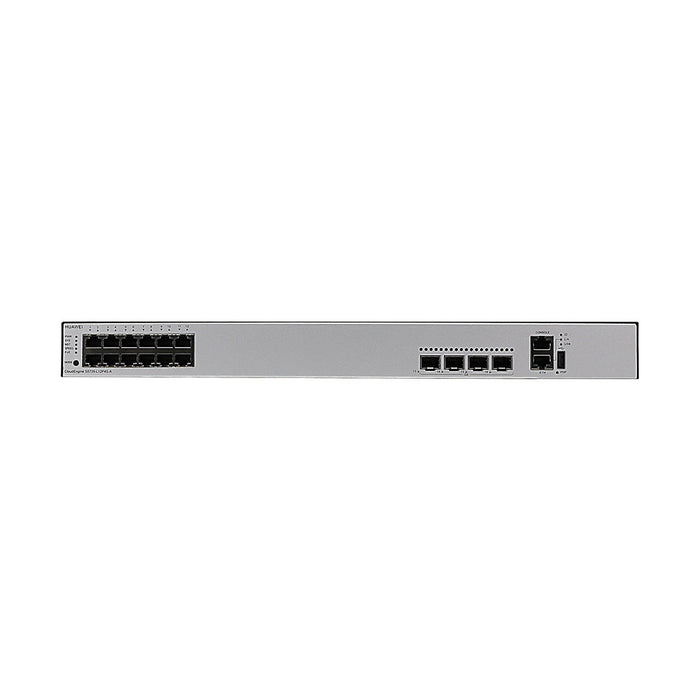

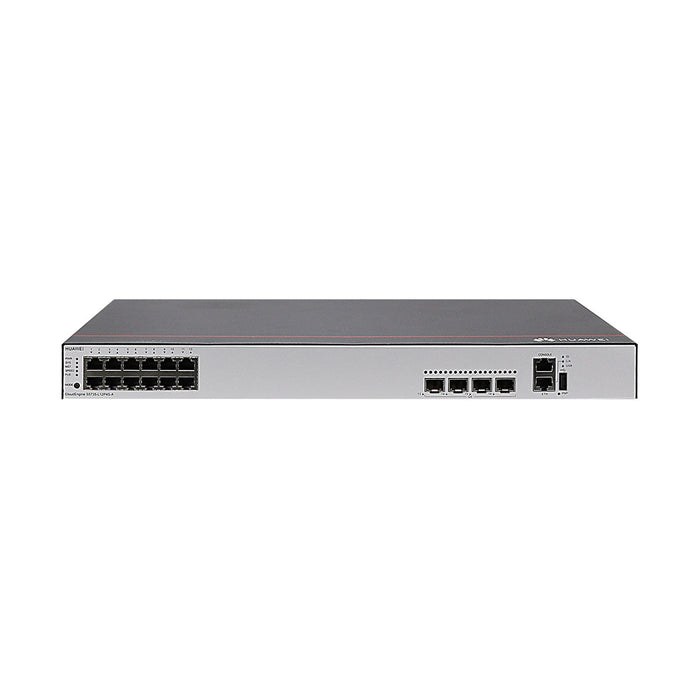

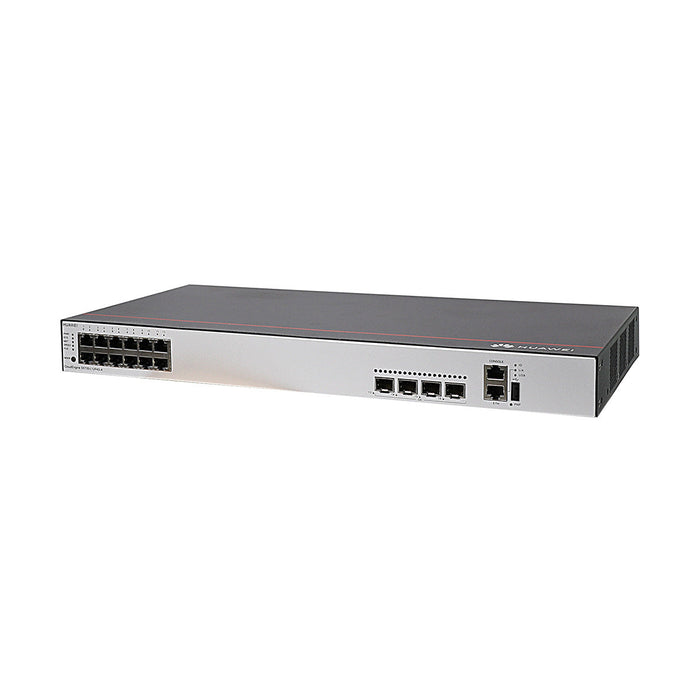

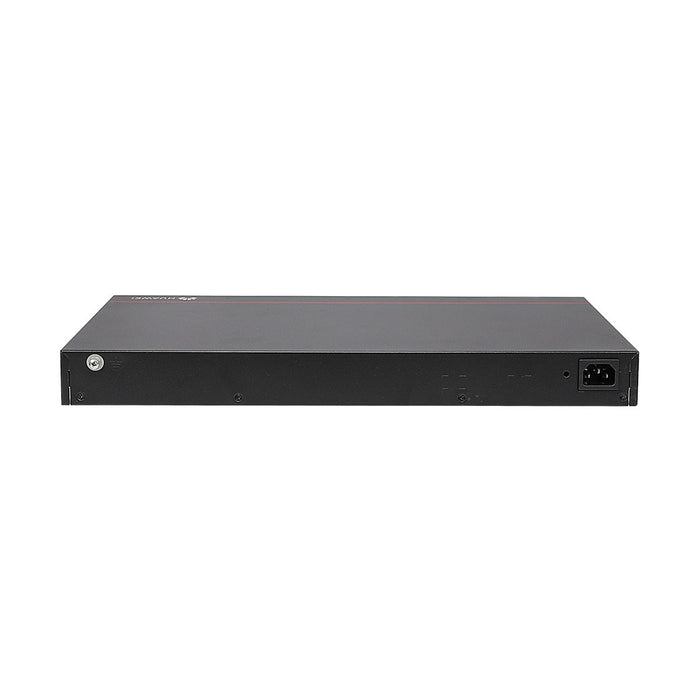

Huawei CloudEngine S5735-L12P4S-A 12-Port Gigabit Layer 3 Managed PoE+ Switch with 4 GE SFP Uplinks
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei CloudEngine S5735-L12P4S-A | 12-Port Gigabit Compact PoE+ Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The huawei cloudengine s5735 series introduces the s5735-l12p4s-a, an incredibly powerful, space-saving Layer 2+ managed 12 port poe switch featuring basic Layer 3 routing capabilities. Designed specifically for small and medium business networks, branch offices, retail stores, and smart office environments, this compact poe switch delivers uncompromising performance where rack space is limited.
As a highly versatile huawei s5735 switch, it provides 12 Gigabit RJ45 PoE+ access ports and 4 Gigabit SFP uplink ports, allowing both high-capacity data and electrical power delivery to connected edge devices. Integrating enterprise-grade security, reliable poe switch output (up to 360W), and the streamlined management of the huawei s5735 ecosystem, this unit is the perfect foundation for scaled access networks. Whether you are deploying IP cameras or wireless access points, the huawei switch s5735 ensures your localized network remains stable and secure.
📥 Download Technical Resources: Planning your network topology? Download the official huawei s5735 datasheet below to review exact forwarding rates, power configurations, and dimensions for the entire huawei cloudengine s5735 portfolio.
Key Highlights
1. 12 Gigabit PoE+ Access Ports (Full Power)
This compact poe switch supports the IEEE 802.3af/at PoE+ standard. As a full-power 12 port poe switch, it provides up to 30W per port, perfectly powering:
-
WiFi 6 / WiFi 5 access points
-
IP surveillance cameras and NVRs
-
VoIP phones and smart sensors
-
Access control terminals and retail POS systems
-
Perfect for tight deployments utilizing the huawei s5735 switch architecture.
Beyond copper access, the huawei cloudengine s5735 provides flexible optical uplink connectivity for:
-
Fiber connections to aggregation switches
-
Inter-floor backbone links
-
Security monitoring room connections integrated with the s5735 system.
3. Enterprise Switching Performance
Every huawei s5735 is built for non-blocking throughput. The s5735-l12p4s-a delivers:
-
Switching Capacity: 32 Gbps / 336 Gbps
-
Forwarding Rate: 24 Mpps
-
Ensures smooth traffic flow for video surveillance and data converged networks running on the cloudengine s5735.
4. 360W PoE Power Budget
Unlike standard entry models, this huawei switch s5735 supports a massive 360W total PoE power budget. This allows simultaneous full-power delivery across all 12 ports, making it an elite poe switch for small to mid-size environments demanding the reliability of the huawei cloudengine s5735.
5. Layer 2+ & Basic Layer 3 Network Features
The s5735 supports enterprise routing and traffic control features. Your huawei s5735 switch handles Static routing, RIP, OSPF, IPv6 support, and deep VLAN segmentation directly at the access edge.
6. Enterprise Security Framework
Protect your business networks. The cloudengine s5735 includes 802.1X authentication, ACL access control, DHCP Snooping, ARP Inspection, and MAC filtering. Every huawei switch s5735 actively prevents unauthorized access.
7. Compact Energy-Efficient Design
The huawei s5735 is engineered for tight spaces. Its compact form factor is highly suitable for wall cabinets, small racks, retail IT closets, and hotel floor cabinets standardizing on the huawei cloudengine s5735.
Recommended Application Scenarios
The cloudengine s5735 is highly adaptable. The s5735-l12p4s-a is strongly recommended for:
-
CCTV surveillance systems powered by a huawei switch s5735.
-
WiFi AP deployments requiring a robust 12 port poe switch.
-
Small office LAN networks utilizing the huawei s5735.
-
Retail chain stores requiring a compact poe switch.
-
Hotel room floor networking managed by the huawei cloudengine s5735.
-
School classrooms and labs running the s5735.
-
Access control systems secured by the huawei s5735 switch.
Recommended Accessories
To maximize the performance of your huawei switch s5735, pair it with genuine huawei s5735 optical components.
| Category | Product Model | Description |
|---|---|---|
| SFP Transceiver | SFP-GE-LX-SM1310 | 1G single-mode fiber module, up to 10km uplink |
| SFP Transceiver | SFP-GE-SX-MM850 | 1G multimode fiber module, up to 550m short-range link |
| SFP Transceiver | SFP-GE-T | 1G RJ45 copper SFP module, up to 100m |
| SFP Cable | CAB-SFP-1M | 1m DAC cable for short-range equipment links |
| SFP Cable | CAB-SFP-3M | 3m DAC cable for rack interconnect |
| SFP Cable | CAB-SFP-5M | 5m DAC cable for cabinet interconnect |
Comparison with Similar Items
| Feature | S5735-L12P4S-A | S5735-L24P4S-A | S5735-L48P4S-A1 |
|---|---|---|---|
| Downlink Ports | 12GE PoE+ | 24GE PoE+ | 48GE PoE+ |
| Uplink Ports | 4GE SFP | 4GE SFP | 4GE SFP |
| PoE Budget | 360W | 380W | 380W |
| Switching Capacity | 32 / 336 Gbps | 56 / 336 Gbps | 104 / 432 Gbps |
| Forwarding Rate | 24 Mpps | 42 Mpps | 78 Mpps |
| Form Factor | Compact | Standard 1U | High-density 1U |
| Ideal Use Case | Branch / Retail / CCTV | SMB Office / AP Access | Large PoE Deployment |
Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model | S5735-L12P4S-A | Compact enterprise Layer 3 PoE+ access switch |
| Downlink Ports | 12 x 10/100/1000BASE-T PoE+ | Power and data connectivity for endpoints |
| Uplink Ports | 4 GE SFP | Fiber uplink to aggregation or core switch |
| Switching Capacity | 32 Gbps / 336 Gbps | Device and system switching throughput |
| Forwarding Rate | 24 Mpps | Packet forwarding capability |
| MAC Address Table | 32K entries | Layer 2 device learning scale |
| VLAN Support | Up to 4094 VLANs (802.1Q) | Network segmentation and isolation |
| Routing Features | Static routing, RIP, OSPF | Layer 3 traffic forwarding |
| IPv6 Support | Supported | Future-ready network compatibility |
| QoS | 8 queues per port | Prioritization of voice/video/data traffic |
| Security Features | 802.1X, ACL, DHCP Snooping, ARP Inspection | Access control and protection |
| Management | Web / CLI / SNMP / SSH | Monitoring and configuration |
| Power Supply | Built-in AC power module | Integrated internal power design |
| PoE Power Budget | 360W | Total available power for PoE devices |
| Power Consumption | 49W (without PD) / 441W (full PoE load) | Device-only and total system power usage |
| Operating Temperature | -5°C to 50°C | Suitable deployment environment |
| Dimensions | 442 x 220 x 43.6 mm | Rackmount chassis size |
| Weight | 4.24 kg | Physical deployment reference |
| Warranty | Limited lifetime warranty | Manufacturer support coverage |
Why Choose Huawei S5735-L12P4S-A?
The Huawei S5735-L12P4S-A is designed for organizations needing a compact managed PoE switch with fiber uplinks and reliable enterprise features.
It is especially suitable for:
-
Retail stores needing cameras, WiFi, and POS connectivity
-
Small offices deploying VoIP and wireless APs
-
Hotel floor cabinets with limited space
-
School classrooms and branch campuses
-
Security surveillance projects
-
Clinics and healthcare branch networks
-
Smart office IoT edge deployments
With 12 PoE+ ports, 4 SFP uplinks, 360W power budget, Layer 3 management features, and corrected enterprise-grade specifications, it provides a practical and scalable networking solution for compact professional environments.
