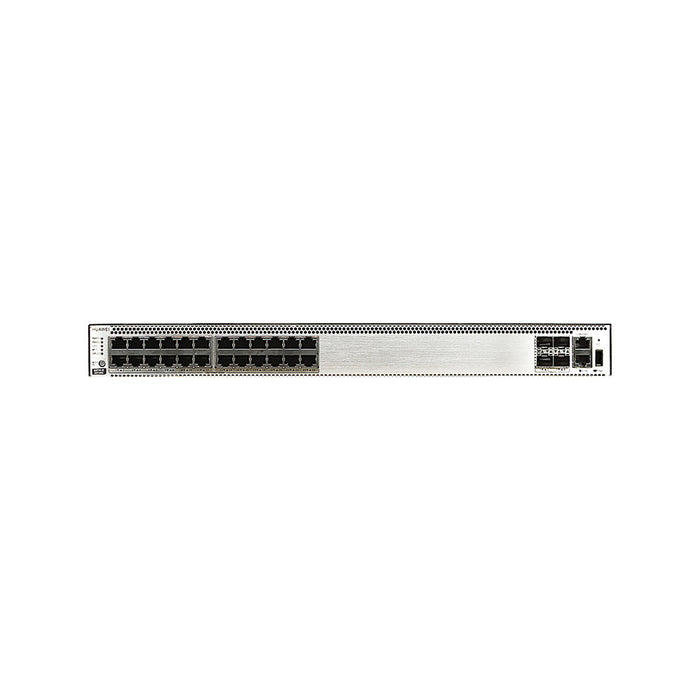

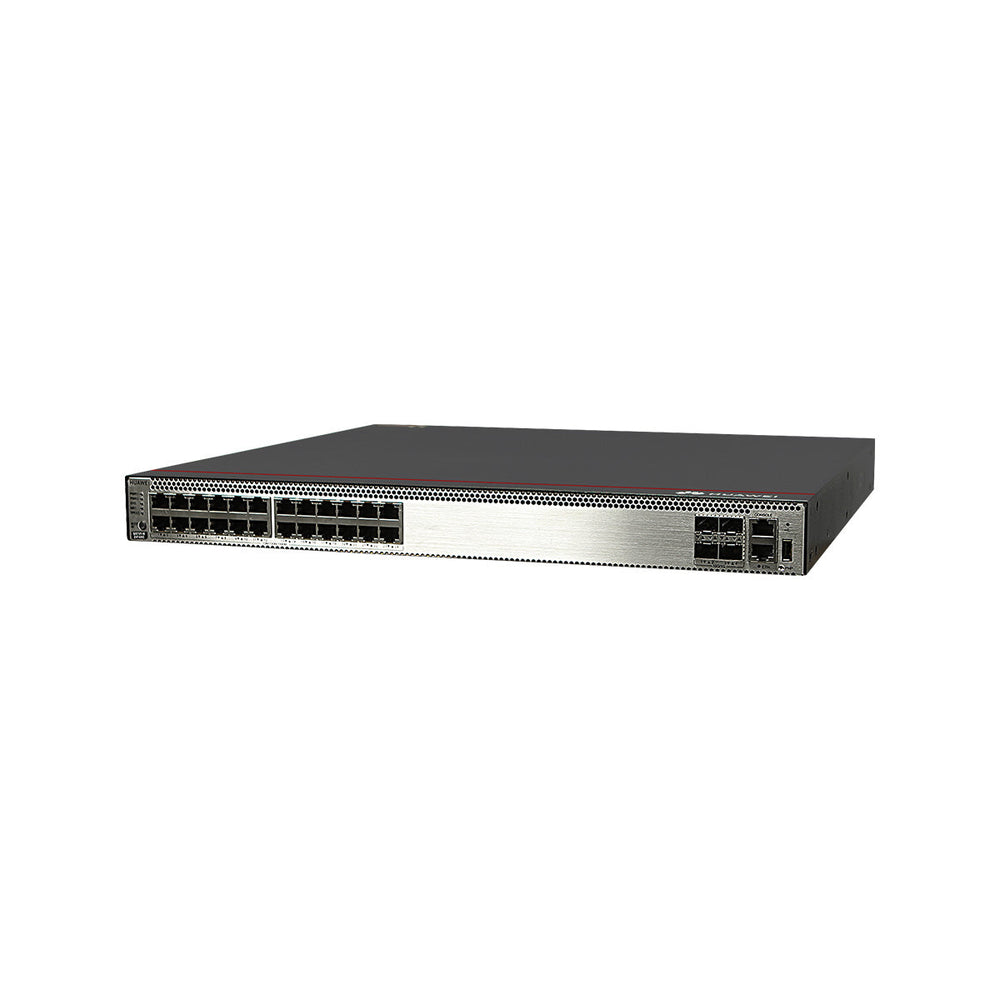

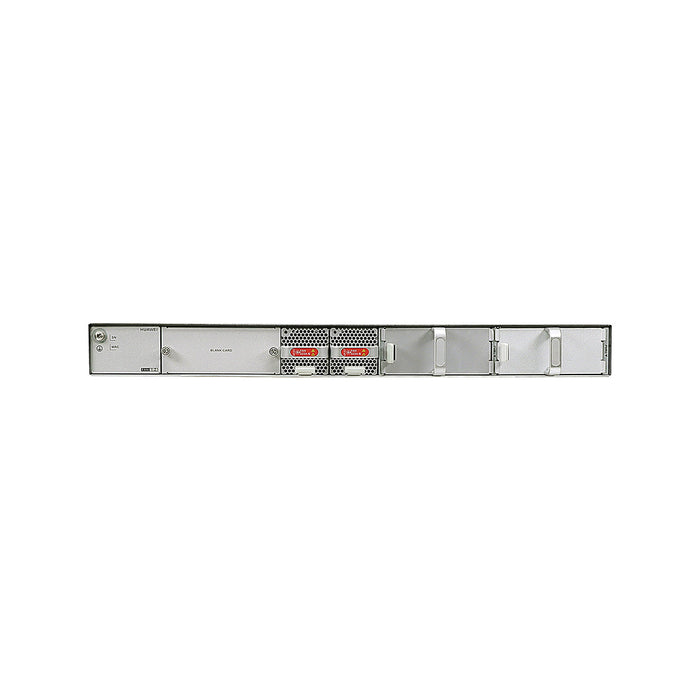

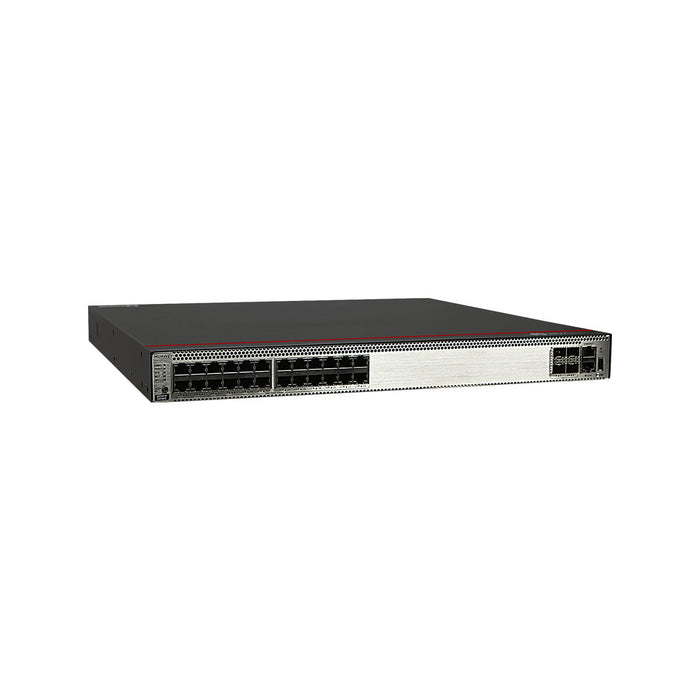

Huawei CloudEngine S5731-H24T4XC 24GE + 4 x 10G SFP+ Layer 3 Access Switch | Native AC | 40G Expansion Slot
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei CloudEngine S5731-H24T4XC 24GE + 4 x 10G SFP+ Layer 3 Access Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The Huawei CloudEngine S5731-H24T4XC is a high-performance H-series Layer 3 enterprise access and aggregation switch designed for modern campus networks, Wi-Fi 6/6E deployments, and distributed enterprise branches.
It delivers 24 x 10/100/1000BASE-T Ethernet ports and 4 x 10GE SFP+ uplinks, providing high-density wired access for office desktops, IP surveillance systems, VoIP terminals, and IoT devices such as smart sensors and access control systems.
Unlike standard S-series access switches, the H-series introduces native AC (Access Controller) capability, enabling unified management of up to 1,024 Wi-Fi access points, making it ideal for Wi-Fi 6 campus wireless convergence, smart hospitals, education campuses, and enterprise wireless office environments.
With 288 Gbps / 672 Gbps switching capacity and up to 125 Mpps forwarding performance, the device ensures stable traffic processing for high-bandwidth applications such as video surveillance backhaul, cloud-based office systems, ERP/CRM platforms, and real-time collaboration workloads.
Additionally, a modular uplink expansion slot (40GE/10GE options) allows flexible evolution from access layer to aggregation layer, supporting future-proof campus architecture design.
Highlights
1. High-Density Enterprise Access (24GE + 4 x 10GE)
24 Gigabit copper ports support office PCs, printers, IP phones, CCTV cameras, POS terminals, and IoT endpoints, while 10G uplinks eliminate aggregation bottlenecks.
2. Native AC for Wi-Fi 6 / Wi-Fi 6E Networks
Built-in AC function supports up to 1,024 wireless APs, ideal for:
-
Wi-Fi 6 campus deployment
-
Smart classrooms & digital education
-
Hospital wireless coverage
-
Enterprise full-wireless office environments
3. Modular Uplink for Future Growth
Supports expansion via uplink module:
-
10GE SFP+ uplinks (default)
-
Optional 40GE QSFP+ uplink expansion
Enables evolution from access switch aggregation node.
4. High Performance Switching Architecture
-
Switching capacity: 288 Gbps / 672 Gbps
-
Forwarding rate: 125 Mpps
Supports high-density east-west traffic in campus networks and multi-service convergence.
5. Advanced Layer 3 Routing
Supports enterprise routing scenarios including:
-
Static routing
-
RIP
-
OSPF
-
IS-IS
-
BGP (enterprise edge / aggregation use cases)
Ideal for campus core distribution, multi-building networking, and branch interconnection.
6. Enterprise Security & Zero-Trust Access
-
802.1X authentication
-
MAC filtering
-
DHCP snooping
-
ARP inspection
-
Port isolation
-
ACL-based traffic control
Suitable for secure office networks, government networks, and financial branch environments.
7. Intelligent Stacking (iStack)
Supports up to 9-unit logical stacking, enabling:
-
Unified management
-
High availability redundancy
-
Seamless campus expansion
8. Energy-Efficient Design
Adaptive fan control reduces power consumption and noise in office, classroom, and enterprise environments.
Recommended Accessories
| Category | Product Model | Description |
|---|---|---|
| SFP+ Transceiver | SFP-10G-SR | 10GBASE-SR SFP+, 850nm multimode fiber, up to 300m, ideal for intra-building connectivity |
| SFP+ Transceiver | SFP-10G-LR | 10GBASE-LR SFP+, 1310nm single-mode fiber, up to 10km, campus interconnect links |
| SFP+ Transceiver | SFP-10G-ER | 10GBASE-ER SFP+, 1550nm single-mode fiber, up to 40km, metro access scenarios |
| SFP+ Transceiver | SFP-10G-ZR | 10GBASE-ZR SFP+, 1550nm single-mode fiber, up to 80km, long-distance backbone connectivity |
| Power Module (AC) | PAC150S12-R | 150W AC power module for non-PoE deployment scenarios |
| Power Module (AC) | PAC600S12-CB | 600W AC power module for redundant power configurations |
| Power Module (DC) | PDC180S12-CR | 180W DC power module for industrial or telecom DC environments |
| Power Module (DC) | PDC1000S12-DB | 1000W DC high-capacity power module for enterprise redundancy setups |
| Cooling Module | FAN-023A-B | Pluggable dual-fan module providing N+1 cooling redundancy and thermal stability |
Comparison with Similar Items
| Feature | S5731-H24T4XC | S5731-S24T4X | S5731-H48T4XC |
|---|---|---|---|
| Downlink Ports | 24GE | 24GE | 48GE |
| Uplink Ports | 4 x 10GE + expansion slot | 4 x 10GE | 4 x 10GE |
| Switching Capacity | 288 / 672 Gbps | 672 Gbps | 672 Gbps |
| Forwarding Rate | 125 Mpps | 96 Mpps | 132 Mpps |
| MAC Table | 288K | 64K | 288K |
| AC Function | Native AC (1024 APs) | Not supported | Native AC |
| Ideal Use Case | Wi-Fi 6 campus + aggregation | Standard access layer | High-density campus access |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5731-H24T4XC |
| Downlink Ports | 24 x 10/100/1000BASE-T Ethernet |
| Uplink Ports | 4 x 10GE SFP+ |
| Expansion Slot | 1 modular slot (10GE / 40GE options) |
| Switching Capacity | 288 Gbps / 672 Gbps |
| Forwarding Rate | 125 Mpps |
| MAC Address Table | 288K entries |
| VLAN Support | Up to 4,096 VLANs (802.1Q) |
| Native AC | Up to 1,024 APs |
| QoS | 8 queues per port (SP/WRR/SP+WRR) |
| Security | 802.1X, ACL, DHCP Snooping, ARP Inspection |
| Management | Web UI, CLI, SNMP v1/v2/v3, SSH, RMON |
| Power Supply | Dual AC/DC modular power (non-PoE) |
| Power Consumption | Max ~114W |
| Operating Temperature | -5°C to +45°C |
| Weight | 8.4 kg (with packaging) |
| Dimensions | 442 x 420 x 43.6 mm |
| Warranty | Limited lifetime warranty |
