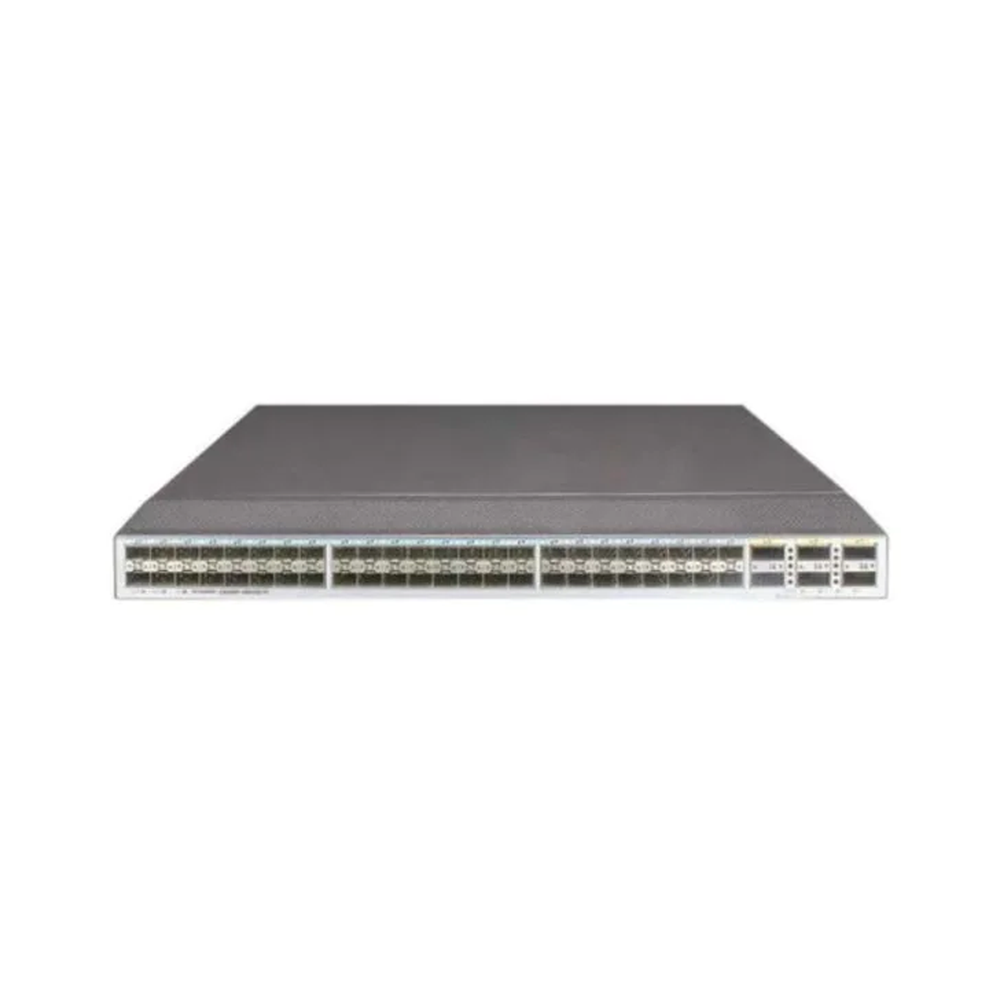

Huawei CloudEngine CE6885-48YS8CQ-B 48×25G +8×100G QSFP28 Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Huawei CE6885-48YS8CQ Data Center Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Huawei CloudEngine 6885‑48YS8CQ‑B is a high-density fixed 1RU data center switch designed for top-of-rack aggregation. It includes 48 × 10/25/50 GE SFP28 downlink ports, 8 × 100 GE QSFP28 uplinks (configurable to 40/100GE), 2 × 600 W AC redundant power modules, 5 hot‑swappable fan trays, and front-port intake airflow. With a switching capacity of 8 Tbps and 1,200 Mpps forwarding performance, it supports advanced features such as VXLAN/BGP‑EVPN, PFC, AI‑ECN, MACsec, and comprehensive telemetry under Huawei’s VRP8/YunShan platform.
Overview
Highlights
-
Ultra-high port density: 48 × 10/25/50 GE SFP28 + 8 × 100 GE QSFP28 uplinks (with 40/100GE breakout)
-
8 Tbps switching capacity, 1,200 Mpps forwarding performance.
-
Fabric-ready features: VXLAN/BGP‑EVPN, M‑LAG, PFC, ECN, AI‑ECN, MACsec, RoCE, VXLAN OAM, YScale congestion control.
-
Flexible airflow: Port-side intake by default, reversible for exhaust deployment.
-
High reliability: 2 × 600 W AC PSUs and 5 fan trays, all hot-swappable, with front-panel maintenance LEDs.
-
Smart O&M and Security: Integrated telemetry, ZTP, ERSPAN, ACL, DoS protection, AAA, MAC binding, DDoS detection.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 100 GE QSFP28 optics/DAC | Uplink Module | Supports 40/100GE uplinks |
| 10/25/50 GE SFP28 optics/DAC | Downlink Module | Adds flexible server connectivity |
| PAC600S12‑PF/‑PB 600 W AC PSU | Power Supply | Hot‑swappable, front/rear panel installation |
| FAN‑031A‑F/B Fan Tray | Cooling | Supports port-side intake or exhaust airflow, hot-swappable |
Comparison with Similar Models
| Feature / Model | 6885‑48YS8CQ‑B (intake) | 6885‑48YS8CQ (bare) | 6885‑48YS8CQ‑F (exhaust) |
|---|---|---|---|
| 10/25/50 GE Downlink Ports | 48 × SFP28 | 48 × SFP28 | 48 × SFP28 |
| 100GE Uplink Ports | 8 × QSFP28 | 8 × QSFP28 | 8 × QSFP28 |
| AC Power Modules | 2 × 600 W AC | — | 2 × 600 W AC |
| Fan Modules | 5 × hot-swappable, intake | — | 5 × hot-swappable, exhaust |
| Airflow Direction | Port intake (reversible) | Flexible | Port exhaust |
| Switching Capacity | 8 Tbps | 8 Tbps | 8 Tbps |
| Forwarding Rate | 1,200 Mpps | 1,200 Mpps | 1,200 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine 6885‑48YS8CQ‑B |
| Ports | 48 × 10/25/50 GE SFP28; 8 × 100 GE QSFP28 (40/100GE breakout) |
| Switching Capacity | 8 Tbps |
| Forwarding Performance | 1,200 Mpps |
| System Buffer | 32–42 MB |
| CPU | Quad-core 1.4 GHz |
| Memory & Storage | 8 GB DRAM, 64 MB NOR, 4 GB NAND |
| Fabric & Virtual Features | VXLAN/BGP‑EVPN, M‑LAG, MACsec, RoCE, VXLAN OAM |
| Congestion Control | PFC, ECN, AI‑ECN, YScale |
| O&M & Security Features | Telemetry, ZTP, ERSPAN, ACL, DoS/ARP protection |
| Power Supplies | 2 × 600 W AC hot‑swappable |
| Cooling Modules | 5 × hot‑swap fan trays |
| Typical / Max Power Consumption | 147–177 W typical (25G/50G configs), up to 326 W max |
| Dimensions (H×W×D) | 43.6 × 442 × 420 mm |
| Weight (full config) | 9.2 kg |
| Operating Temperature & Altitude | 0–40 °C (≤1,800 m, derated higher) |
| Noise Levels (27 °C) | 52.8 dBA avg; 58.7 dBA max |
| Certifications | UL/CE/FCC/IEC/EMC/RoHS |
