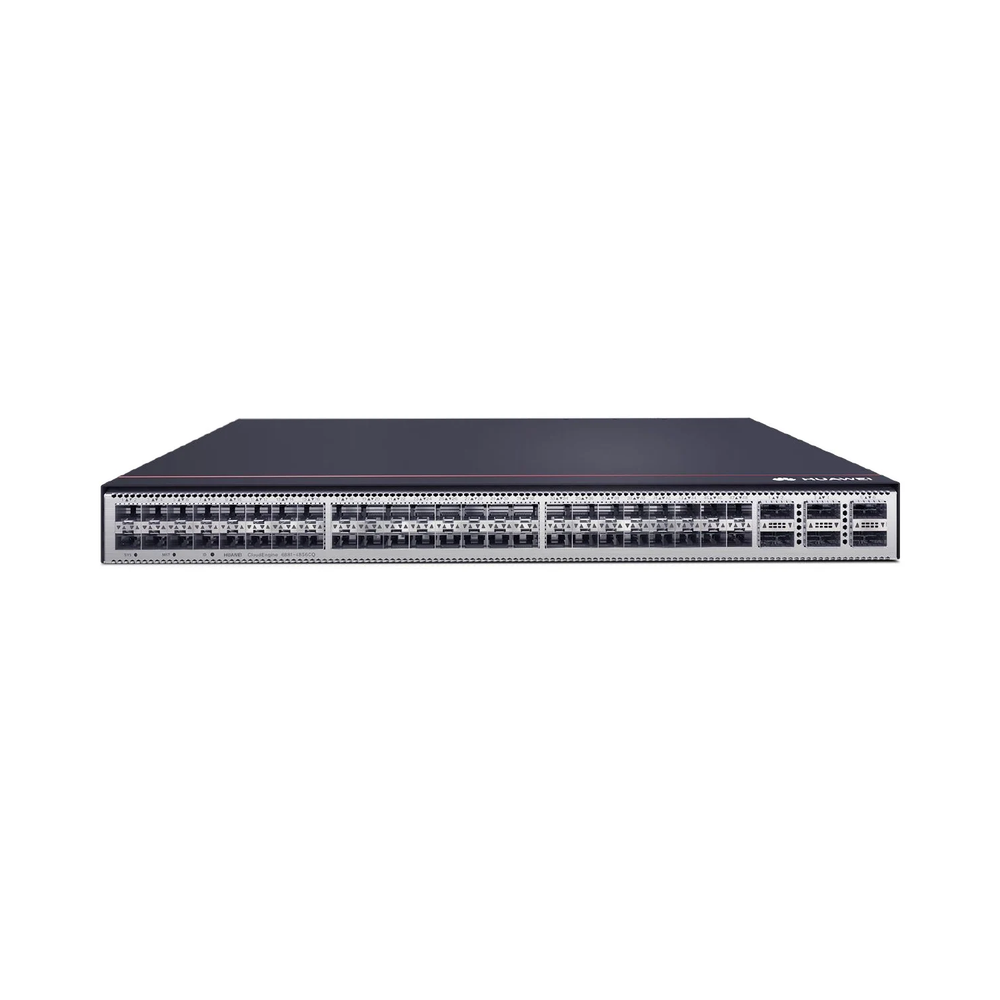

Huawei CloudEngine CE6881H-48S6CQ-B 48×25G +6×100G QSFP28 Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Huawei CE6881H-48S6CQ Data Center Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Huawei CloudEngine 6881H‑48S6CQ‑B is a fixed 1 RU data center switch delivering high-density server connectivity with 48 × 10 GE SFP+ access ports and 6 × 100 GE QSFP28 uplinks (configurable as 40/100 GE). It includes 2 × 600 W AC power modules and 4 hot-swappable fan trays, supporting front-to-back or reverse airflow. Powered by Huawei’s YunShan platform with VRP8, it delivers 2.16 Tbps switching capacity and 954 Mpps forwarding performance, while supporting advanced features like VXLAN/BGP‑EVPN, M‑LAG, PFC/ECN, RoCE v1/v2, Zero Touch Provisioning, and telemetry
Overview
Highlights
-
Ultra‑dense access: 48 × 10 GE SFP+ server ports + 6 × 100 GE QSFP28 uplinks (40/100 GE breakout).
-
High performance: 2.16 Tbps switching and 954 Mpps throughput.
-
Cutting-edge fabric features: VXLAN/BGP‑EVPN, M‑LAG, PFC, ECN, RoCE v1/v2, iStack, NSH, plus Zero Touch Provisioning and telemetry.
-
Flexible cooling: Supports front-to-back or back-to-front airflow based on deployment requirements.
-
High availability: Dual AC power supplies and hot-swappable fan modules, with maintenance-friendly front-facing access.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 100 GE QSFP28 optics / DAC | Uplink Module | Supports 40/100 GE uplink flexibility |
| 10 GE SFP+ optics / DAC | Access Module | Optional server connectivity ports |
| PAC600S12‑EF/EB 600 W AC PSU | Power Supply | Front/Rear installable, hot-swappable |
| FAN‑031A‑F/B Fan Tray | Cooling | Hot-swappable; supports front-to-back or reverse airflow |
Comparison with Similar Models
| Feature / Model | 6881H‑48S6CQ‑B (front intake) | 6881H‑48S6CQ (bare chassis) | 6881H‑48S6CQ‑F (rear intake) |
|---|---|---|---|
| 10 GE Ports | 48 × SFP+ | 48 × SFP+ | 48 × SFP+ |
| 100 GE Uplinks | 6 × QSFP28 | 6 × QSFP28 | 6 × QSFP28 |
| AC Power Modules | 2 × 600 W AC | — | 2 × 600 W AC |
| Fan Trays | 4 × front intake | — | 4 × rear intake |
| Airflow Direction | Front-to-back (reversible) | Flexible | Rear intake |
| Switching Capacity | 2.16 Tbps | — | — |
| Forwarding Rate | 954 Mpps | — | — |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine 6881H‑48S6CQ‑B |
| Ports | 48 × 10 GE SFP+; 6 × 100 GE QSFP28 (40/100 GE breakout) |
| Switching Capacity | 2.16 Tbps |
| Packet Forwarding Rate | 954 Mpps |
| System Buffer | 42 MB |
| CPU | Quad-core 1.4 GHz |
| Memory & Storage | 4 GB DRAM, 64 MB NOR, 4 GB NAND flash |
| Fabric & Virtual Features | VXLAN/BGP‑EVPN, M‑LAG, iStack, NSH, programmable APIs |
| Congestion & QoS | PFC, ECN, RoCE v1/v2, WRED |
| O&M & Analytics | Telemetry, ZTP, NetStream, ERSPAN+, sFlow |
| Power Supplies | 2 × 600 W AC hot-swappable (front intake) |
| Cooling | 4 × fan trays with front/rear airflow |
| Power Consumption (typ/max) | 194 W / 349 W |
| Heat Dissipation | 662–1,191 BTU/hr |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight (full config) | 7.8 kg |
| Operating Temp & Altitude | 0–40 °C (≤ 1,800 m, derated) |
| Noise Level (27 °C) | < 58 dBA front-to-back; < 57 dBA back-to-front |
| Certifications | UL, CE, FCC, RoHS, EMC Class A |
| Redundancy & Resilience | Hot-swappable PSUs & fans; clear status LEDs; M-LAG support |
| Stacking & Virtualization | Supports stacking, hardware gateway capabilities, programmable APIs |
