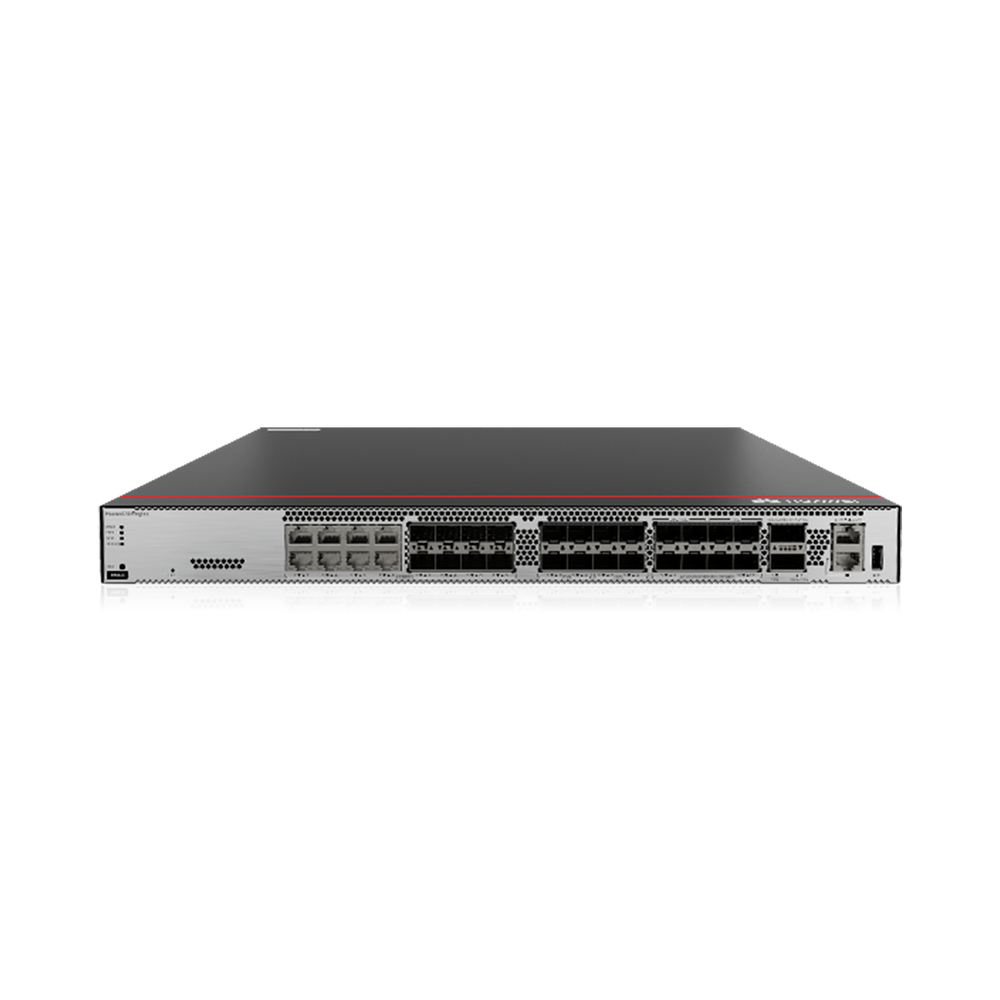

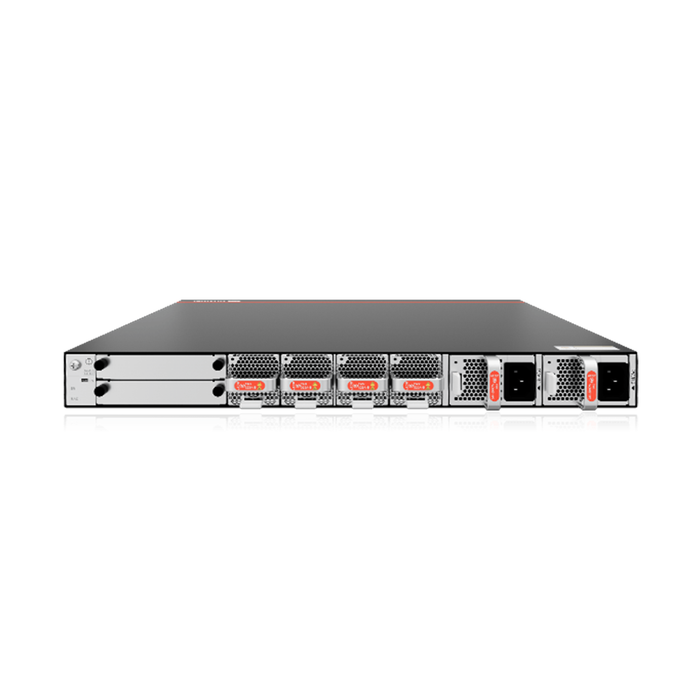

Huawei AirEngine 9703-H AC – 20 480 AP, 160 Gbps, 100 G/40 G/25 G/10 G Ports
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei AirEngine 9703-H Access Controller
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The AirEngine 9703‑H is Huawei’s flagship wireless access controller designed for large-scale networks—capable of managing up to 20,480 access points (APs) and delivering 160 Gbps high-performance forwarding. It supports various interface speeds (100G/40G/25G/10G + GE combo), centralized or distributed architectures (in-path, off-path, bridge, mesh), and ensures reliability via 1+1 hot standby, LACP/MSTP port redundancy, and built-in visualized management.
Overview
Highlights
-
Scalable & High Performance
Manage up to 20,480 APs and support 160 Gbps forwarding throughput. -
Versatile High-Speed Interfaces
Offers flexible combinations: 100G/40G/25G/10G optical ports and GE combo slots. -
SmartRadio Optimization
Features load-balancing roaming, EDCA scheduling, airtime fairness, and dynamic frequency assignment to improve wireless stability. -
Flexible Networking Modes
Supports in-path, off-path, bridge, mesh, Layer 2/3 forwarding, NAT traversal, centralized and local forwarding. -
Built-In Reliability & Security
Supports 1+1 hot standby, port backup (LACP/MSTP), ACLs, DHCP snooping, ARP protection, and multi-layer security defenses. -
Comprehensive Management & Troubleshooting
Offers a visual KPI dashboard, AP group-based profile configuration, one-click diagnosis, and in-system application identification policies.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| 02355URC | AirEngine 9703-H Host | Main unit with 8 × GE Combo ports, 16 × 10GE SFP+ ports, 2 × 40GE QSFP+ ports |
| 88035WEY | AP Resource License | License for managing 1 AP |
| 88039BNG | AP Management License | License upgrade from 6K to 10K APs |
| 88039BNH | AP Management License | License upgrade from 10K to 20K APs |
Comparison with Similar Models
| Feature | AirEngine 9703-H | AirEngine 9700-M1 | AirEngine 9700D-M1 |
|---|---|---|---|
| Max Managed APs | 20,480 | 4,096 | 2,048 |
| Max Concurrent Users | 307,200 | 65,536 | 32,768 |
| Forwarding Performance | 160 Gbps | 80 Gbps | 40 Gbps |
| Interface Options | 100G/40G/25G/10G + GE Combo | 40G/10G + GE Combo | 10G + GE |
| Deployment Scenarios | Large-scale enterprise, campuses | Medium to large enterprises | Medium enterprises, SMBs |
| High Availability | 1+1 Hot standby, LACP, MSTP | 1+1 Hot standby, VRRP | VRRP, basic redundancy |
| Ideal Use Cases | Large campuses, large venues | Large offices, medium campuses | Medium enterprises, SMB offices |
Specifications
| Category | Specification |
|---|---|
| Model | AirEngine 9703-H |
| Product Type | Wireless Access Controller |
| Form Factor | 1U Rack-Mountable |
| Fixed Interfaces | 1 × 100G optical, 2 × 40G optical, 4 × 25G optical, 8 × 10G optical, 8 × GE Combo |
| Management Ports | 1 × RJ45 Console, 1 × RJ45 Ethernet Management |
| Power Supply | 1+1 AC/DC Redundant |
| Forwarding Capacity | 160 Gbps |
| Max Managed APs | 20,480 |
| Max Concurrent Users | 307,200 |
| Networking Modes | In-path, off-path, bridge, mesh, Layer 2/3 forwarding, NAT traversal |
| Reliability Features | 1+1 Hot Standby, LACP, MSTP, ACLs, DHCP snooping, ARP protection |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Weight | 7.6 kg |
| Operating Temperature | 0°C to 45°C (derates above 1,800 m altitude) |
| Protocols Supported | 802.11a/b/g/n/ac/ax/be, IPv4/v6, VLAN, MSTP, OSPF, BGP, DHCP, IGMP, PIM, GRE, IPSec |
