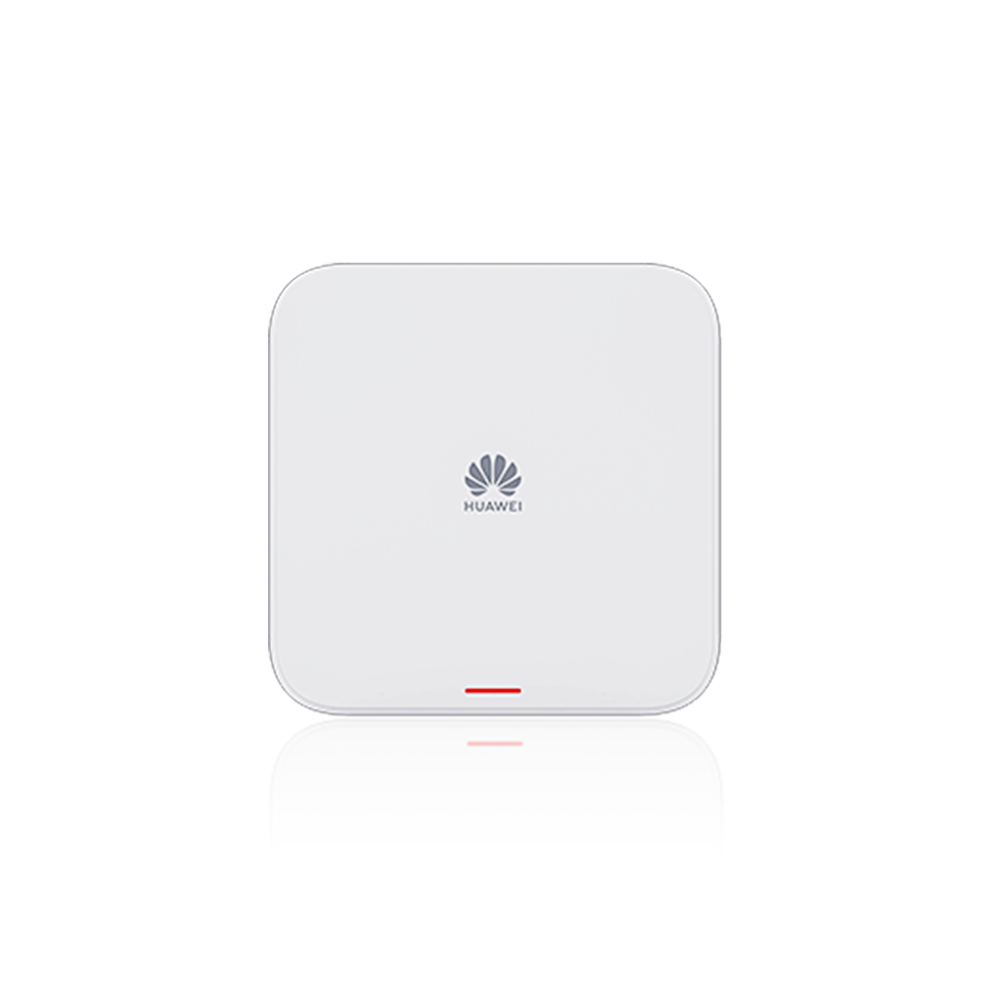

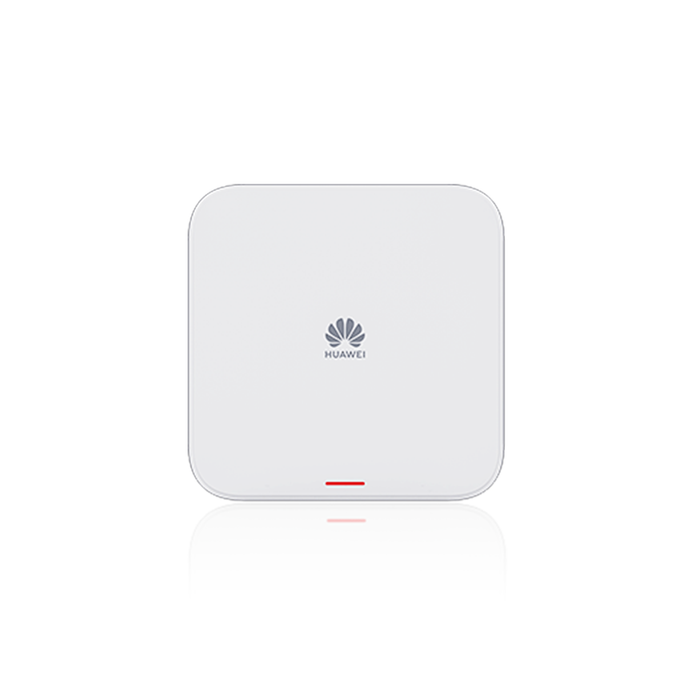

Huawei AirEngine 8761-X1 Wi-Fi 6 AP, 12 Streams, 5.95 Gbps, 10GE
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei AirEngine 8761-X1 Indoor Wi-Fi 6 AP – 12 Stream Smart Antennas & 5.95 Gbps Throughput
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The AirEngine 8761‑X1 is a high-performance Wi‑Fi 6 (802.11ax) indoor access point engineered for enterprise-grade use. It features built-in dual‑band smart antennas, supports up to 12 spatial streams (4×4 on 2.4 GHz + 8×8 on 5 GHz), and delivers a total aggregate rate of 5.95 Gbps. With a 10 GE uplink and USB/BLE ports for extensibility and O&M, it’s ideal for high-density deployments. Power supply (PoE or DC) must be purchased separately.
Overview
Highlights
-
12-Stream Dual-Band Smart Antenna
-
2.4 GHz: 4×4:4 MIMO, up to 1.15 Gbps
-
5 GHz: 8×8:8 MIMO, up to 4.8 Gbps
-
-
High Uplink Bandwidth
Includes 1×10 GE RJ45 and 1×1 GE RJ45 (auto-sensing to 2.5/5 GE), eliminating uplink bottlenecks. -
Smart Antenna Boost
Built-in co‑planar smart antennas detect environment and density, doubling signal strength and extending coverage by ~20%. -
IoT & O&M Support
Features USB port for IoT (ZigBee/RFID), BLE 5.2 for commissioning, and Fit/Fat/Cloud modes via Huawei’s CloudCampus.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PoE Power Injector | Power Supply | IEEE 802.3at injector/switch (not included) |
| DC Power Adapter | Power Supply | Accepts 43.2–57.6 V DC input (sold separately) |
| Mounting Kits | Installation | Ceiling, wall, and T-rail fixtures included |
Comparison with Similar Models
| Feature | AirEngine 8761‑X1 | AirEngine 8760‑X1‑PRO | Cisco Catalyst 9136AXE |
|---|---|---|---|
| Spatial Streams | 12 (4+8) | 16 (4+12) | 8 (2+6) |
| Max Device Rate | 5.95 Gbps | ~10 Gbps | ~6 Gbps |
| Antenna Type | Dual-band smart | Dual-band smart | Internal standard |
| Uplink Ports | 1×10GE, 1×1GE | 2×10GE | 1×10GE + 1×2.5GE |
| BLE & USB Support | Yes | Yes | Limited or none |
| Ideal Deployment | Enterprise indoor | High-density enterprise | General enterprise indoor |
Specifications
| Parameter | Specification |
|---|---|
| Model | AirEngine 8761‑X1 |
| Wi‑Fi Standard | IEEE 802.11ax (Wi‑Fi 6) |
| Antennas | Built-in dual-band smart antennas |
| Spatial Streams | 2.4 GHz: 4×4 = 4; 5 GHz: 8×8 = 8 (total 12) |
| Max Device Throughput | 5.95 Gbps (1.15 + 4.8) |
| Smart Antenna | Dual-band co‑planar, ~20% coverage boost |
| Uplink Ports | 1×10GE RJ45, 1×GE RJ45 (auto-sensing to 2.5/5/10 GE) |
| Bluetooth | BLE 5.2 for O&M |
| USB Port | USB 2.0 for IoT (ZigBee, RFID) |
| Working Modes | Fit, Fat, Cloud |
| Power Input | IEEE 802.3at PoE or 43.2–57.6 V DC (sel. purch.) |
| Max Power Consumption | 23.5 W (excluding USB) |
| Operating Temp. | –10°C to +50°C |
| Dimensions (H×W×D) | 57 × 220 × 220 mm |
| Weight | 1.8 kg |
| Max Users | ≤ 1,024 |
| Certifications | CE, RoHS, FCC, Wi‑Fi Alliance, IEEE 802.11ax |
| Ideal Usage | HD streaming, video conferencing, enterprise WLAN |
