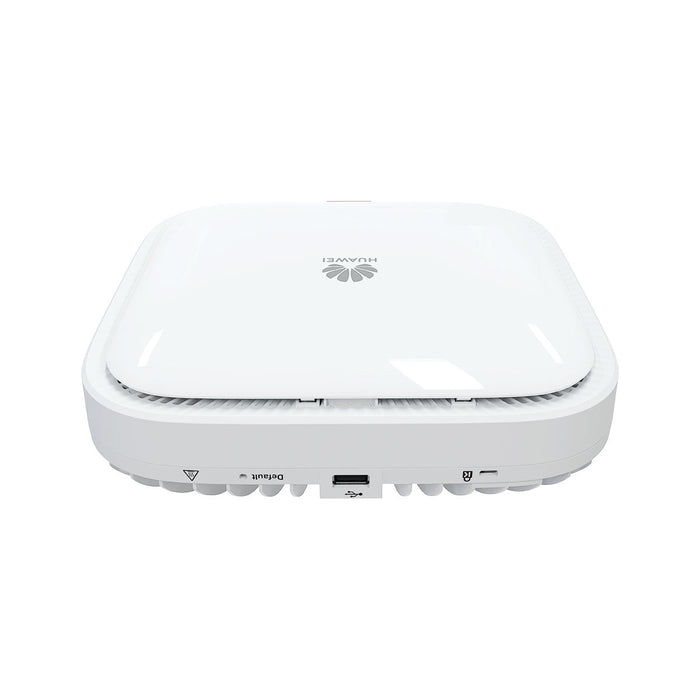

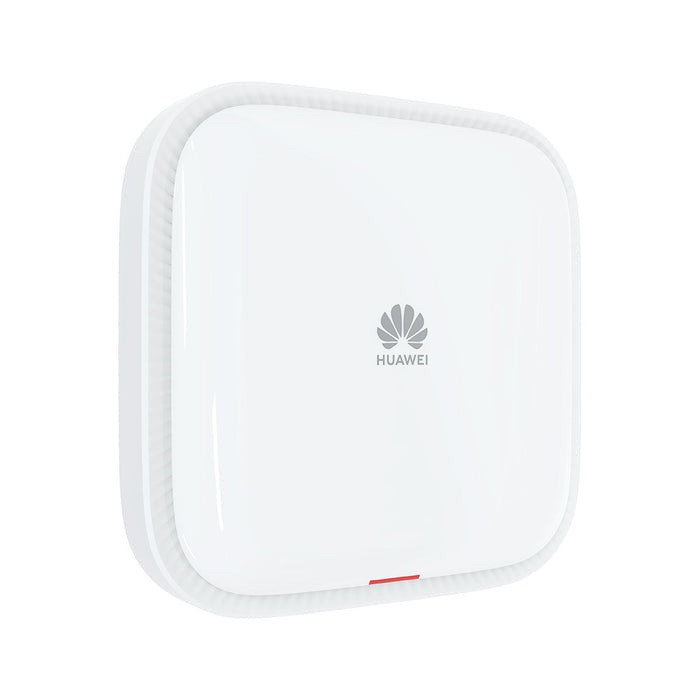

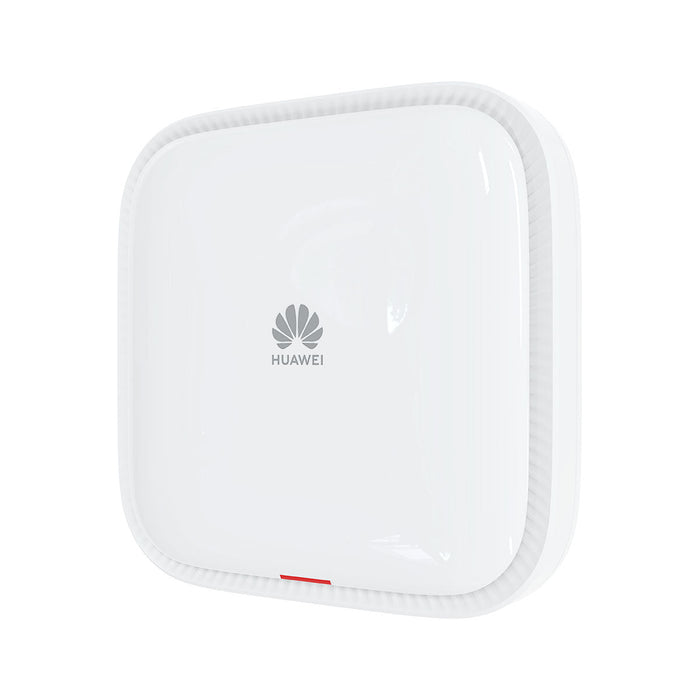

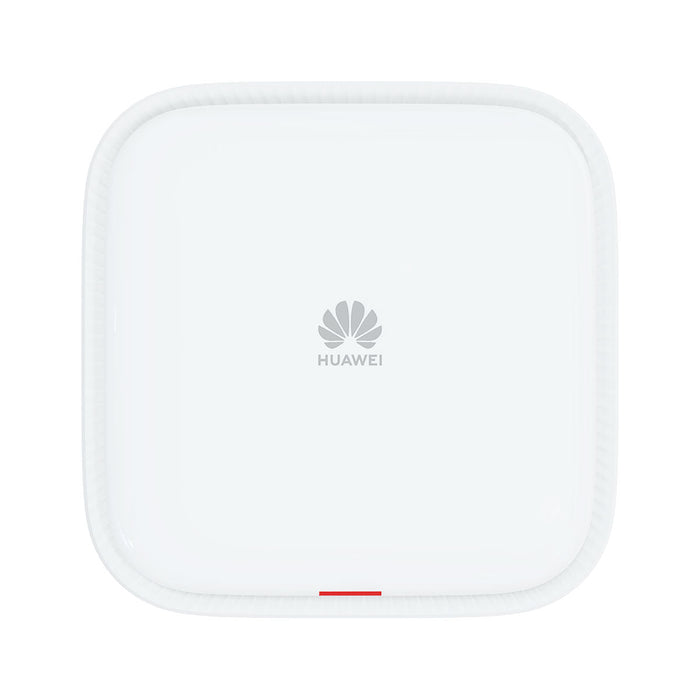

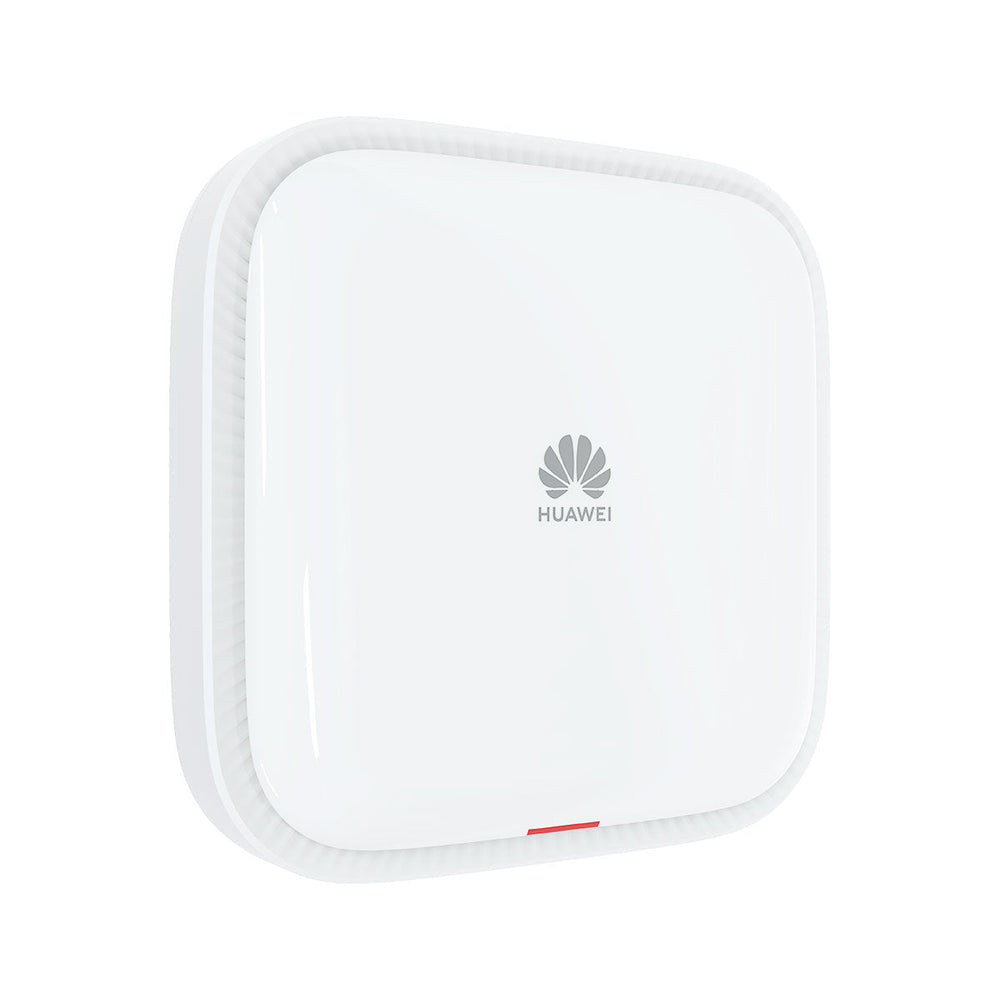

Huawei AirEngine 8760-X1-PRO Wi-Fi 6 AP, 10.75 Gbps, 16T16R Smart Antennas
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei AirEngine 8760-X1-PRO Indoor Wi-Fi 6 AP — 16T16R Smart Antennas & 10.75 Gbps Device Rate
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The AirEngine 8760-X1-PRO is Huawei’s flagship indoor Wi-Fi 6 (802.11ax) access point, featuring 16T16R built-in co-planar Smart Antennas that “follow” users to suppress interference, double signal strength, and extend coverage by ~20 percent.
It flexibly switches among dual-radio, triple-radio, and dual-radio + independent scanning modes, achieving up to 10.75 Gbps aggregate device throughput. Uplink connectivity includes 2×10 GE electrical and 1×10 GE SFP+ ports (all PoE-powered per IEEE 802.3bt), plus built-in BLE 5.2 and IoT card slots for seamless O&M and IoT expansion.
Ideal for high-density scenarios—enterprise offices, campuses, and education—with support for up to 1 152 users in triple-radio mode.
Overview
Highlights
-
Tri-Radio 4x4/8x8 MIMO: Supports flexible switching among three modes: dual-radio (2.4 GHz 4x4 + 5 GHz 12x12), triple-radio (2.4 GHz 4x4 + 5 GHz 8x8 + 5 GHz 4x4), and dual-radio with independent scanning radio, achieving a combined peak data rate of up to 10.75 Gbps.
-
Smart Antenna Technology: Features 16 built-in dual-band smart antennas that dynamically adjust signal coverage, enhancing signal quality and reducing interference.
-

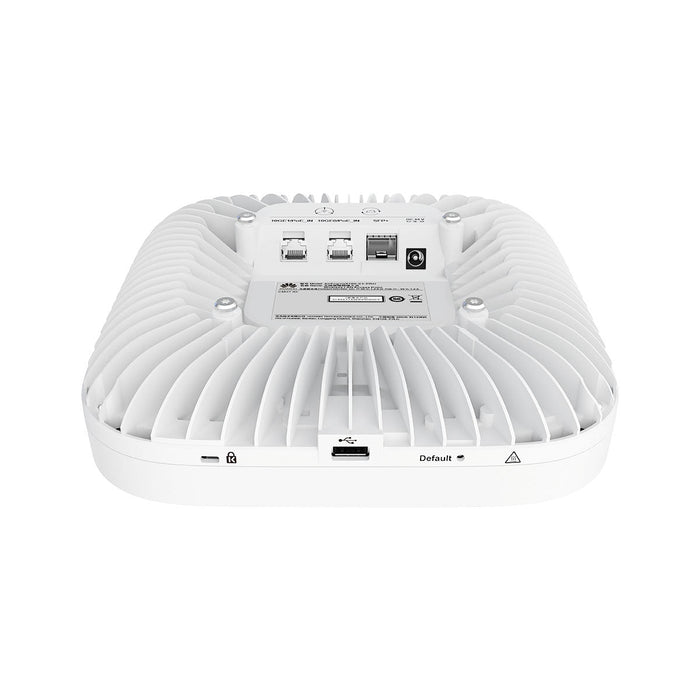

High-Speed Connectivity: Equipped with 2 × 10 GE electrical ports and 1 × 10 GE SFP+ port, facilitating flexible network deployment.
-

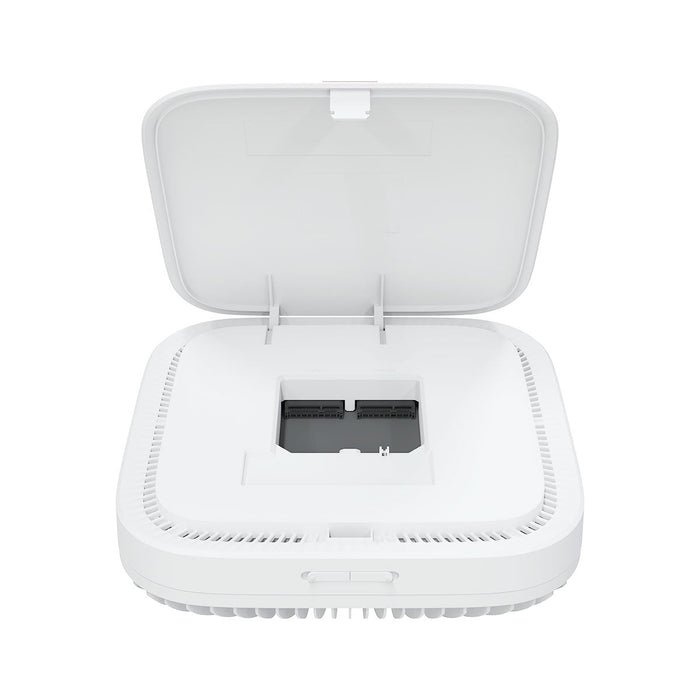

IoT Expansion: Provides built-in IoT slots supporting application expansion for BLE 5.2, ZigBee, RFID, and Thread, enabling flexible IoT application extensions.
-
Independent Radio Scanning: Includes a dedicated scanning radio for real-time detection of interference and rogue devices, ensuring optimal network performance.
-
Built-in Bluetooth 5.2: Supports Bluetooth serial interface-based O&M through the CloudCampus APP and precise locating of Bluetooth terminals by collaborating with eSight.
-
High User Capacity: Supports up to 1024 concurrent users in dual-radio mode and up to 1152 users in triple-radio mode, making it ideal for high-density environments.
-
Advanced Security: Offers robust security features including WPA3 encryption, 802.1X authentication, and rogue device monitoring, ensuring network integrity.
-
Intelligent Management: Compatible with Huawei’s CloudCampus platform and supports multiple management modes (Cloud / Fit / Fat) for simplified operations and maintenance.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| IEEE 802.3bt PoE++ Injector | Power | Supplies up to 90 W per port for long-reach PoE++ deployments |
| 10 GE SFP+ Transceiver (SR) | Uplink Module | 10GBASE-SR, 850 nm, LC duplex, up to 300 m (OM3) |
| ZigBee/RFID USB Module | IoT Expansion | USB 2.0 adapter for external IoT protocols (ZigBee, RFID) |
| Ceiling/Wall Mount Kit | Installation | Corrosion-resistant brackets for versatile indoor mounting |
Comparison with Similar Models
| Model | Spatial Streams & Bands | Peak Rate | Uplinks |
|---|---|---|---|
| AirEngine 8760-X1-PRO | 4×4@2.4 GHz + 12×12@5 GHz (16T16R) | 10.75 Gbps | 2×10 GE electrical; 1×10 GE SFP+ |
| AirEngine 8761-X1 | 4×4@2.4 GHz + 8×8@5 GHz (12T12R) | 5.95 Gbps | 1×10 GE RJ45; 1×GE RJ45 |
| AirEngine 8760R-X1 | 4×4@2.4 GHz + 12×12@5 GHz (16T16R) | 10.75 Gbps | 1×10 GE SFP+; 1×10 GE electrical; 1×1 GE RJ45 |
Specification
| Parameter | Specification |
|---|---|
| Model | AirEngine 8760-X1-PRO |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax |
| Radio Configuration | Tri-radio: 2.4 GHz (4x4 MIMO), 5 GHz (8x8 MIMO), 5 GHz (4x4 MIMO) |
| Peak Data Rate | Up to 10.75 Gbps |
| Ethernet Ports | 2 × 10 GE electrical, 1 × 10 GE SFP+ |
| Antenna Type | Built-in dual-band smart antennas |
| Power Supply | PoE: IEEE 802.3bt compliant; DC: 48 V ±10% |
| Maximum Power Consumption | 35.3 W |
| Security | WPA3, WPA2, WPA, 802.1X, rogue device monitoring |
| Management | Cloud, Fit, and Fat modes; compatible with CloudCampus |
| Operating Temperature | –10°C to +50°C |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (H × W × D) | 61 mm × 220 mm × 220 mm |
| Weight | 3 kg |
| Warranty | Limited lifetime warranty |
