- Huawei AirEngine 6776I-X7TH: Outdoor Wi-Fi 7 AP, 13.66 Gbps & Built-in Omnidirectional Antennas
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Huawei AirEngine 6776I-X7TH is an outdoor Wi-Fi 7 (802.11be) access point that delivers tri-band service—2×2 MIMO on 2.4 GHz, 2×2 MIMO on 5 GHz, and 4×4 MIMO on 6 GHz—for a peak data rate of 13.66 Gbps.
Designed for high-density outdoor environments, it features built-in omnidirectional antennas to optimize coverage and suppress interference, while dual 10 GE uplink ports (optical and electrical) and integrated surge protection enable reliable deployments in stadiums, amusement parks, and industrial sites.
With IP68 waterproof and dustproof rating, it ensures durability in harsh conditions.
Overview
Highlights
-
Tri‑Band Wi‑Fi 7 with 8 Spatial Streams
– 2.4 GHz: 2×2 MIMO
– 5 GHz: 2×2 MIMO
– 6 GHz: 4×4 MIMO -
Ultra-High Throughput
Achieves 13.66 Gbps aggregate rate across all bands. -
All-Directional Antennas & Robust Outdoor Design
Built-in omnidirectional antennas provide uniform coverage; designed to withstand -40 °C to +70 °C, IP68 rating, and 6 kA/6 kV surge protection. -
High-Bandwidth Dual Uplinks
Includes 10 GE optical (PoE-In capable hybrid cable) + 10 GE electrical (PoE-In) + GE electrical backup
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| IEEE 802.3bt/at PoE Injector/Switch | Power | Essential for powering uplinks via PoE-In (sold separately) |
| DC Power Adapter | Power | Supports 18–60 V DC input for power redundancy |
| Outdoor Mounting Kits | Installation | Wall/ceiling/mast brackets and protective enclosures |
| External Antennas | RF Accessory | Optional directional antennas for focused coverage |
Comparison with Similar Models
| Feature | AirEngine 6776I‑X7TH | 6776I‑X6TH (dir-antenna) | 6776I‑X6ETH (external antenna) |
|---|---|---|---|
| Bands & Streams | 2.4/5 GHz 2×2 + 6 GHz 4×4 (8) | Same | Same |

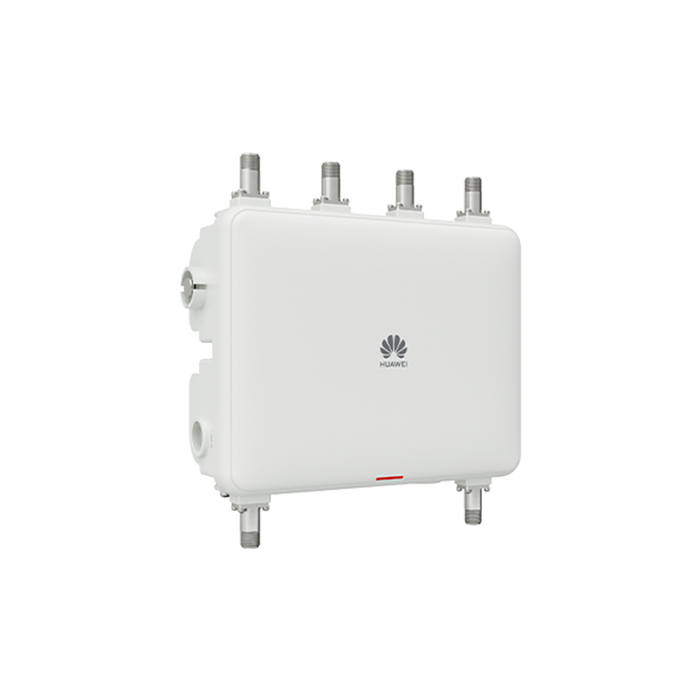

| Antenna Type | Built-in omnidirectional | Built-in directional | External RF connectors |
| Max Throughput | 13.66 Gbps | 13.66 Gbps | 13.66 Gbps |
| Environmental Rating | IP68, –40 °C to +70 °C | Same | Same |
| Uplink Ports | 10GE optical + 10GE electrical + GE | Same | Same |
Specifications
| Parameter | Specification |
|---|---|
| Model | AirEngine 6776I‑X7TH Outdoor AP |
| Wi‑Fi Standard | IEEE 802.11be (Wi‑Fi 7) |
| Spatial Streams (MIMO) | 2.4 GHz 2×2, 5 GHz 2×2, 6 GHz 4×4 — total 8 streams |
| Peak Data Rate | 13.66 Gbps across radios |
| Radios | Triple radio for 2.4/5/6 GHz with multi-RU, MLO support |
| Antenna | Integrated 360° omnidirectional antennas |
| Uplink Ports | 1×10 GE Optical (hybrid cable PoE-in) + 1×10 GE Electrical (PoE-in) + 1×GE Electrical (backup) |
| Power Input | Dual PoE-In compliance with IEEE 802.3bt/at or DC 18–60 V |
| Surge Protection | 6 kA/6 kV on Ethernet & antenna ports |
| Environment Rating | IP68 sealed, -40 °C to +70 °C operating range |
| Antenna Gain | 2.4 GHz 5 dBi; 5 GHz 5 dBi; 6 GHz 5 dBi (omni) |
| Max Users | 1,800 (600 per radio) |
| Dimensions (H×W×D) | 100 × 280 × 220 mm |
| Weight (device) | ~5.6 kg |
| Bluetooth | BLE (O&M support) |
| Deployment Modes | Fit, Fat, or Cloud mobile network modes |
| Certifications | IEEE 802.11a/b/g/n/ac/ax/be, Wi‑Fi Alliance, CE, FCC, etc. |
