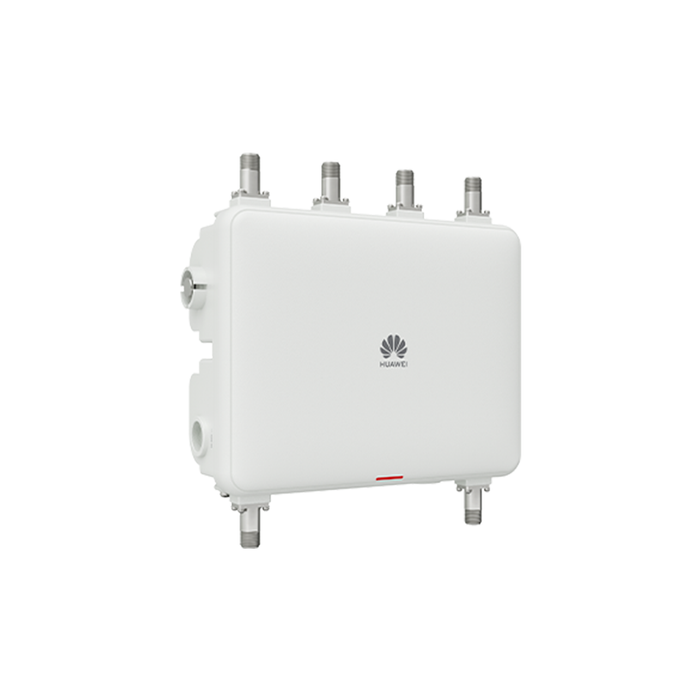

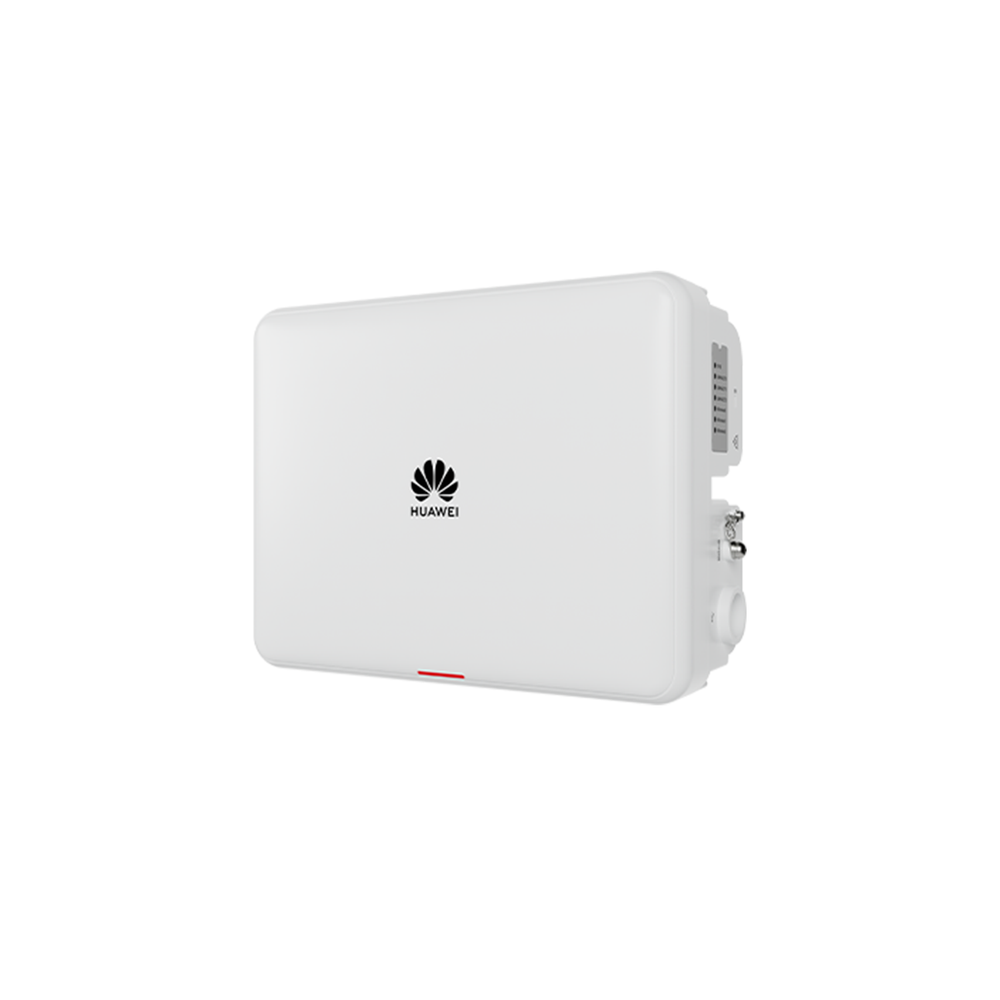

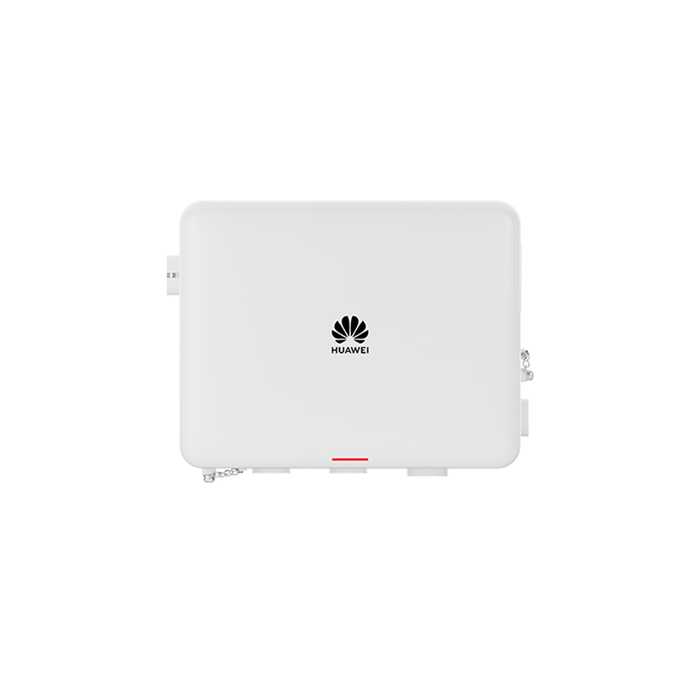

Huawei AirEngine 6776I-X6TH Outdoor Wi-Fi7 Triple-Radio 4×4:4 AP
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei AirEngine 6776I-X6TH: Outdoor Wi-Fi 7 AP up to 13.66 Gbps & Directional Antennas
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Huawei AirEngine 6776I-X6TH is an outdoor Wi-Fi 7 (802.11be) access point that delivers tri-band service—2×2 MIMO on 2.4 GHz, 2×2 MIMO on 5 GHz, and 4×4 MIMO on 6 GHz—for a peak data rate of 13.66 Gbps.
Designed for high-density outdoor environments, it features built-in directional antennas to optimize coverage and suppress interference, while dual 10 GE uplink ports (optical and electrical) and integrated surge protection enable reliable deployments in stadiums, amusement parks, and industrial sites.
With IP68 waterproof and dustproof rating, it ensures durability in harsh conditions.
Overview
Highlights
-
Tri-Band 8-Stream Configuration
– 2.4 GHz: 2×2 MIMO
– 5 GHz: 2×2 MIMO
– 6 GHz: 4×4 MIMO -
Ultra-High Throughput
Achieves 13.66 Gbps aggregate device rate across tri-band connections. -
Dual 10 GE Uplink Ports
Includes 1×10 GE optical (with hybrid cable PoE-In) + 1×10 GE electrical (PoE-In) + 1×GE electrical backup. -
Industrial-Grade Robustness
Equipped with IP68 waterproofing, wide operating -40 °C to +70 °C range, and 6 kA/6 kV surge resistance.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 802.3bt/at PoE Injector/Switch | Power | Required to power uplinks (sold separately) |
| DC Power Adapter | Power | Supports 18–60 V DC, enabling power redundancy |
| Outdoor Mounting Kit | Installation | Includes mounting brackets and protective enclosures |
| External Antennas | RF Accessory | Optional external directional or omnidirectional antennas |
Comparison with Similar Models
| Feature | AirEngine 6776I‑X6TH | AirEngine 6776I‑X6ETH | AirEngine 6776I‑X7TH |
|---|---|---|---|
| Bands & Streams | 2×2 + 2×2 + 4×4 = 8 | 2×2 + 2×2 + 4×4 = 8 | 2×2 + 2×2 + 4×4 = 8 |
| Max Throughput | 13.66 Gbps | 13.66 Gbps | 13.66 Gbps |
| Antenna Type | Built-in directional | External antennas | Built-in omni |
| Ethernet Ports | 10GE optical + 10GE electrical + GE electrical | Same | Same |
| Protection Level | IP68 & 6 kA surge | IP68 & 6 kA surge | IP68 & 6 kA surge |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei AirEngine 6776I‑X6TH |
| Wi‑Fi Standard | IEEE 802.11be (Wi‑Fi 7) |
| Spatial Streams | 2×2 at 2.4 GHz; 2×2 at 5 GHz; 4×4 at 6 GHz (8 streams) |
| Max Throughput | 13.66 Gbps |
| Uplink Ports | 1×10GE optical (hybrid PoE-In); 1×10GE electrical PoE-In; 1×GE electrical PoE-In |
| Power Input | Dual PoE-In (802.3bt/at) or DC 18–60 V |
| Protection Rating | IP68 waterproof; 6 kA/6 kV surge protection |
| Operating Temperature | –40 °C to +70 °C |
| Antenna Gain | 2.4 GHz: 10 dBi; 5 GHz: 11 dBi; 6 GHz: 12 dBi directional |
| Bluetooth | BLE for O&M |
| Dimensions | 85 × 280 × 220 mm |
| Certifications | CE, IEEE 802.11be/ac/ax, environmental standards |
