- Huawei AirEngine 6760-X1: Indoor Wi-Fi 6 AP with up to 10.75 Gbps & Smart Antennas
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Huawei AirEngine 6760-X1 is an indoor Wi-Fi 6 (802.11ax) access point that delivers simultaneous dual-band service—4×4 MIMO on 2.4 GHz and 6×6 MIMO on 5 GHz—for up to 8.35 Gbps out of the box and 10.75 Gbps with an RTU license.
Built-in co-planar Smart Antennas follow users to suppress interference and extend coverage by 20%, while dual 10 GE uplink ports (optical and electrical) and integrated IoT/Bluetooth support enable flexible, high-density deployments in offices, campuses, and large venues.
Overview
Highlights
-
Dual-Radio 4x4 MIMO: Simultaneously operates on 2.4 GHz and 5 GHz bands with 4x4 MIMO, providing robust and reliable wireless coverage.
-
Smart Antenna Technology: Incorporates built-in smart antennas that dynamically adjust signal direction, enhancing coverage and reducing interference.
-
High-Speed Connectivity: Achieves a combined peak data rate of up to 8.35 Gbps under default configuration, with potential to reach 10.75 Gbps through RTU license upgrades.
-
Flexible Radio Modes: Supports software-defined radio (SDR) technology, allowing flexible switching between dual-radio, triple-radio, and dual-radio plus scanning radio modes to adapt to various deployment scenarios.
-

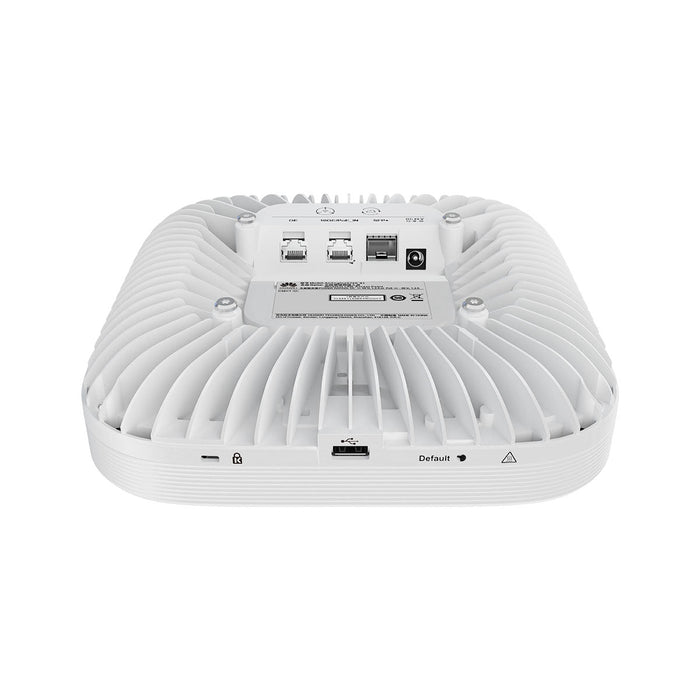

Versatile Uplink Options: Equipped with multiple uplink ports, including 1 × 10 GE electrical, 1 × GE electrical, and 1 × 10 GE SFP+, facilitating flexible network deployment.
-
High User Capacity: Supports up to 1024 concurrent users in dual-radio mode and up to 1152 users in triple-radio mode, making it ideal for high-density environments.
-
Advanced Security: Offers robust security features including WPA3 encryption, 802.1X authentication, and rogue device monitoring, ensuring network integrity.
-
Intelligent Management: Compatible with Huawei’s CloudCampus platform and supports multiple management modes (Cloud / Fit / Fat) for simplified operations and maintenance .
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| L-AP6760-X1-1AP | 1-AP License | License to manage one AP |
| L-AP6760-X1-10AP | 10-AP License | License to manage up to ten APs |
| AP-Mount-Kit | Ceiling/Pole-Mount Kit | Mounting hardware for indoor installations |
| SFP-GE-LX10-SM1310 | Optical Transceiver | 1000Base-LX SFP, LC-connector, 10 km over SMF |
Comparison with Similar Models
| Model | Peak Rate | Antennas | Uplink Ports |
|---|---|---|---|
| AirEngine 6760-X1 | 8.35 Gbps (10.75 Gbps RTU) | Built-in Smart | 1×10 GE SFP+; 1×10 GE RJ45 |
| AirEngine 6760R-51E | 5.95 Gbps | External ports | 1×10 GE SFP+; 1×5 GE; 1×GE |
| AirEngine 6760R-51 | 5.95 Gbps | Built-in Smart | 1×10 GE SFP+; 1×5 GE; 1×GE |
| AirEngine 6761-21 | 5.375 Gbps | Built-in Smart | 2×GE RJ45 |
| AirEngine 6761-21T | 6.575 Gbps | Built-in Smart | 1×2.5 GE; 1×10 GE SFP+ |
Specification
| Parameter | Specification |
|---|---|
| Model | AirEngine 6760-X1 |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax |
| Radio Configuration | Dual-radio: 2.4 GHz (4x4 MIMO), 5 GHz (4x4 MIMO); Upgradable to 5 GHz (8x8 MIMO) with RTU license |
| Peak Data Rate | Up to 8.35 Gbps (default), up to 10.75 Gbps (with RTU license) |
| Ethernet Ports | 1 × 10 GE electrical, 1 × GE electrical, 1 × 10 GE SFP+ |
| Antenna Type | Built-in smart antennas |
| Power Supply | PoE: IEEE 802.3bt compliant; DC: 48 V ±10% |
| Maximum Power Consumption | 35.3 W |
| Security | WPA3, WPA2, WPA, 802.1X, rogue device monitoring |
| Management | Cloud, Fit, and Fat modes; compatible with CloudCampus |
| Operating Temperature | –10°C to +50°C |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (H × W × D) | 61 mm × 220 mm × 220 mm |
| Weight | 3 kg |
| Warranty | Limited lifetime warranty |
