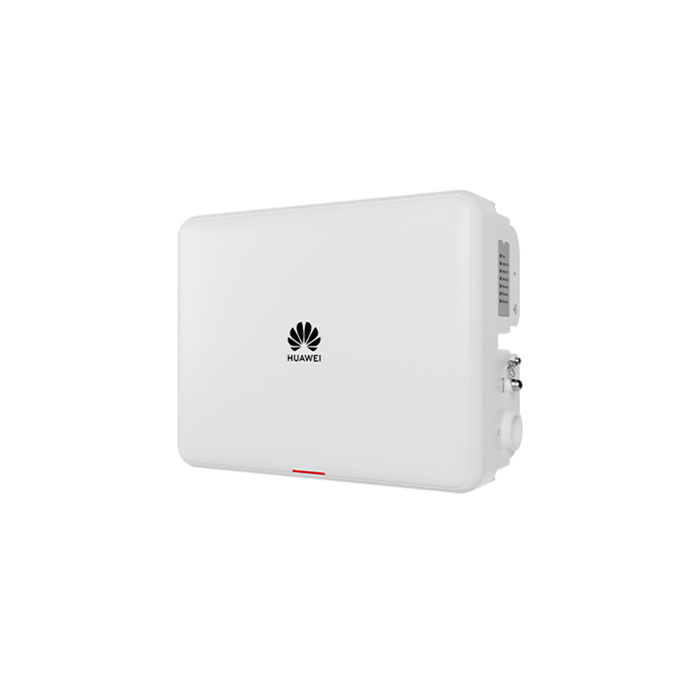

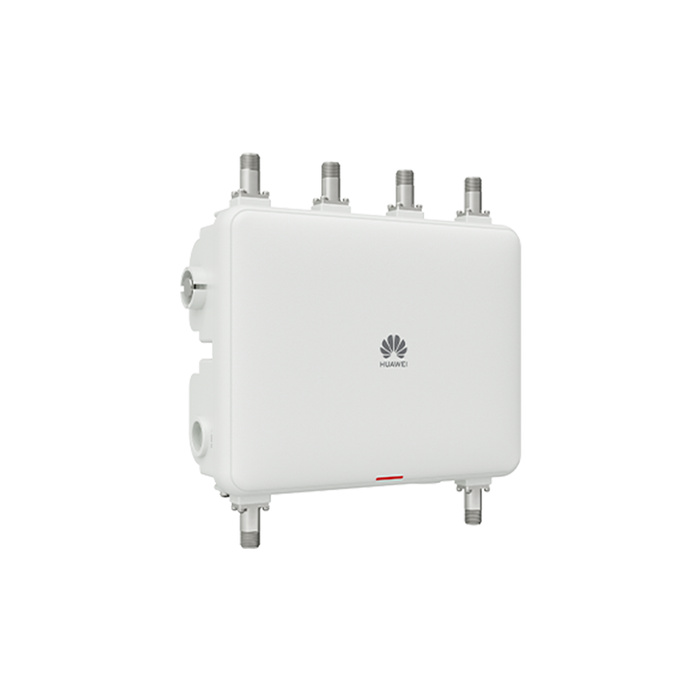

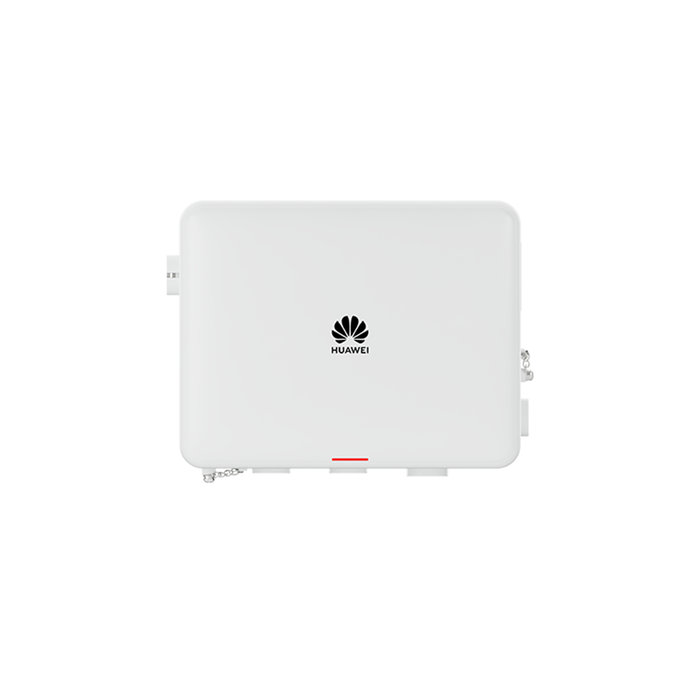

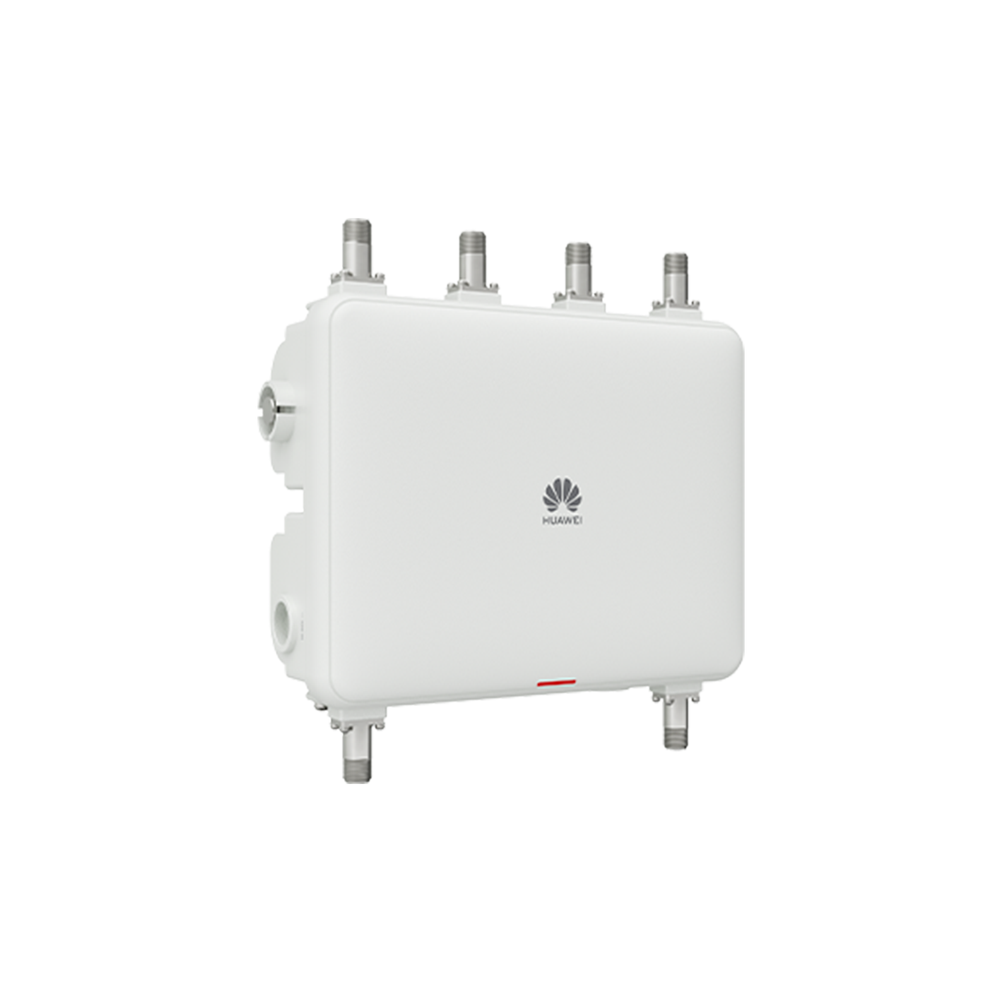

Huawei AirEngine 5776I-X6H Outdoor Wi-Fi7 Tri-Radio AP, 1 200 Clients
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei AirEngine 5776I-X6H: Outdoor Wi-Fi 7 AP with 6.45 Gbps & Directional Antennas
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The AirEngine 5776I‑X6H is a Wi‑Fi 7 (802.11be) outdoor access point with built-in directional antennas, ideal for medium-range outdoor coverage in plazas, pathways, and along stadium corridors.
It operates on 2.4 GHz (2×2 MIMO) and 5 GHz (4×4 MIMO), offering peak device throughput of 6.45 Gbps. Designed for industrial resilience, it supports IP68, -40 °C to +70 °C operation, and 6 kA/6 kV surge protection.
Overview
Highlights
-
Dual-Band Wi‑Fi 7 with 6 Spatial Streams
-
2.4 GHz: 2×2 MIMO (up to 0.69 Gbps)
-
5 GHz: 4×4 MIMO (up to 5.76 Gbps)
-
-
Directional Antennas for Focused Coverage
Antennas integrated into housing provide tailored directional coverage ideal for targeted outdoor zones. -
Rugged Outdoor Durability
With IP68 rating, -40 °C to +70 °C range, and 6 kA/6 kV surge protection over Ethernet and antenna ports. -
Flexible Uplink & Power Input
Includes 10 GE SFP+ optical uplink, 2.5 GE RJ45 PoE-In port, USB for IoT, and DC/PoE dual-feed support.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| IEEE 802.3bt/at PoE Injector | Power Supply | Provides PoE-In power via RJ45 (sold separately) |
| DC Power Adapter | Power Supply | Supports 43.2–57.6 V DC input (sold separately) |
| Outdoor Mounting Kit | Installation | Wall/mast brackets and weatherproof enclosures |
| BLE Module | IoT & Management | For asset tracking and remote O&M via Bluetooth |
Comparison with Similar Models
| Feature | 5776I‑X6H (Directional) | 5776I‑X7H (Omni) | 5776I‑X6EH (External RF) |
|---|---|---|---|
| Radios/Bands | 2.4 GHz 2×2 + 5 GHz 4×4 | Same | 2×2+4×4 or 2×2+4×4 combos |
| Spatial Streams | 6 (2 + 4) | 6 (2 + 4) | 6 |
| Peak Throughput | 6.45 Gbps | 6.45 Gbps | 7.20 Gbps |
| Antenna Type | Built-in directional | Built-in omni | External N-type connectors |
| Coverage Style | Focused directional beams | 360° uniform spread | User-selectable antennas |
| Typical Use Cases | Pathways, segments, corridors | Open plazas | Tuned outdoor scenarios |
Specifications
| Parameter | Specification |
|---|---|
| Wi‑Fi Standard | IEEE 802.11be (Wi‑Fi 7), fully backward compatible |
| Spatial Streams | 2.4 GHz: 2×2 = 2; 5 GHz: 4×4 = 4 (totalling 6) |
| Peak Data Rate | 6.45 Gbps via dual-band radios |
| Directional Antennas | Internal directional antenna pattern with ~10–11 dBi gain |
| Uplink Ports | 1×10 GE SFP+, 1×2.5 GE RJ45 PoE-In, 1×USB for IoT modules |
| Power Input | PoE-In (802.3bt/at/af) and DC 43.2–57.6 V dual-feed redundancy |
| Surge Protection | 6 kA/6 kV on Ethernet & antenna interfaces |
| Environmental Rating | IP68, –40 °C to +70 °C, up to 5,000 m altitude |
| Max Users | Supports up to 1,200 concurrent users (600 per radio) |
| Bluetooth CBLE | BLE 5.2 for commissioning via CloudCampus |
| Power Consumption | 19.2 W (excluding USB) |
| Dimensions (H×W×D) | 77 × 250 × 220 mm |
| Weight | 2.76 kg |
