- Huawei AirEngine 5776I-X6EH: Outdoor Wi-Fi 7 AP with 7.20 Gbps & External Antennas
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas

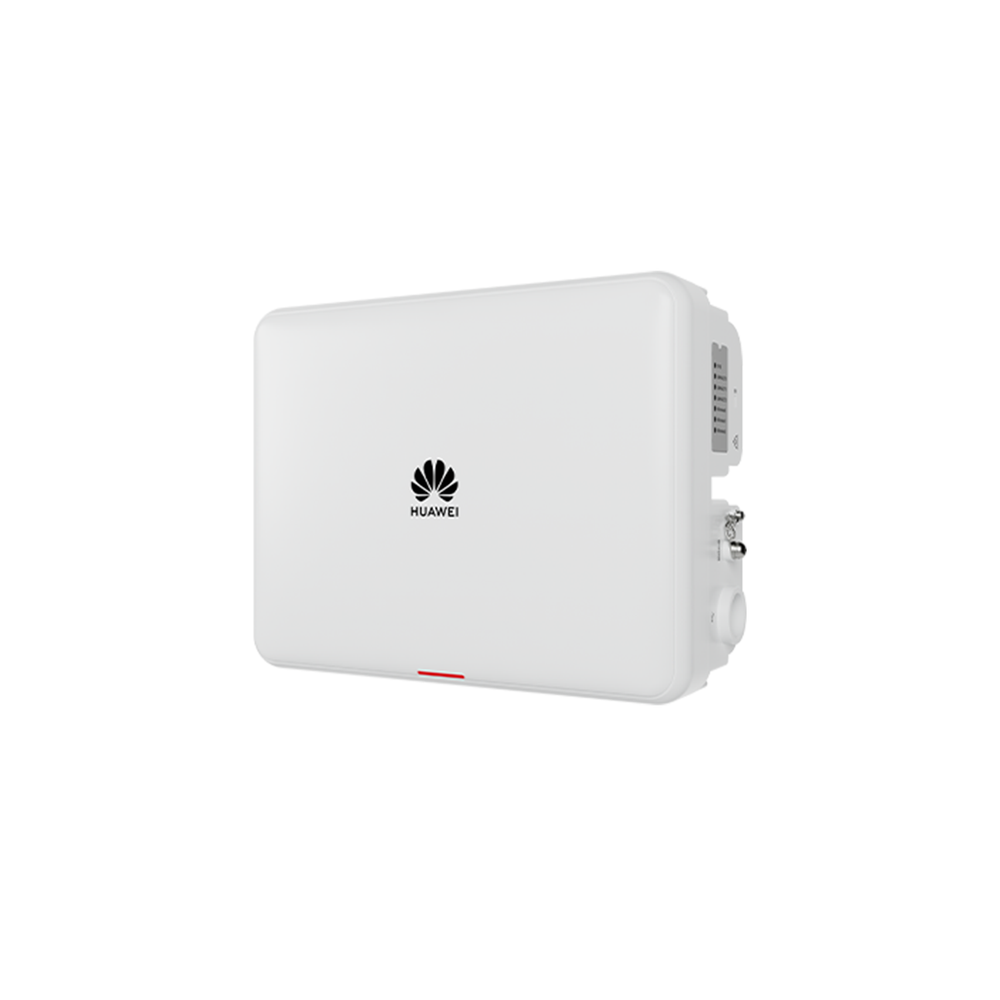

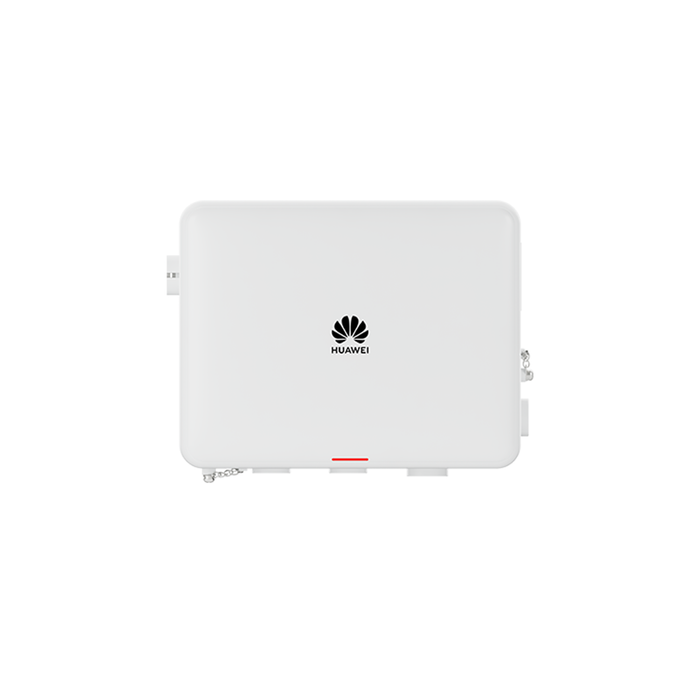

The Huawei AirEngine 5776I-X6EH is a next-generation outdoor Wi-Fi 7 (802.11be) access point that supports external antennas for flexible deployment in stadiums, plazas, and transportation hubs.
Equipped with tri-radio operation—simultaneously covering 2.4 GHz (2×2 MIMO) and dual-band 5 GHz (2×2 and 4×4 MIMO)—it delivers up to 7.20 Gbps peak device throughput.
Built for harsh environments, it features IP68 waterproof/dustproof protection, −40 °C to +70 °C operation, and 6 kA surge protection.
Overview
Highlights
-
**Tri-Radio Wi‑Fi 7 with 6 Spatial Streams**
Mode 1: 2.4 GHz (2×2) + 5 GHz (4×4) ~6.45 Gbps
Mode 2: Dual 5 GHz radios (2×2 + 4×4) ~7.20 Gbps -

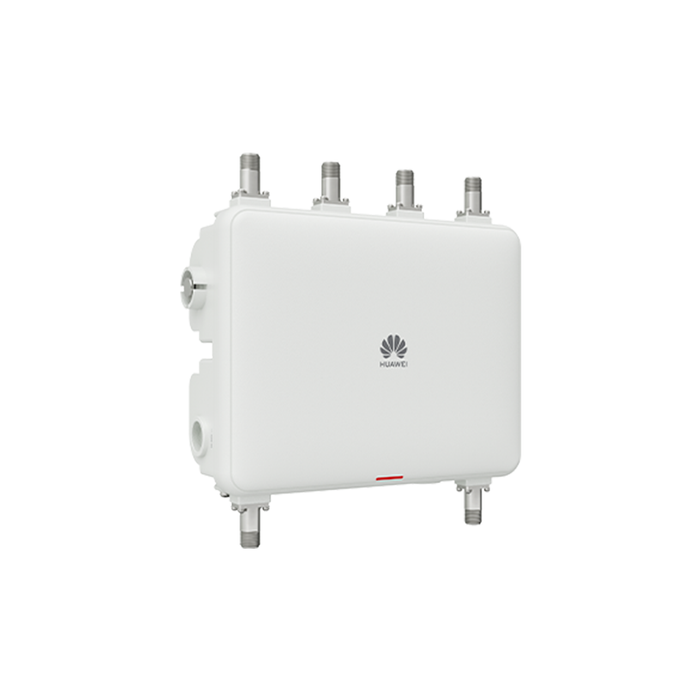

External Antenna Support
Uses N-type connectors for customizable antenna deployments, enhancing coverage and flexibility -
Industrial-Grade Durability
IP68 rating, −40 °C to +70 °C, and 6 kA/6 kV surge protection ensure reliability in harsh conditions
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| IEEE 802.3bt/at PoE Switch | Power Supply | Provides PoE-In to the AP (sold separately) |
| DC Power Adapter | Power Supply | Supports 43.2–57.6 V DC input (sold separately) |
| Mounting Kit | Installation | Brackets/casings for outdoor mounting |
| External Directional Antenna | RF Accessory | Highly directional or sector antenna options |
Comparison with Similar Models
| Feature | 5776I‑X6EH (External) | 5776I‑X6H (Directional) | 5776I‑X7H (Omni) |
|---|---|---|---|
| Radio & Spatial Streams | 2.4 GHz 2×2 + 5 GHz 4×4 (6 streams); or dual 5 GHz (2+4) | Same | Same |
| Peak Data Rate | 7.20 Gbps | 6.45 Gbps | 6.45 Gbps |
| Antenna Type | External N-connector | Built-in directional | Built-in omnidirectional |
| Antenna Flexibility | High (user-selectable) | Fixed beam | 360° outdoor coverage |
| Ideal Deployment | Custom outdoor RF layouts | Corridor/stadium coverage | Open outdoor areas |
Specifications
| Parameter | Specification |
|---|---|
| Wi‑Fi Standard | IEEE 802.11be (Wi‑Fi 7) with backward compatibility |
| Radios / Bands | Triple radio: 2.4 GHz, 5 GHz-L, 5 GHz-H (dual band mode supported) |
| Spatial Streams (MIMO) | 2.4 GHz: 2×2; 5 GHz: 2×2 & 4×4 – total 6; dual 5 GHz mode supports 6 |
| Peak Device Throughput | Mode 1: 6.45 Gbps; Mode 2: 7.20 Gbps |
| Antenna Interface | External via N-type connectors; gain per antenna varies with model |
| Power & Uplink Options | 1×10 GE SFP+; 1×2.5 GE RJ45 PoE-In; PoE-In/ DC 43.2–57.6 V redundancy |
| Surge Protection | 6 kA/6 kV on Ethernet & antenna interfaces |
| Environmental Protection | IP68; −40 °C to +70 °C; up to 5,000 m altitude |
| Max Clients | Up to 1,200 (600 per radio) |
| Dimensions (H×W×D) | 77 × 250 × 220 mm |
| Weight | ~2.97 kg |
| Bluetooth / IoT | BLE 5.2 via USB for O&M and IoT |
| Certifications | IEEE 802.11a/b/g/n/ac/ax/be, CE, FCC, etc. |
