- Huawei AirEngine 5762-17W: Wi-Fi 6 Wall-Plate AP with 2.975 Gbps, 2×2 MIMO
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas

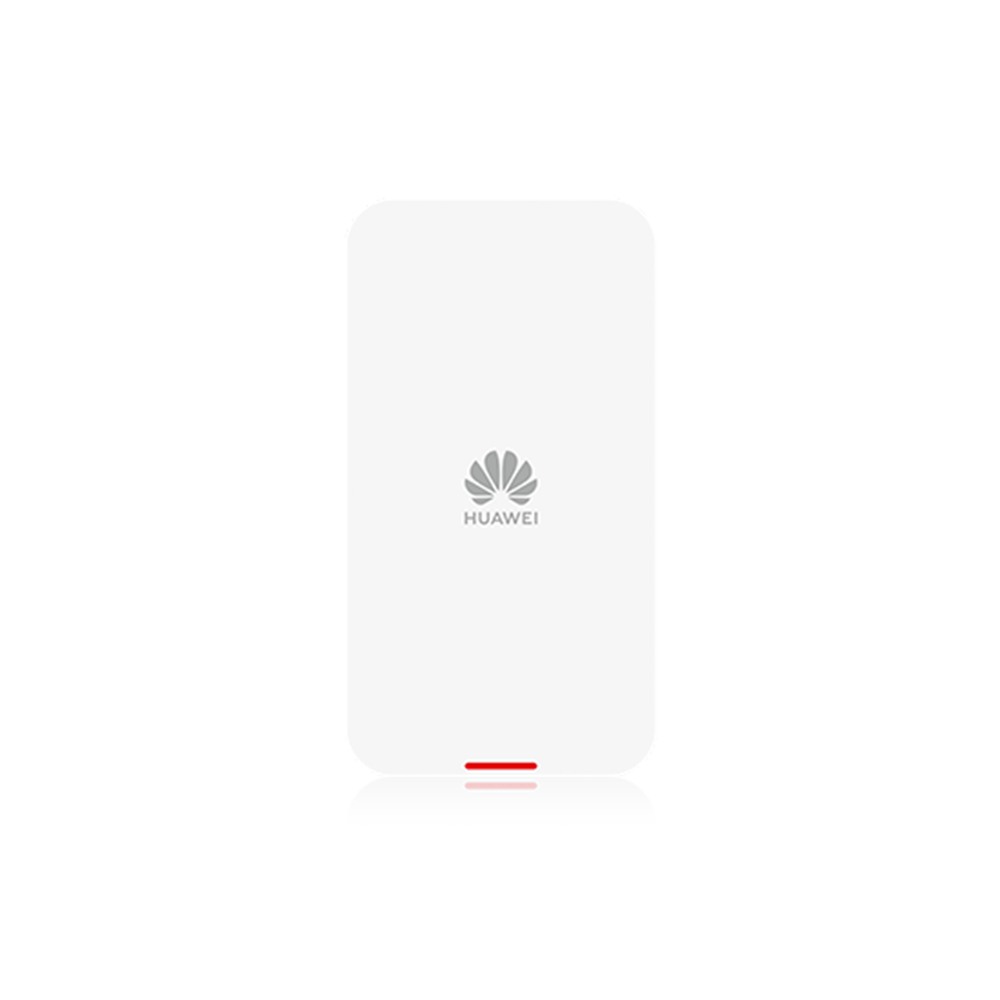

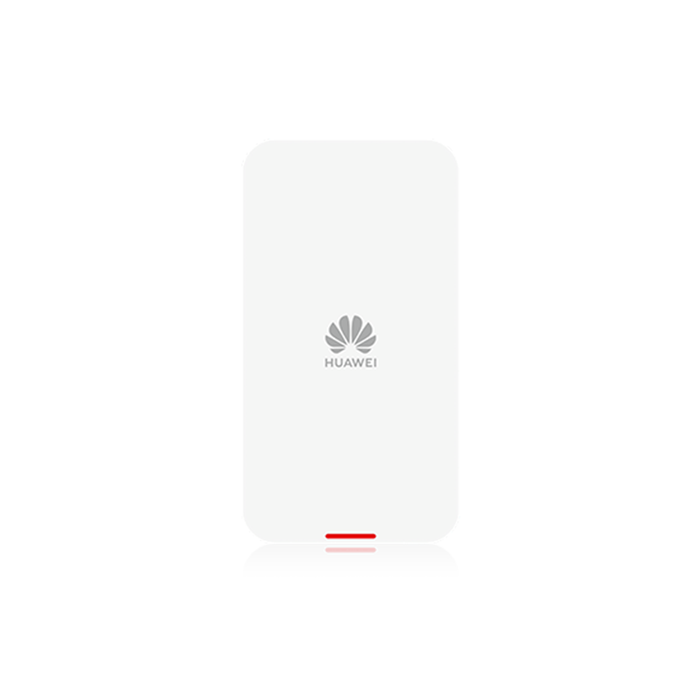

The Huawei AirEngine 5762-17W is a Wi-Fi 6 (802.11ax) wall-plate access point featuring dual-band 2×2 MIMO on both 2.4 GHz and 5 GHz bands for up to 2.975 Gbps combined throughput.
Built-in co-planar smart antennas boost signal strength by 20% and suppress interference, while one GE uplink port and four GE downlink ports eliminate bottlenecks—ideal for high-density indoor environments like hotels, hospitals, and dormitories.
Overview
Highlights
-
Dual-Band 2×2 MIMO Wi‑Fi 6
2.4 GHz radio delivers up to 575 Mbps; 5 GHz radio (with 160 MHz support) reaches up to 2.4 Gbps—total 2.975 Gbps. -
Co-Planar Smart Antennas
Built-in antennas automatically boost signal, suppress interference, and increase coverage by ~20%, eliminating coverage blind spots. -

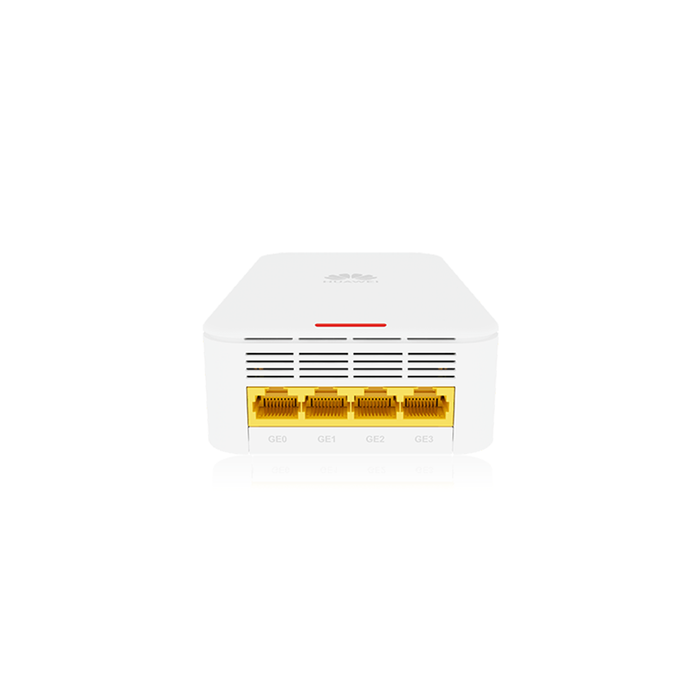

Multiple GE Ethernet Ports
Equipped with 1×GE uplink (PoE-in capable) and 4×GE downlink ports to prevent bottlenecks in wired access. -
Advanced Wi‑Fi 6 Feature Set
Includes MU‑MIMO, OFDMA, 1024‑QAM, BSS Coloring, TWT, SST, dynamic frequency assignment, roaming intelligence, and high-density optimization. -
Smart O&M & IoT Expansion
USB port supports ZigBee/RFID modules; built-in BLE (5.1) allows cloud-based device commissioning and remote management. -
Flexible Deployment Modes
Supports Fit, Fat, and Cloud operating modes with plug-and-play provisioning via Bluetooth and CloudCampus.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PoE Injector (802.3af/at) | Power Supply | Powers the uplink GE port via PoE-In |
| 12 V DC Power Adapter | Power Supply | Alternative power input where PoE isn’t available |
| Wall/T-Rail Mount Kit | Installation | Included hardware for mounting in rooms or junction boxes |
Comparison with Similar Models
| Feature | 5762–17W | 5762C–10–V2 | 5761–11W |
|---|---|---|---|
| Wi‑Fi Standard | Wi‑Fi 6 (802.11ax) | Wi‑Fi 6 | Wi‑Fi 6 |
| Spatial Streams | 2×2 + 2×2 = 4 | 2×2 + 2×2 = 4 | 2×2 + 2×2 = 4 |
| Peak Device Rate | 2.975 Gbps | 2.975 Gbps | 1.775 Gbps |
| Smart Antennas | Co-planar smart | Co-planar smart | Standard built-in |
| Ethernet Ports | 1 uplink + 4 downlinks | 1 uplink + 2 downlinks | 1 uplink + 4 downlinks |
| IoT & BLE | USB + BLE5.1 | No | BLE support |
| Ideal Use Cases | Hotels, villas, dorms | SMEs, classrooms | Budget commercial spaces |
Specifications
| Parameter | Specification |
|---|---|
| Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6) |
| Spatial Streams | 2.4 GHz: 2×2; 5 GHz: 2×2 (total 4) |
| Peak Device Throughput | 575 Mbps @2.4 GHz, 2.4 Gbps @5 GHz; total 2.975 Gbps |
| Antenna Gain | 2.4 GHz: ~2.5 dBi per chain; 5 GHz: ~3 dBi per chain |
| Ethernet Ports | 1×GE RJ45 uplink (PoE-in), 4×GE RJ45 downlinks |
| USB Port | USB 2.0 for IoT expansion (ZigBee/RFID support) |
| Power Input | IEEE 802.3af/at PoE-in or 12 V DC |
| Max Power Consumption | 15 W (excluding USB devices) |
| Physical Dimensions | 160 × 86 × 38 mm |
| Weight | 0.30 kg |
| Operating Conditions | 0 °C to +40 °C; 5–95 % RH; altitude –60 m to 5,000 m |
| Security & QoS Features | WPA3, 802.1X, WIPS/WIDS, ACL, SST, WMM, VLAN tagging, OFDMA, etc. |
