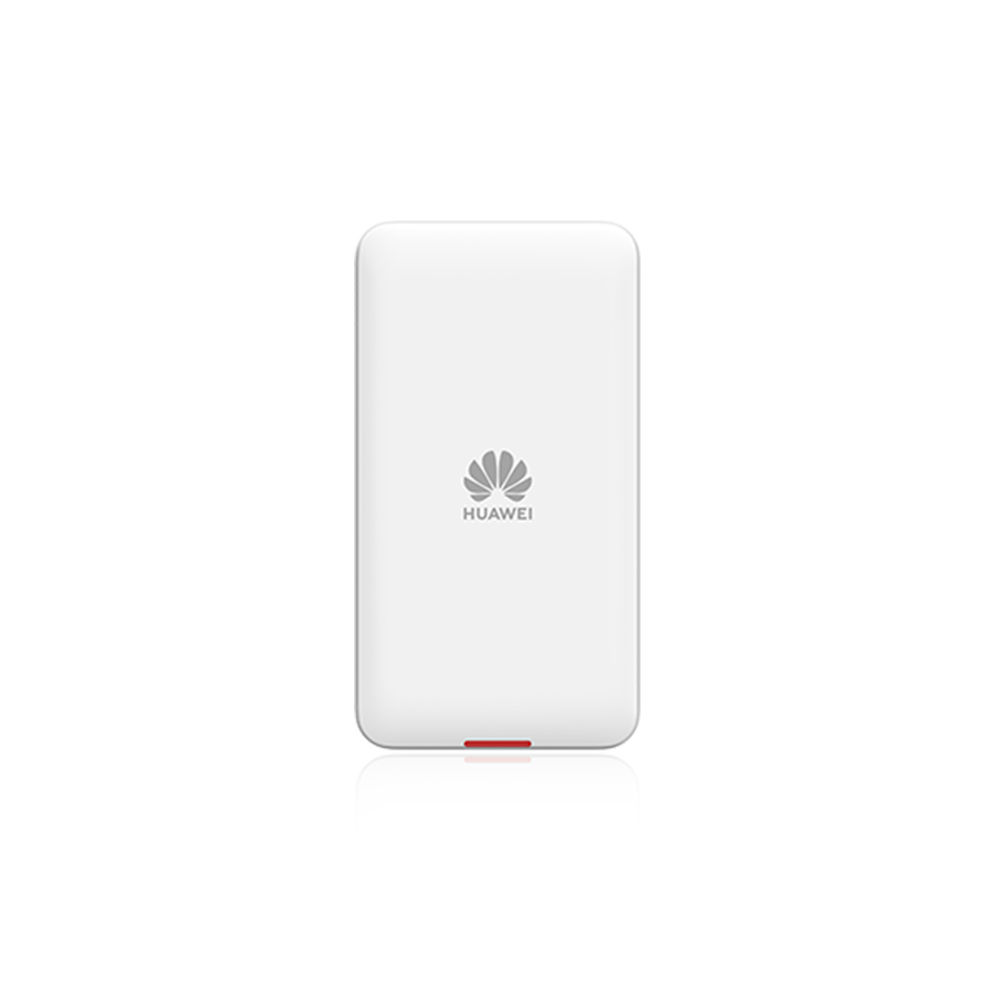

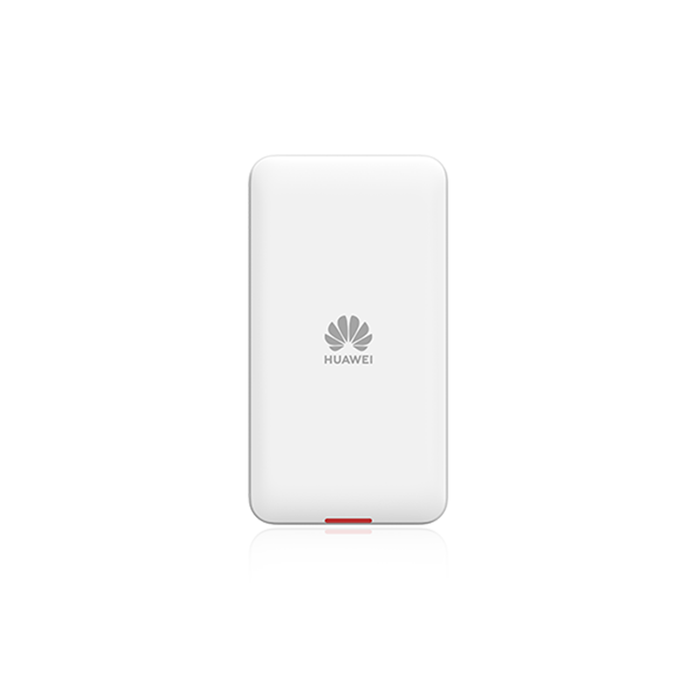

Huawei AirEngine 5762-15HW Wi-Fi 6 Wall-Plate AP, 2×2 MIMO, 2.975 Gbps
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei AirEngine 5762-15HW: Wi-Fi 6 Wall-Plate AP with Hybrid Optical Uplink & 2.975 Gbps
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The AirEngine 5762-15HW is a Wi‑Fi 6 (802.11ax) wall-plate access point designed for small-to-medium enterprises, clinics, hotels, and cafés. It features dual-band 2×2 MIMO radios (2.4 GHz + 5 GHz), delivering a peak device rate of 2.975 Gbps. It integrates built-in smart antennas, offers hybrid optical-electrical uplink to cover long distances, and supports flexible Fit/Fat/Cloud deployment modes.
Overview
Highlights
-
Dual-Band 2×2 MIMO: 2.4 GHz (575 Mbps) + 5 GHz (2.4 Gbps) = 2.975 Gbps combined.
-
Built-In Smart Antennas: Co‑planar design enhances coverage and mitigates interference, boosting stability.
-
Hybrid Optical-Electrical Uplink: 2.5 GE SFP port supports optical, hybrid, or GPON modules for extended connectivity (>1 km).
-
Multi-GE Ports: Includes 2.5 GE uplink + 4× GE downlink ports for flexible wired extensions.
-
IoT & Bluetooth O&M: Features USB port for ZigBee/RFID modules and built-in BLE console for CloudCampus management.
-
Advanced Wi‑Fi 6 Feature Set: MU‑MIMO, OFDMA, 1024-QAM, BSS Coloring, TWT, beamforming, SST, load balancing, and intelligent roaming.
-
Deployment Flexibility: Supports Fit, Fat, and Cloud modes with automatic plug-and-play and cloud-based orchestration.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PoE Injector (802.3at) | Power Supply | Powers the unit via Ethernet uplink port |
| 12 V DC Power Adapter | Power Supply | Alternative DC input for environments without PoE |
| Wall/Ceiling Mount Kit | Installation | Hardware included for wall or ceiling mounting |
| USB IoT Expansion Module | IoT Integration | Supports ZigBee, RFID, or similar via USB |
Comparison with Similar Models
| Feature | 5762-15HW | 5762C-10-V2 | 5762-17W |
|---|---|---|---|
| Peak Device Throughput | 2.975 Gbps | 2.975 Gbps | 2.975 Gbps |
| Smart Antennas | Built-in | Built-in | Built-in |
| Uplink Ports | 2.5 GE SFP (optical) + 4× GE | 1× GE + 4× GE | 1× GE + 4× GE |
| IoT/BLE Support | USB & BLE | USB only | USB & BLE |
| Ideal Use Case | SMEs, clinics, hotels | Classrooms, offices | Hotels, villas, dorms |
Specifications
| Parameter | Specification |
|---|---|
| Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6) |
| Spatial Streams (MIMO) | 2.4 GHz: 2×2; 5 GHz: 2×2 (total 4) |
| Peak Device Throughput | 575 Mbps (2.4 GHz) + 2.4 Gbps (5 GHz); 2.975 Gbps total |
| Antenna | Built-in co-planar smart antennas (peak ~2 dBi @2.4 GHz, ~3 dBi @5 GHz) |
| Uplink Port | 1×2.5 GE SFP (optical/hybrid/GPON capable) |
| Downlink Ports | 4× GE RJ45 |
| IoT & BLE Support | USB for ZigBee/RFID; BLE for CloudCampus-based O&M |
| Power Input | PoE (IEEE 802.3at/af) or 12 V DC |
| Max Power Consumption | ~15 W (excluding USB) |
| Max Users | Up to 256 concurrent clients |
| Dimensions | 160 × 86 × 45 mm |
| Weight | 0.48 kg |
| Operating Temp / Humidity | 0–40 °C; 5–95 % RH; –60 m to +5,000 m altitude |
| Security & QoS Features | WPA3/WPA2, 802.1X, WIDS/WIPS, ACL, WMM, VLAN, SST, BSS Coloring, etc. |
