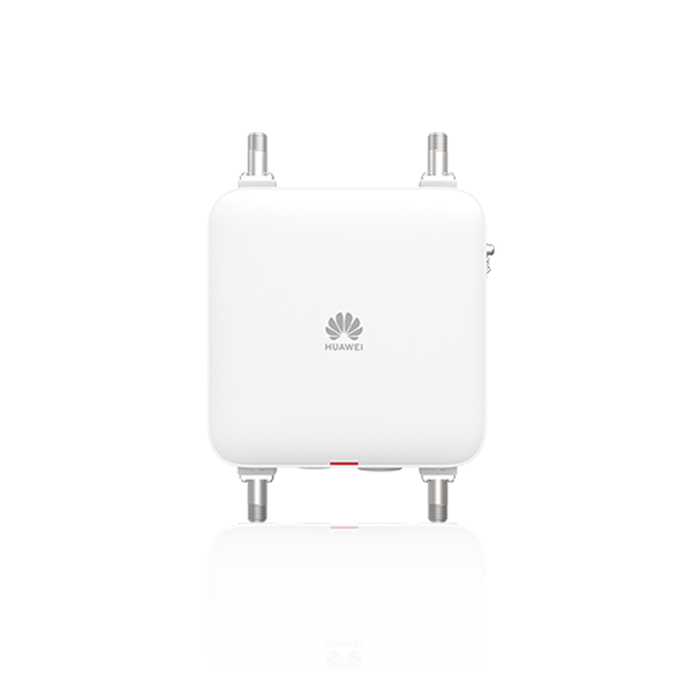

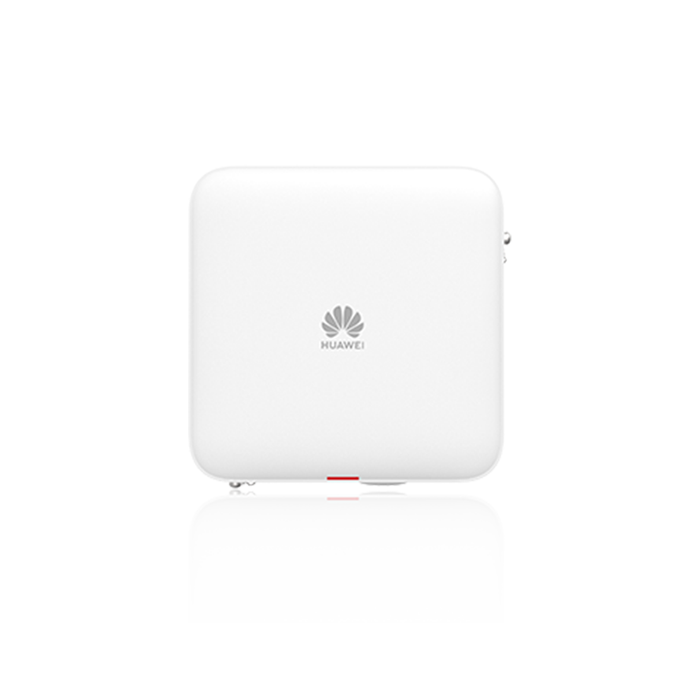

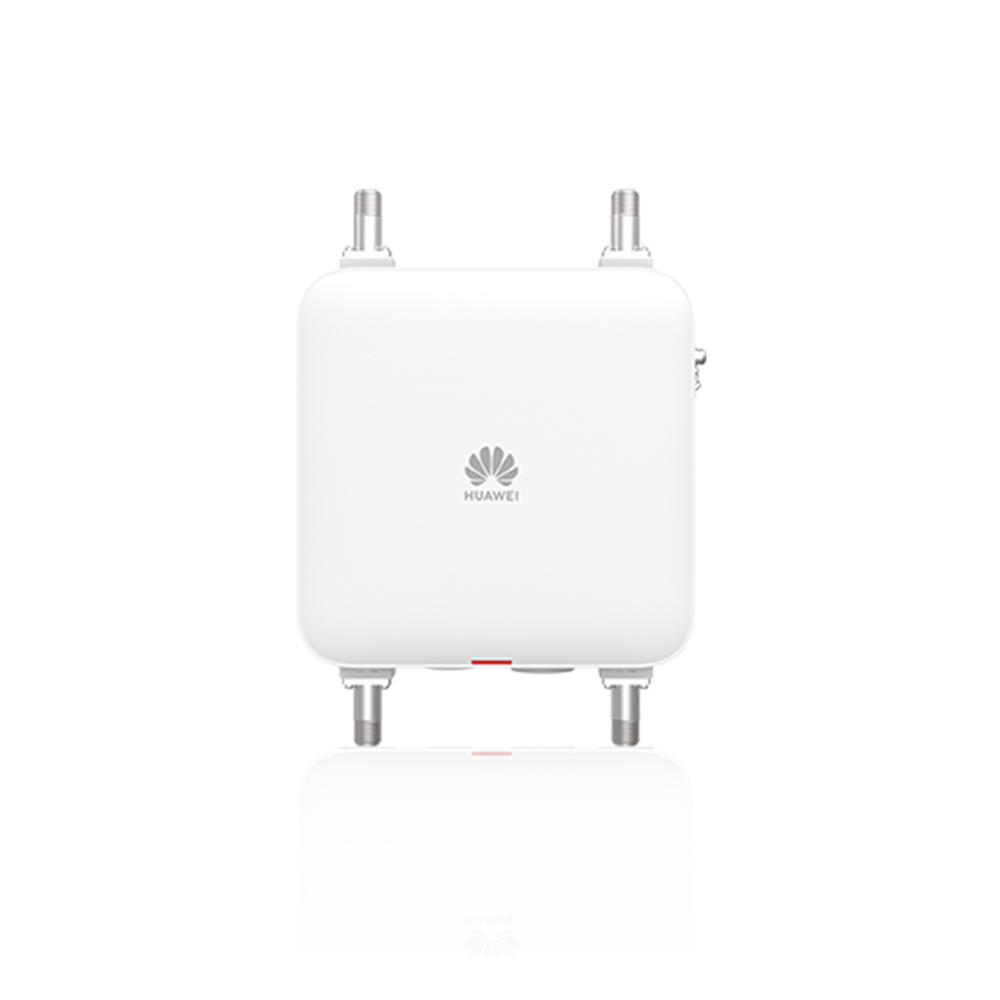

Huawei AirEngine 5761R-11 Outdoor Dual-Band 2×2 MIMO 1.775 Gbps AP
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei AirEngine 5761R-11: Outdoor Wi-Fi 6 AP with 1.775 Gbps, IP68
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The AirEngine 5761R‑11 is a rugged Wi‑Fi 6 (802.11ax) outdoor access point designed for high-density venues—such as stadiums, plazas, pedestrian streets, and parks.
It features dual-band support with 2×2 MIMO radios, delivering a device data rate of up to 1.775 Gbps. Built to withstand harsh outdoor environments, it offers IP68 dust/water protection, –40 °C to +65 °C operation, and robust surge defense (6 kA Ethernet).
The unit includes integrated directional smart antennas, dual uplink options (Gigabit electrical & SFP optical), and Bluetooth-based O&M.
Overview
Highlights
-
Dual-Band 2×2 MIMO Wi‑Fi 6
-
2.4 GHz: 2×2, up to 575 Mbps
-
5 GHz: 2×2, up to 1.2 Gbps
-
Combined peak rate: 1.775 Gbps
-
-
Built-In Directional Smart Antennas
Optimized for outdoor directional coverage, improves performance in targeted zones. -
Industrial-Grade Outdoor Design
IP68 rated, –40 °C to +65 °C, 6 kA Ethernet surge protection, metal housing and waterproof connectors. -
Flexible Dual Uplink & PoE
Includes 1×GE electrical (PoE-In) and 1×GE SFP optical uplink, supporting different deployment scenarios. -
High User Capacity & Management
Supports up to 1,024 clients, with Bluetooth O&M via CloudCampus for deployment ease.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PoE Injector (802.3at/af) | Power Supply | Supplies power via GE RJ45 PoE-In port |
| Outdoor DC Power Adapter | Power Supply | Provides an alternative DC power input if PoE isn't feasible |
| Outdoor Mounting Kit | Installation | Includes pole/wall brackets, mounting hardware, and weatherproof fittings |
| SFP Optical Module | Connectivity | Optional GE SFP transceiver module for fiber-optic uplink |
| Grounding & Surge Protection Kit | Safety | Additional grounding kit for enhanced lightning and surge protection |
Comparison with Similar Models
| Feature | 5761R‑11 (Built-in) | 5761R‑11E (External) |
|---|---|---|
| Wi‑Fi Standard | Wi‑Fi 6 (802.11ax), 4 streams | Same |
| Max Device Rate | 1.775 Gbps | Up to 2.4 Gbps with dual-5 GHz mode |
| Antenna Type | Built-in directional | External antenna connectors |
| Uplink Ports | GE electrical + optical | Same |
| Surge/Protection | IP68, 6 kA Ethernet surge | Includes 5 kA antenna surge |
| Ideal Use Case | Focused outdoor coverage | Flexible RF design with external antennas |
Specifications
| Parameter | Specification |
|---|---|
| Wi‑Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6) |
| Spatial Streams (MIMO) | 2.4 GHz: 2×2; 5 GHz: 2×2 — total 4 streams |
| Peak Device Throughput | 1.775 Gbps (0.575 + 1.2 Gbps) |
| Antennas | Built-in directional smart array |
| Uplink Ports | 1×GE RJ45 PoE-In; 1×GE SFP optical |
| Power Input | 802.3at/af PoE (max power 17.7 W) |
| Surge Protection | 6 kA on Ethernet; IP68-rated |
| Max Users | 1,024 simultaneous |
| Operating Conditions | –40 °C to +65 °C; IP68 water/dust; up to 5,000 m altitude |
| Dimensions (HxWxD) | 69 × 200 × 200 mm |
| Weight | ~1.9 kg |
| Bluetooth | BLE console for O&M via CloudCampus |
