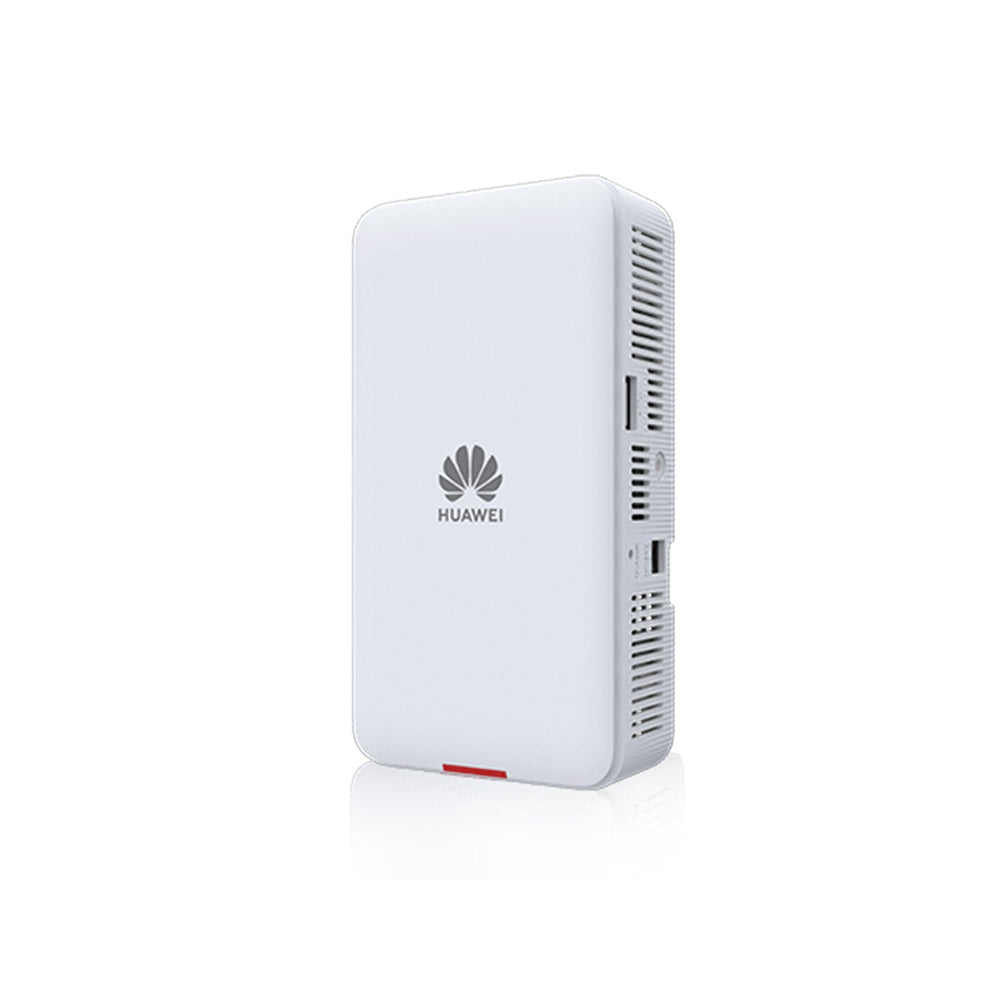

Huawei AirEngine 5761-11WD Wi-Fi 6 AP, 2×2 MIMO & Smart Antenna
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Huawei AirEngine 5761-11WD: Wi-Fi 6 Wall-Plate RU with 1.775 Gbps, 512-User Capacity
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Huawei AirEngine 5761-11WD is a high-performance Wi-Fi 6 (802.11ax) remote unit (RU) access point designed to deliver robust and reliable wireless connectivity in indoor environments such as hotel rooms, dormitories, and hospital wards.
With its dual-radio design and advanced features, the AirEngine 5761-11WD ensures seamless user experiences and efficient network management.
Overview
Highlights
-
Dual-Radio Design: Supports simultaneous dual-band operation with 2x2 MIMO on both 2.4 GHz and 5 GHz bands, achieving a combined peak data rate of up to 1.775 Gbps.
-
Advanced Wireless Technologies: Incorporates Wi-Fi 6 features such as OFDMA, MU-MIMO, 1024-QAM, and BSS Coloring, enhancing efficiency and reducing latency in high-density environments.
-
Smart Antenna Technology: Built-in smart antennas automatically adjust coverage direction and signal strength, providing precise and stable coverage as clients move.
-
Flexible Deployment: Supports both DC and PoE power supply modes (IEEE 802.3af/at), catering to diverse installation requirements.
-
Enhanced Security: Offers robust security features including WPA3 encryption, 802.1X authentication, and rogue device monitoring, ensuring network integrity.
-
Intelligent Management: Compatible with Huawei’s CloudCampus platform and supports multiple management modes (Cloud / Fit / Fat) for simplified operations and maintenance.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| AP5761-11WD | Remote Unit (RU) | Wall-plate RU with Smart Antennas |
| L-AP5761-11WD-1AP | 1-RU License | License to manage 1 RU |
| L-AP5761-11WD-10AP | 10-RU License | License to manage up to 10 RUs |
Comparison with Similar Models
| Model | Max Device Rate | Ports |
|---|---|---|
| AirEngine 5761-11WD | 1.775 Gbps | 1×GE uplink; 4×GE downlink; 2×RJ45 passthrough; USB |
| AirEngine 5760-22W | 5.37 Gbps | 1×2.5 GE; 1×10 GE SFP+; 4×GE; USB |
| AirEngine 5761-11 | 1.775 Gbps | 1×GE; USB |
| AirEngine 5761-21 | 5.375 Gbps | 2×GE |
| AirEngine 5762S-12 | 2.975 Gbps | 1×GE; USB; wall-plate |
Specification
| Parameter | Specification |
|---|---|
| Model | AirEngine 5761-11WD |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax |
| Radio Configuration | Dual-radio: 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) |
| Peak Data Rate | Up to 1.775 Gbps |
| Ethernet Ports | 1 × GE uplink port, 4 × GE downlink ports, 2 × RJ45 pass-through ports |
| Antenna Type | Built-in smart antennas (2.4 GHz: 2.5 dBi, 5 GHz: 3 dBi) |
| Power Supply | DC: 12 V ±10%; PoE: IEEE 802.3af/at compliant |
| Maximum Power Consumption | 12.7 W (excluding USB) |
| Security | WPA3, WPA2, WPA, 802.1X, rogue device monitoring |
| Management | Cloud, Fit, and Fat modes; compatible with CloudCampus |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (H × W × D) | 160 mm × 86 mm × 38 mm |
| Weight | ≤ 0.3 kg |
| Warranty | Limited lifetime warranty |
